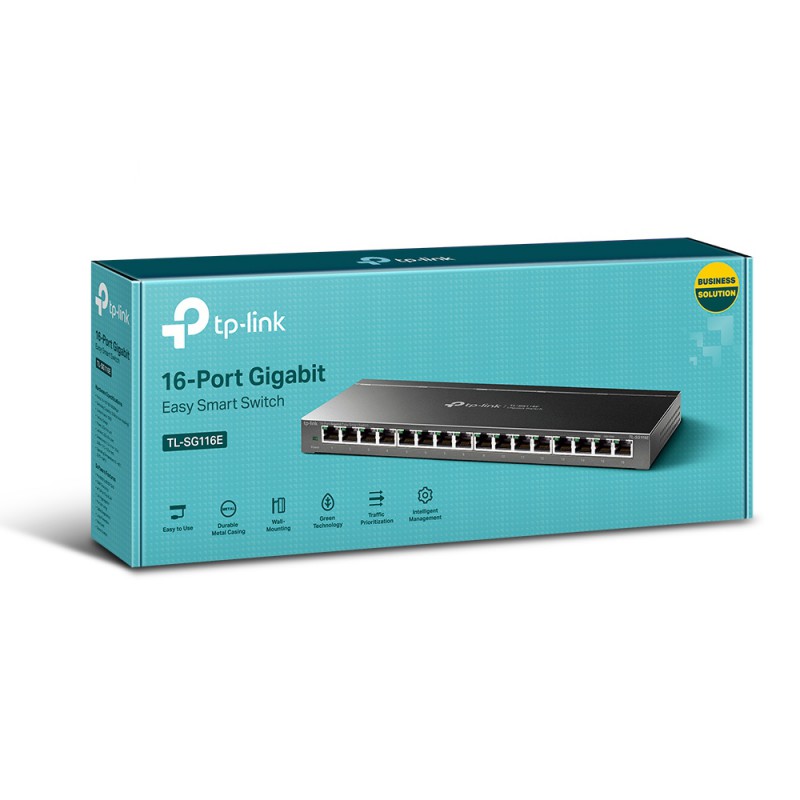

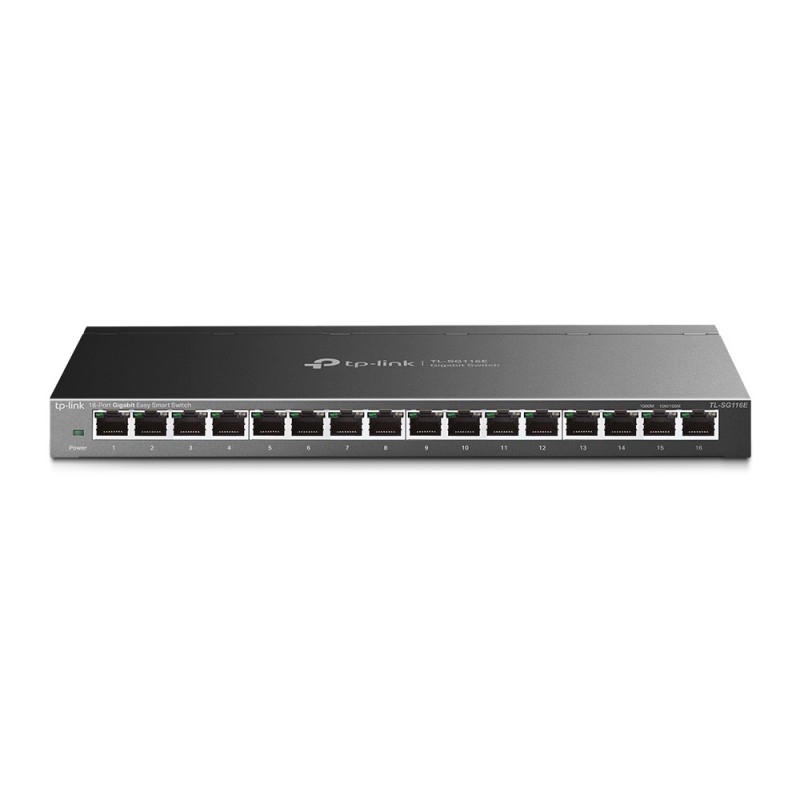

TL-SG116E 16-Port Gigabit Easy Smart Switch

Switches

Product reference: KSTSSG116E

16 10/100/1000Mbps RJ45 ports

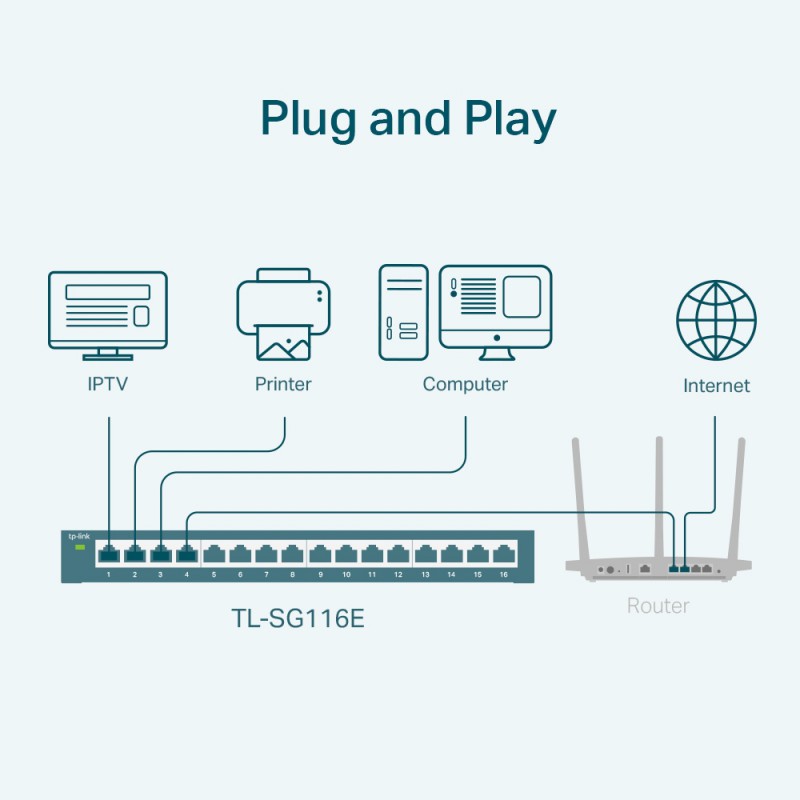

Plug and play, with no configuration required

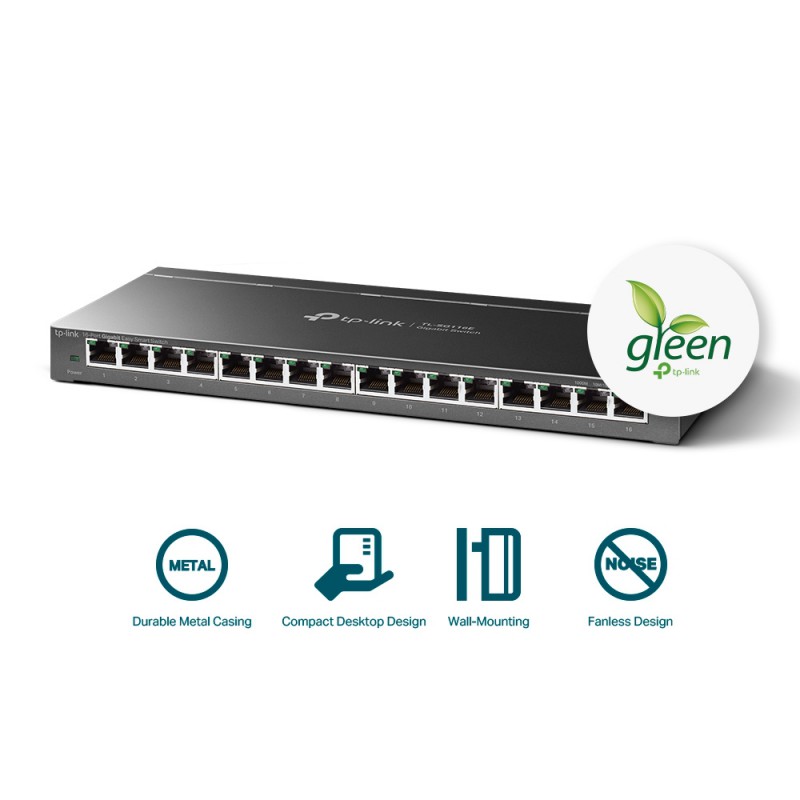

Durable metal casing of superior quality and professional appearance
Intelligent management via a web user interface and downloadable utility
Green technology reduces power consumption

At stores prices may vary

Price:

€73.80

€60.99 tax excl.

Favourite

We have 2 pcs
Delivery in 1 business days

Product information

Increase Your Network Speed and Save Energy with 16-Port Gigabit Desktop Switch TL-SG116E.

Link Your Devices, Create Convenient Business. The 16-Port Gigabit Easy Smart Desktop Switch provides an easy way to expand your wired network. Deal with your business quickly and easily, whether you are at home or in the office.

Gigabit Ports for Maximum Speed. 16 non-blocking 10/100/1,000 Mbps ports make it possible to transfer large, bandwidth-intensive files with no interference.

Management Made Easy. TL-SG116E offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG116E offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.

Specifications:

HARDWARE FEATURES
Standards and Protocols	IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
Interface	16 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX
Network Media	10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m
Fan Quantity	Fanless
Power Supply	External Power Adapter(Output: 12VDC/1.0A)
Dimensions ( W x D x H )	286 × 111.7 × 25.4 mm
Max Power Consumption	9.19W(220V/50Hz)
Max Heat Dissipation	31.36BTU/h
PERFORMANCE
Switching Capacity	32Gbps
Packet Forwarding Rate	23.81Mpps
MAC Address Table	8K
Packet Buffer Memory	4.1Mb
Jumbo Frame	9KB
SOFTWARE FEATURES
Quality of Service	Support Port-based/802.1p/DSCP priority Support 4 priority queues Rate Limit Storm Control
L2 Features	IGMP Snooping V1/V2/V3 Static Link Aggregation Port Mirroring Cable Diagnostics Loop Prevention
VLAN	Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLAN
Transmission Method	Store-And-Forward
OTHERS
Certification	FCC, CE, RoHS
Package Contents	TL-SG116E Power Cord Installation Guide Rubber Feet
System Requirements	Microsoft® Windows® for running Utility
Environment	Operating Temperature: 0℃~40℃ Storage Temperature: -40℃~70℃ Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing

Features

Incoming Bandwidth	10/100/1000
Ports	16
Features	Unmanaged
Features	Gigabit
