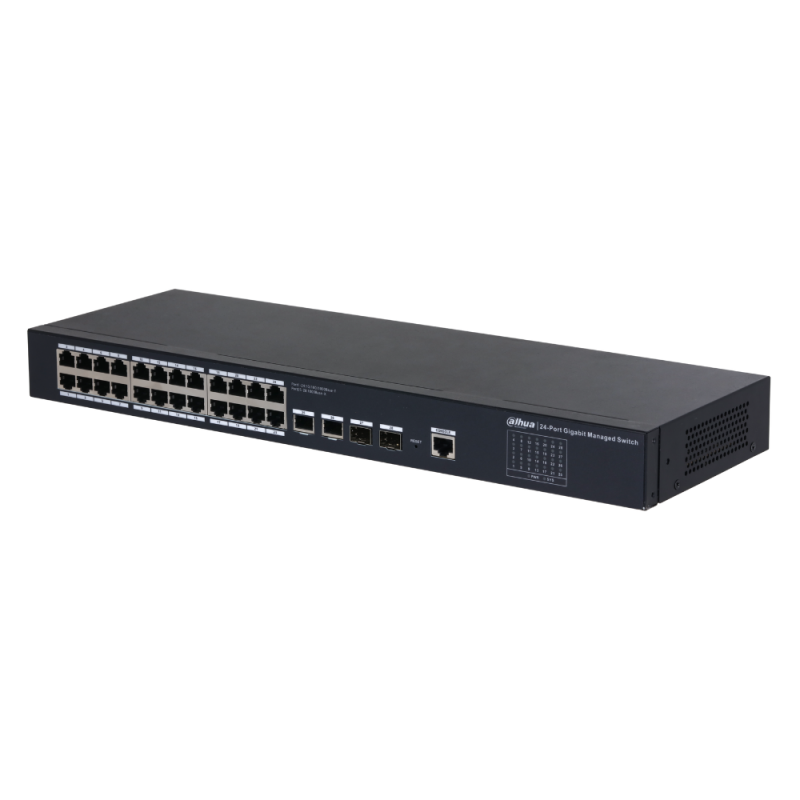

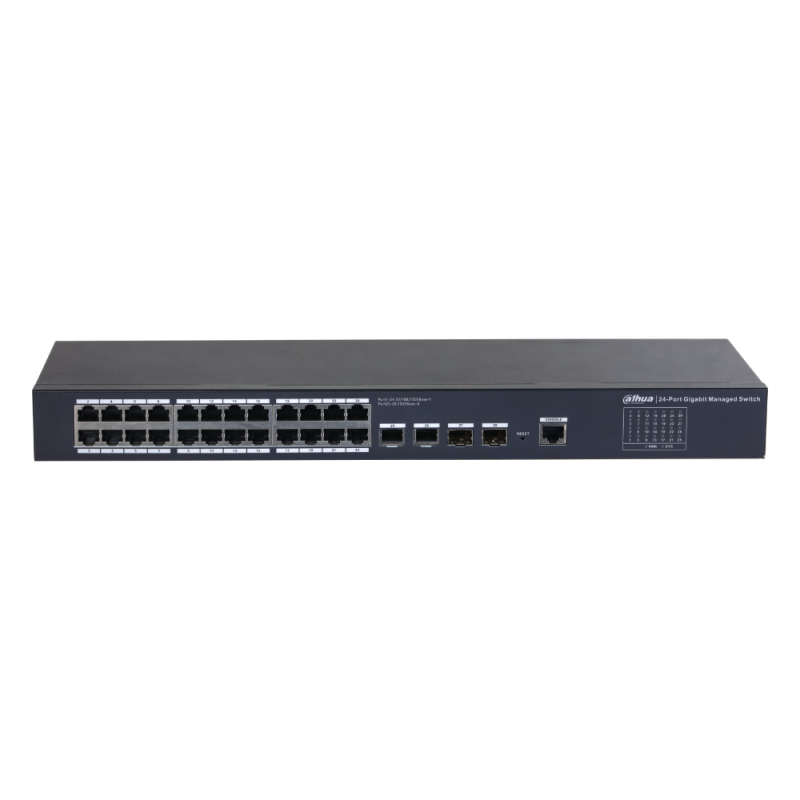

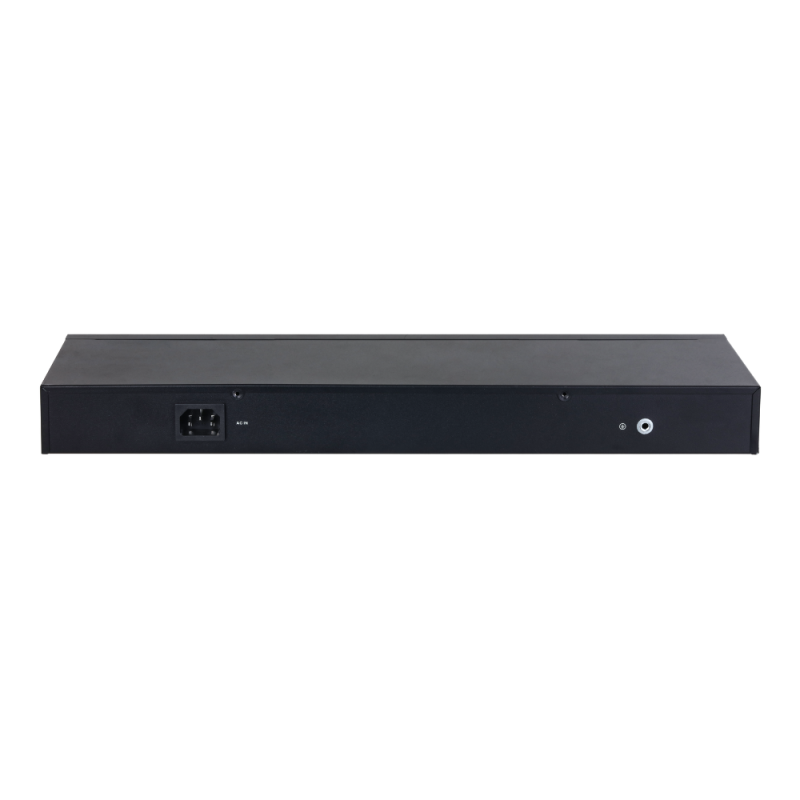

Dahua Access Switch SG4028

Switches

Product reference: KSSG4028

28-Port Managed Gigabit Switch

This device supports web-based management for easy configuration. It is compatible with both STP and RSTP protocols, ensuring network stability. Link aggregation is supported through both manual setup and static LACP protocol. Each Ethernet port is self-adaptive, supporting speeds of 10/100/1000 Mbps. Designed to be highly integrated, the switch is compact, user-friendly, and easy to install.

At stores prices may vary

Price:

€154.88

€128.00 tax excl.

Favourite

In manufacturer warehouse
Ask

Product information

Dahua Access Switch SG4028

Hardware

Performance
Included Power Adapter		Yes
Ethernet Ports		26
Optical Ports		2
Ethernet Port Speed		10/100/1000 Mbps
Optical Port Speed		1000 Mbps
Description of Function Slots		Ports 1–26: 26 × RJ45 10/100/1000 Mbps Ports 27–28: 2 × SFP 1000 Mbps
Console Port		1
Reset Button		1
Power Supply		12 VDC
Operating Temperature		–10°C to +55°C
Operating Humidity		10%–90% (RH)
Storage Temperature		–40°C to +75°C
Storage Humidity		5%–95% (RH)
Power Consumption		Idle: ≤ 6 W; Full Load: 24 W
MTBF		467125.73 hours
Switching Capacity		56 Gbps
Packet Forwarding Rate		41.664 Mpps
Packet Buffer Size		4.1 Mbit
Jumbo Frame		10K Byte
MAC Table Size		8K
VLAN Number		4K
VLAN Interface		10
Communication Standard		IEEE 802.3x
Features
Spanning Tree Protocol		STP, RSTP
VLAN Function		Yes
Link Aggregation		Static; LACP
Flow Control		IEEE 802.3X (full-duplex)
Multicast		IGMP Snooping
DHCP Functions		Client, Server, Snooping
Security
IEEE 802.1x		Yes
Management
WEB Interface		HTTP, HTTPS
General
Static Protection		Air: 8 kV; Contact: 6 kV
Lightning Protection		Common mode: 2 kV; Differential mode: 1 kV
Net Weight		1.57 kg
Gross Weight		2.25 kg
Product Dimensions		440 × 163.85 × 43.65 mm
Packaging Dimensions		520 × 271 × 107 mm
Certifications		CE

Features

Incoming Bandwidth	10/100/1000
Ports	28

Manufacturer

Dahua Technology is a world-leading video-centric AIoT solution and service provider. With its ‘Dahua Think#’ corporate strategy, Dahua Technology focuses on two core businesses: City and Enterprise. The company firmly strengthens its technological strategies that include AloT and IoT digital intelligence platforms, comprehensively promoting the digital intelligence upgrading of cities and enterprises based on customer needs, and creating more value for the digital-intelligent transformation of various industries.
