CS4006-4GT-60 Switch Dahua

Switches

Product reference: KSCS4006-4GT-60

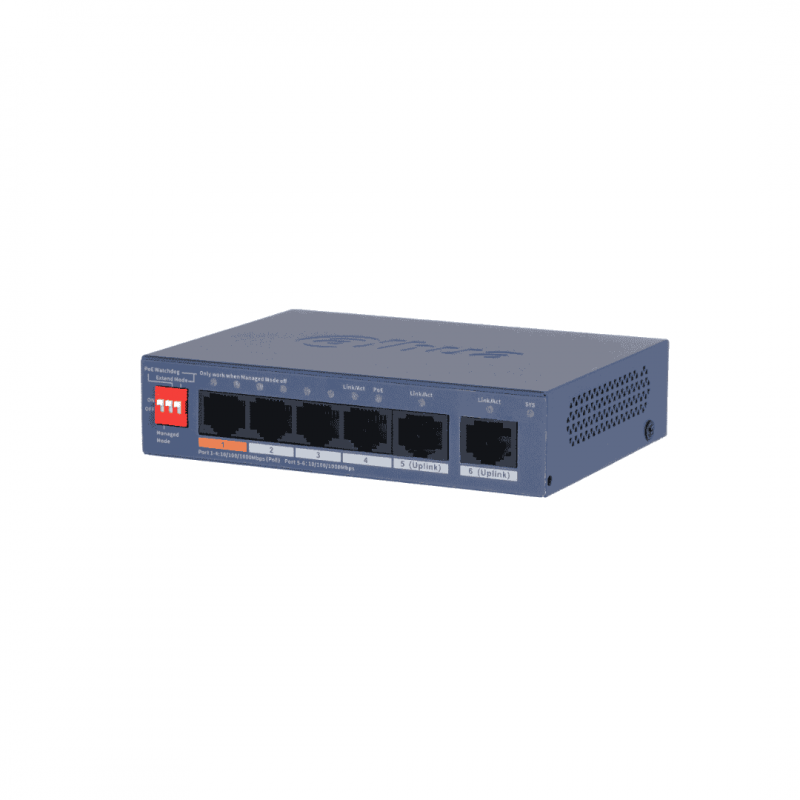

6-Port Cloud Managed Desktop Gigabit Switch with 4-Port PoE

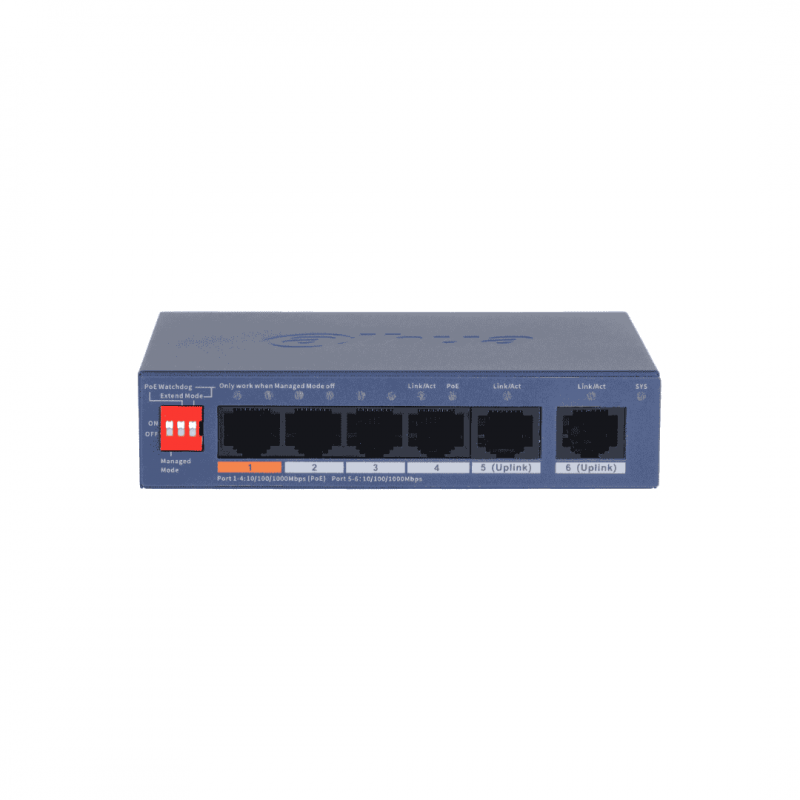

> 4 × RJ45 Gigabit PoE ports, 2 × RJ45 Gigabit ports.

> 60 W total PoE budget, 802.3af/at on all PoE ports, additional Hi-PoE on orange port.

> DIP switch to fast turn on/off working mode of Cloud-Managed, PoE Watchdog, Long Distance PoE.

> Wide operating temperature ranging from –10 °C to 55 °C.

> Supports VLAN and loop protection.

> WEB-managed and centralized cloud management through the DoLynk App and performs real-time monitoring of the network.

> Easy config to auto detect and set up network and systems.

At stores prices may vary

Price:

€108.90

€90.00 tax excl.

Favourite

We have 1 qty.
Delivery in 1-2 business days

Product information

CS4006-4GT-60 Switch Dahua

Functions

Cloud Management
Devices can be managed through the DoLynk Care app, which also performs real-time network monitoring. The app displays device status, triggers alarms for errors, and sends notifications.

Network Topology Management
Supports the LLDP protocol and can generate and display network topology. This allows quick issue identification and remote operation and maintenance on devices within the topology.

Long Distance PoE
The transmission distance of a PoE port can reach up to 250 m, meeting wired transmission requirements (bandwidth reduced to 10 Mbps).

Technical Features

4 × RJ45 Gigabit PoE ports, 2 × RJ45 Gigabit ports.
60 W total PoE budget, 802.3af/at on all PoE ports, additional Hi-PoE on the orange port.
DIP switch for fast on/off of Cloud-Managed, PoE Watchdog, and Long Distance PoE modes.
Wide operating temperature: –10 °C to +55 °C.
Supports VLAN and loop protection.
WEB-managed and centralized cloud management via DoLynk app with real-time network monitoring.
Easy auto-detection and setup for network and systems.

PoE Watchdog
Automatically monitors port status and restarts failed ports to recover the connection in case of IPC connection issues. This effectively reduces manual maintenance costs.

Loop Protection
When a loop is detected, a loop alarm is triggered, and the elimination mechanism activates to prevent broadcast storms.

Managed Mode ON/OFF
Easily switch between managed and unmanaged mode with the DIP switch. In managed mode, devices can be managed via the local web interface or cloud platform, allowing seamless adaptation to various scenarios.

Scene
Suitable for use in homes, factories, offices, and similar environments.

Basic Information
Layer	Layer 2
Switching Capacity	12 Gbps
Packet Forwarding Rate	8.9 Mpps
Ports
Port 1-4	4 × RJ-45 10/100/1000 Mbps (PoE)
Port 5-6	2 × RJ-45 10/100/1000 Mbps (uplink)
Operating Conditions
Operating Temperature	–10 °C to +55 °C
Operating Humidity	10%–90% RH, non-condensing
Storage Temperature	–40 °C to +70 °C
Storage Humidity	5%–95% RH, non-condensing
Power
Power Supply	External: 53 VDC, 0.8 A
Power Consumption	Idling ≤3 W, Full Load 65 W
Protection
Static Protection	Air discharge 8 kV, Contact discharge 6 kV
Lightning Protection	Common mode 6 kV
Physical
Net Weight	0.2 kg
Gross Weight	0.76 kg
Product Dimensions	115 × 84 × 27 mm (L × W × H)
Packaging Dimensions	195 × 114 × 83 mm (L × W × H)
Casing Material	Sheet metal
Installation	Desktop or wall mount
PoE
PoE	Yes
PoE Power	Port 2-4 ≤30 W, Port 1 ≤60 W, Total ≤60 W
PoE Protocol	IEEE802.3af / IEEE802.3at / Hi-PoE
PoE Management	Power consumption management; PoE on/off; shuts off if overload detected
PoE Pin Assignment	1,2,4,5 (V+), 3,6,7,8 (V-)
Long Distance PoE	Yes
Hardware
DIP Switch	Managed Mode default on; PoE Watchdog auto-restarts ports; Extend Mode up to 250 m @ 10 Mbps
Reset Button	1
Performance
MTBF	232.62 years
Packet Buffer Size	4 Mbit
Jumbo Frame	9216 Bytes
MAC Table	2K
Communication Standard	IEEE 802.3, 802.3u, 802.3x, 802.3ab, 802.3az
VLAN	32
Features
VLAN Function	IEEE 802.1Q VLAN
Port Features	Flow Control, Unknown Unicast Suppression, Multicast/Broadcast Storm Control, MAC+Port Binding, Loop Prevention
Mirror	N:1 Mirroring; Local Port Mirroring
Reliability & Management
LLDP	Yes
DHCP Function	DHCP Client
Port Isolation	Yes
Equipment Management	Web Management, Cloud Management, Logs, Fault Alarm
Package Contents
Included	1 × Quick Start Guide, 1 × Legal & Regulatory Info, 1 × Power Adapter, 1 × Power Cord

Features

Incoming Bandwidth	10/100/1000
Ports	6
PoE ports	4
