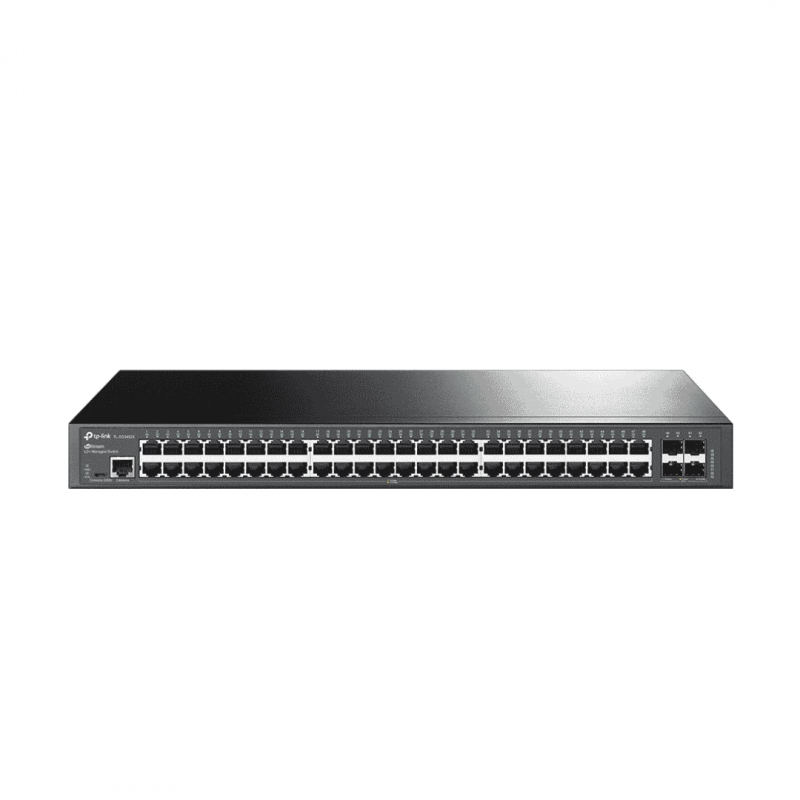

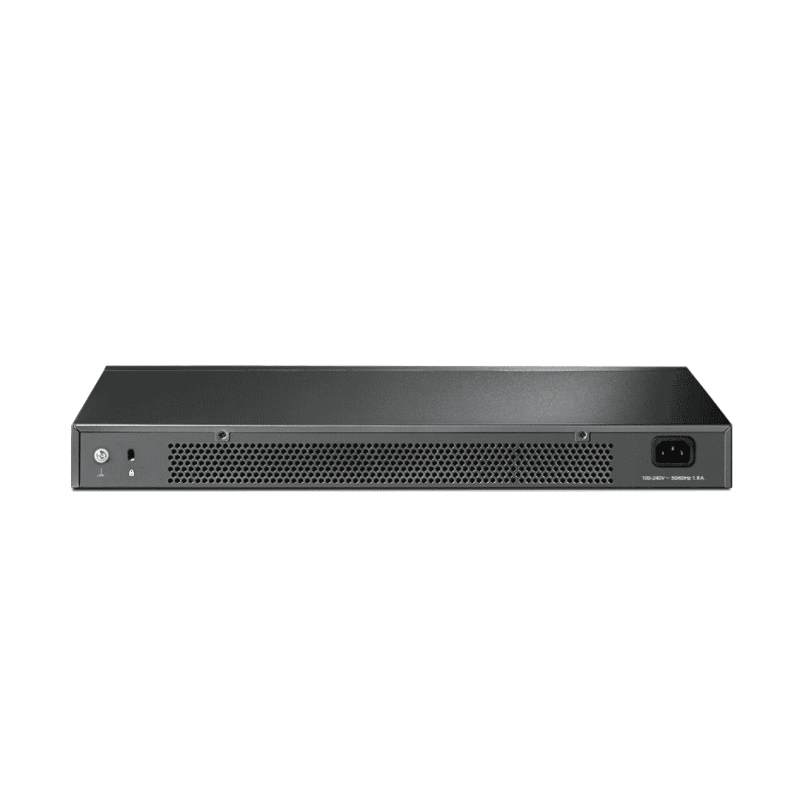

Omada TL-SG3452X 48-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots

Switches

Product reference: KSTL-SG3452X

10G lightning-fast uplink: 4 × 10 Gbps SFP+ slots provide high bandwidth and non-blocking switching. 48 × Gigabit RJ45 ports ensure fast and stable connections. Integrated into Omada SDN with ZTP, cloud management, and intelligent monitoring. Centralized management via Omada app and cloud platform. Static routing improves internal traffic efficiency. Advanced security: IP-MAC-Port Binding, ACL, Port Security, DoS protection, DHCP Snooping, 802.1X, RADIUS authentication. L2/L3/L4 QoS and IGMP snooping optimize voice and video. Supports Web, CLI, SNMP, RMON, and Dual Image management.

At stores prices may vary

Price:

€519.09

€429.00 tax excl.

Favourite

In manufacturer warehouse
Ask

Product information

Omada TL-SG3452X 48-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots

Secure Networking

Security features include IP-MAC-Port-VID Binding, Port Security, Storm Control, and DHCP Snooping to protect against various network threats. An integrated list of common DoS attacks helps prevent attacks easily. Access Control Lists (ACL, L2–L4) restrict access to sensitive network resources by filtering packets based on MAC address, IP address, TCP/UDP ports, or VLAN ID. Network access can be controlled via 802.1X authentication with RADIUS/Tacacs+ servers, allowing access only to valid users.

Enterprise Level Features

A full range of L2+ features is supported, including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping intelligently forwards multicast streams only to intended receivers, reducing unnecessary traffic. IGMP throttling and filtering prevent unauthorized multicast access per port. Static Routing enables efficient network segmentation and internal traffic routing.

Advanced QoS

Voice and video traffic can be prioritized based on IP address, MAC address, TCP/UDP ports, and more. QoS ensures smooth performance even under limited bandwidth conditions.

ISP Features

Supports sFlow, QinQ, L2PT PPPoE ID Insertion, and IGMP authentication for service providers. 802.3ah OAM and DLDP provide easy Ethernet link monitoring and troubleshooting.

IPv6 Support

Includes Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, PMTU Discovery, and IPv6 Neighbor Discovery, ensuring readiness for next-generation networks.

Hardware Features

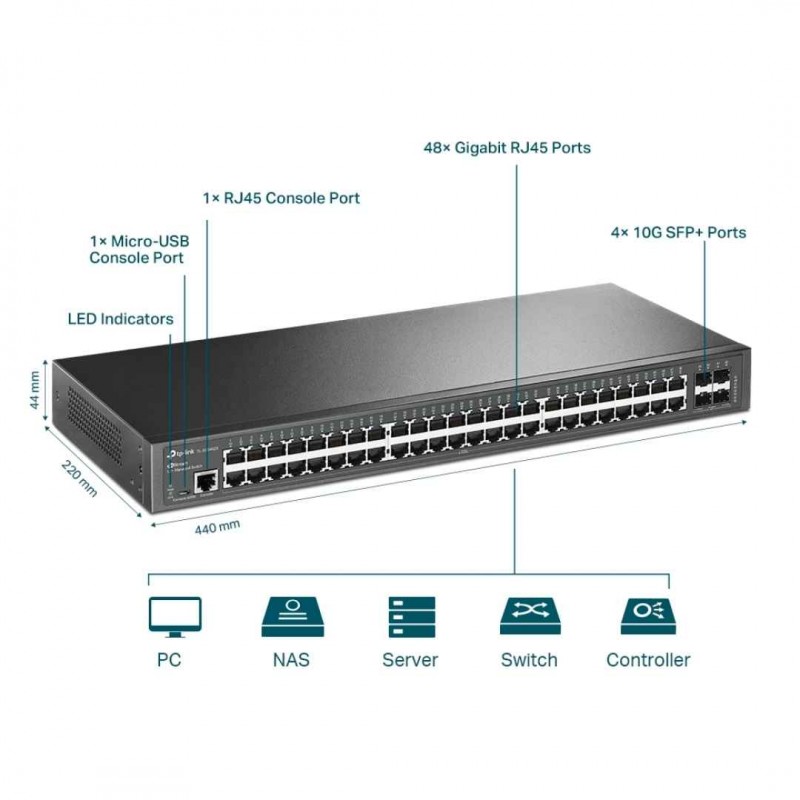

Interface	48 × 10/100/1000 Mbps RJ45 ports 4 × 10G SFP+ slots 1 × RJ45 console port 1 × Micro-USB console port
Fan Quantity	Fanless
Power Supply	100–240 V AC, 50/60 Hz
Dimensions	440 × 220 × 44 mm
Mounting	Rack mountable
Max Power Consumption	32.72 W
Max Heat Dissipation	111.65 BTU/h
Performance
Switching Capacity	176 Gbps
Packet Forwarding Rate	130.9 Mpps
MAC Address Table	16K
Packet Buffer Memory	12 Mbit
Jumbo Frame	9 KB
Software Features
QoS	8 queues, 802.1p CoS/DSCP, SP/WRR/SP+WRR, bandwidth control, mirroring, QoS remarking
L3 Features	16 IPv4/IPv6 interfaces, 48 static routes, DHCP server/relay, static ARP, Proxy ARP
L2 Features	Link Aggregation (LACP), STP/RSTP/MSTP, Loopback Detection, Flow Control, Port Mirroring
Multicast	IGMP Snooping, MLD Snooping, MVR
VLAN	Up to 4K VLANs, 802.1Q, MAC VLAN, Protocol VLAN, Private VLAN, QinQ, Voice VLAN
Security	IP-MAC-Port Binding, ACL, 802.1X, DoS protection, Storm Control, DHCP Snooping, RADIUS, AAA, SSH/HTTPS
Management
Management Methods	Web, CLI, SNMP v1/v2c/v3, RMON, LLDP, Omada Cloud, Zero-Touch Provisioning, Omada App
Others
Certification	CE, FCC, RoHS
Package Contents	Switch, power cord, mounting kit, installation guide
Environment	Operating: 0–45°C Storage: -40–70°C Humidity: 10–90% non-condensing
