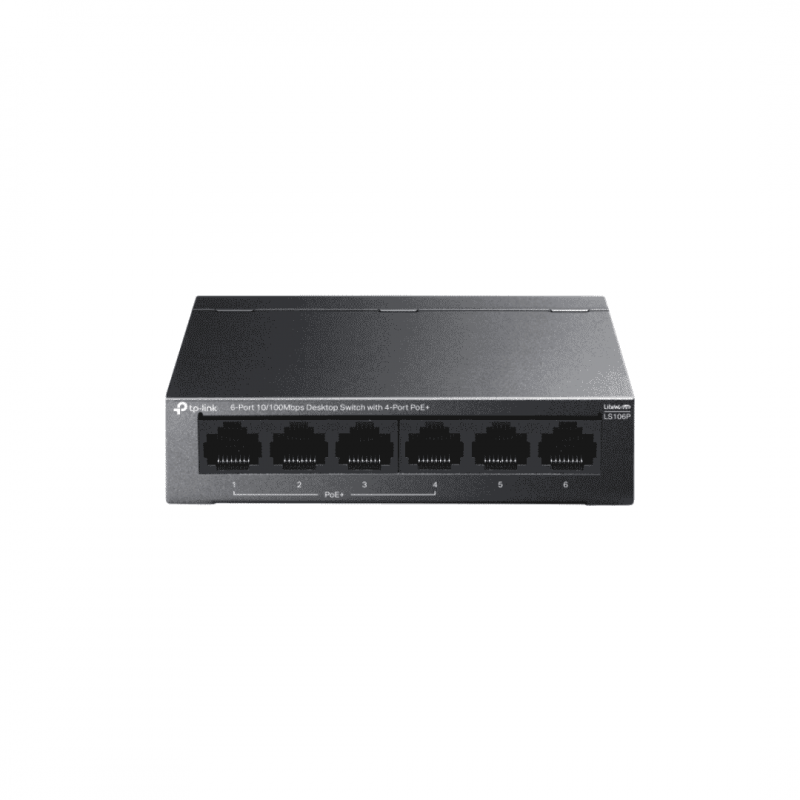

TP-Link switch LS106P 6-Port 10/100 Mbps, 4-Port PoE 41W, 250m

Switches

Product reference: KSLS106LP

4× 10/100 Mbps PoE+ ports with up to 30 W PoE output per port
2× 10/100 Mbps Non-PoE Ports
65 W total PoE budget
Up to 250 m (820ft) data and power transmitting range under Extend Mode
Isolation Mode allows one-click client traffic separation for higher security and performance
PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
Simply plug and play for instant connectivity with no configuration required.
Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses.
Desktop / Wall-mounting

At stores prices may vary

Price:

€27.00

€22.31 tax excl.

Favourite

We have 3 qty.
Delivery in 1-2 business days

Product information

TP-Link switch LS106P 6-Port 10/100 Mbps, 4-Port PoE 41W, 250m

The LS106P is an 6-Port 10/100Mbps Desktop Switch with 4 ports supporting the PoE+ standard. It offers a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. It provides a total power budget of 65 W*, with up to 30 W per port. It supports up to 250 m (820ft) data and power transmitting range under Extend Mode**. Featured with Isolation Mode & PoE Auto Recovery, LS106P is ideal for surveillance scenario.

Hardware Features
Standards and Protocols	IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at
Interface	6 × 10/100 Mbps RJ45 ports with 4 PoE+ ports (Ports 1–4) Auto-Negotiation / Auto MDI/MDIX
Network Media	10BASE-T: UTP category 3/4/5 cable (up to 100 m) 100BASE-TX: UTP category 5 or above cable (up to 100 m)
Fan Quantity	Fanless
External Power Supply	53.5 V DC / 1.31 A adapter
Power Input	220–240 V, 50/60 Hz
LED Indicators	Power, Link/Act, PoE Status
Packet Forwarding Rate	0.893 Mpps
PoE Ports	IEEE 802.3af/at compliant Ports 1–4 Total power budget: 65 W
Dimensions	99.8 × 98 × 25 mm
Max Power Consumption	66.53 W
Max Heat Dissipation	226.19 BTU/h
Performance
Packet Buffer Memory	2048 Bytes
Advanced Features	Extend Mode (Ports 1–4) Isolation Mode (Ports 1–4) PoE Auto Recovery (Ports 1–4)
Jumbo Frame	2 KB
Switching Capacity	1.2 Gbps
Software Features
MAC Address Table	2K
Transmission Method	Store-And-Forward
Others
Package Content	Switch, Power Adapter, Rubber Feet, Installation Guide
Certifications	CE, RoHS, KC, NTRA
Environment	Operating Temperature: 0°C ~ 40°C Storage Temperature: -40°C ~ 70°C Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 90% non-condensing

Features

Incoming Bandwidth	10/100
Ports	6
PoE+ ports	4
