Wireless PIR Motion Sensor S8-SMS 8F, 868 MHz

Trikdis security products and comunicators

Product reference: BSS8SMS

Wireless PIR motion sensor with 9 m detection, 360° rotatable install, pet immunity, tamper alert, and 300 m range.

At stores prices may vary

Price:

€48.76

€40.30 tax excl.

Favourite

We have 10+ qty.
Delivery in 1-2 business days

Product information

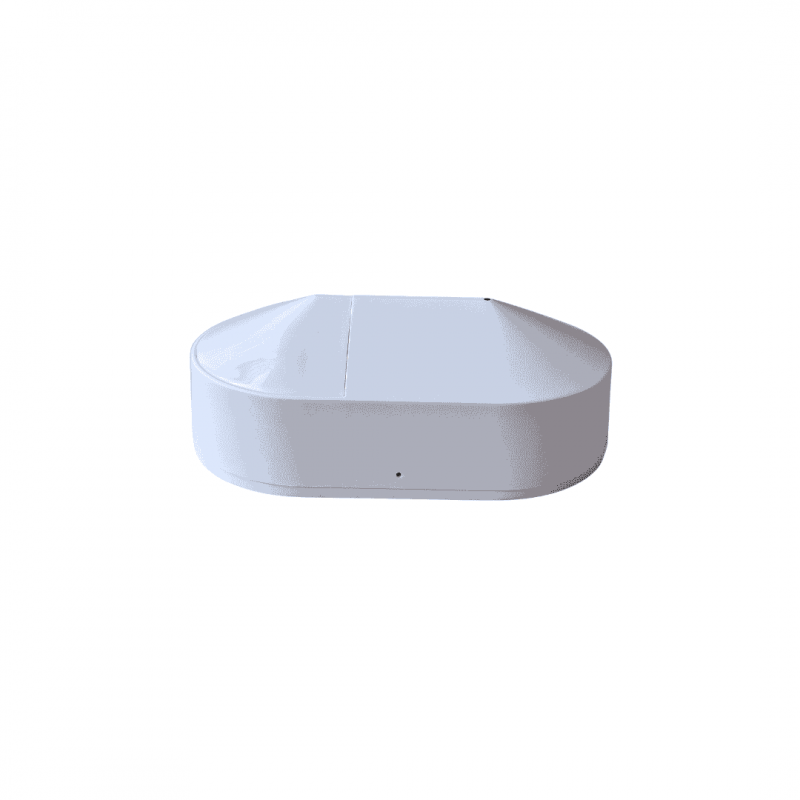

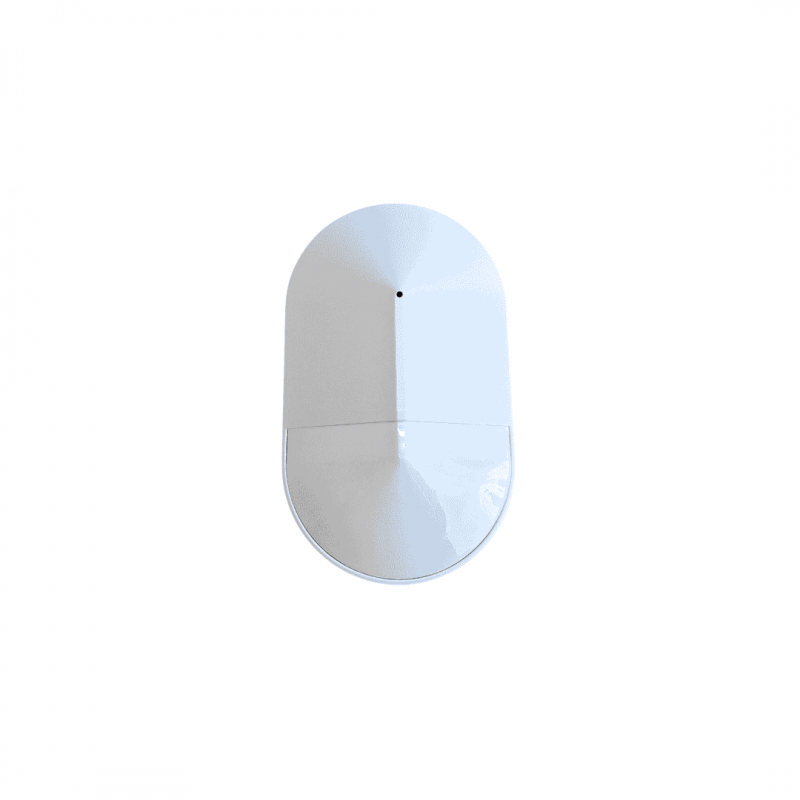

Wireless PIR Motion Sensor S8-SMS 8F, 868 MHz

This compact wireless PIR motion sensor offers precise infrared detection, minimized false alarms, and seamless integration into your security system. It operates on the 868 MHz frequency with a wireless transmission range up to 300 m in open spaces. The 9 m detection distance combined with 360° rotatable mounting ensures flexible placement. It features adjustable sensitivity for tailored performance, tamper detection that alerts if the case is opened or removed. The device draws 20 mA in wireless mode and functions reliably within –10 °C to +50 °C.

Features

Wireless operation on 868 MHz frequency, range up to 300 m (open area)
9 m detection distance, 360° rotatable installation
Adjustable sensitivity to reduce false alerts
Anti-tamper alarm for case removal/opening
Compact and easy to install
Operating temperature from –10 °C to +50 °C
Wireless current: 20 mA
System requirement: Works with FLEXi SP3 (and newer Trikdis control panels) when used together with the RF-S8 wireless repeater (868 MHz)

Specification	Value
Power Supply	DC 3 V (wireless only)
Current (Wireless)	20 mA
Alarm Output	5 seconds
Detection Distance	9 m
Detection Angle	360° rotatable
Wireless Range	Up to 300 m (open area)
Wireless Frequency	868 MHz
Operating Temperature	–10 °C … +50 °C

Tamper Alarm	Yes
