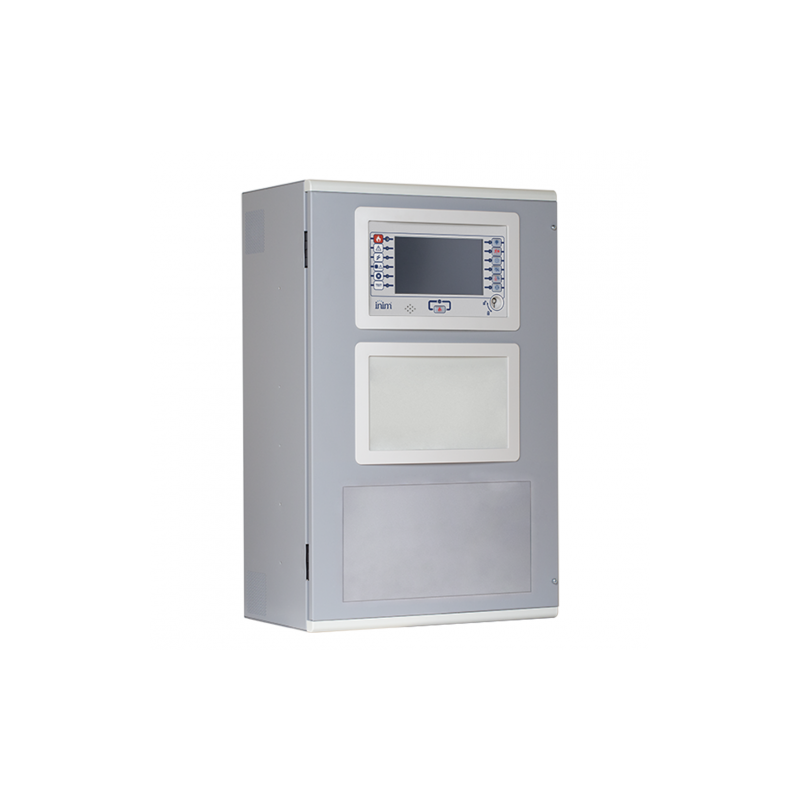

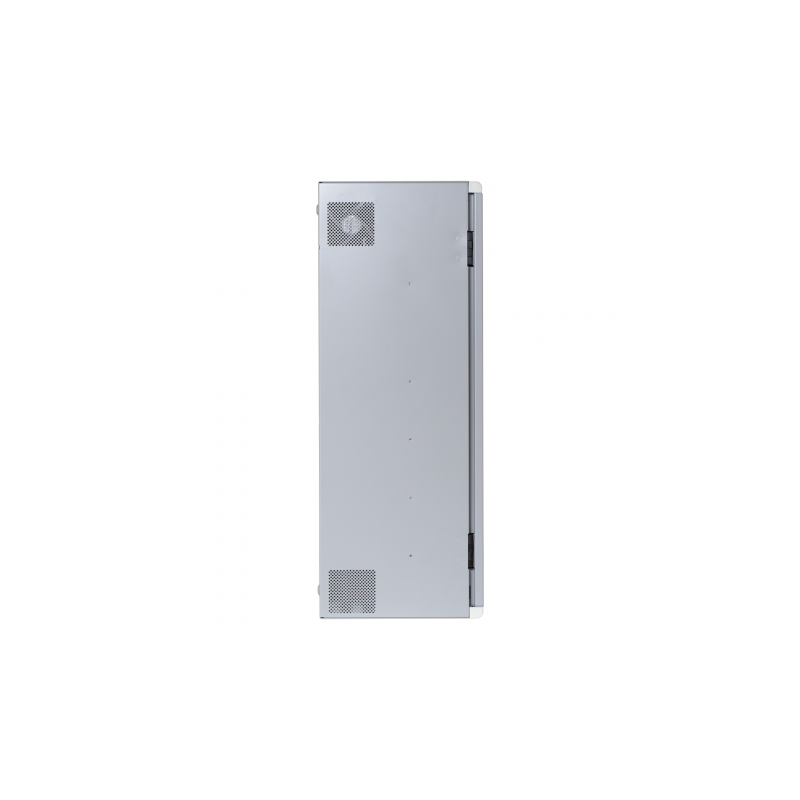

Previdia Ultra216 control panel with fire detection functions 2-16 loops

Product reference: PSPREVULTRA216

Basic modular control panel for fire protection systems.

Control panel in single cabinet with fire detection functions. It is possible to add the FPM, FPAM, IFM and IFAM function modules. The cabinet, model PRCAB+, has no plastic door or housing for the PTT microphone and emergency telephone.

Product information

Includes:

FPMCPU, main CPU unit with display
IFAMPSU, power-supply module capable of supplying current up to 1KWatt at 27.6V
IFM2L - module for the management of two loop circuits for devices distributed in the protected area.

Main features

Fire detection and alarm functions (The same of the Previdia Max system)
Gas extinguishment-system management functions (The same of the Previdia Max system)
1000W power-supply (included) and expandable to 4000W (by adding the PRCAB+ cabinet)
IDANet network over Ethernet point-to-point or optic fiber, max. 48 Control panel
Possibility to connect up to 4 cabinets together (up to 3 additional PRCAB+)

Technical specifications of the Previdia Ultra216 control panel

POWER SUPPLY VOLTAGE	90 ~ 264VAC 47 ~ 63Hz
MAXIMUM CURRENT DRAW	8.5A @ 115VAC 5A @ 230VAC
OUTPUT VOLTAGE	26V DC NOMINAL 20 - 27,6 V
OUTPUT VOLTAGE ON SPEAKER LINES	100 Vrms
MAXIMUM CURRENT OUTPUT BY THE POWER-SUPPLY MODULE	38A
CURRENT AVAILABLE FOR THE SYSTEM	35A
MAXIMUM BATTERY-CHARGE CURRENT	3A
BATTERY	2 x 12 V 17 Ah or 2 x 12 V 38 Ah
OPERATING TEMPERATURE	-5°C .. 40°C
MAXIMUM POWER MANAGEABLE	1000W FOR EACH POWER-SUPPLY MODULE (MAX. 4000 W WITH 4 CABINETS E 4 POWER-SUPPLY MODULES)
IP PROTECTION GRADE	IP30
DIMENSIONS	67,5 x 43 x 26 cm

Features

Addresses	240
Loops	2-16
Control panel type	Modular

Manufacturer

Inim develops state-of-the-art systems for antintrusion, fire detection, home automation and emergency lighting. Integrated systems of the newest design that protect and control automatically residential, commercial and institutional buildings. Inim innovates to simplify the life of the installer and the end-user by means of devices that are both easy to install and use. From design to production, from testing to marketing, every Inim product is made in Italy to be appreciated in the world.
