Previdia Vox Modular control panel with voice evacuation functions only

Product reference: PSPREVVOXG

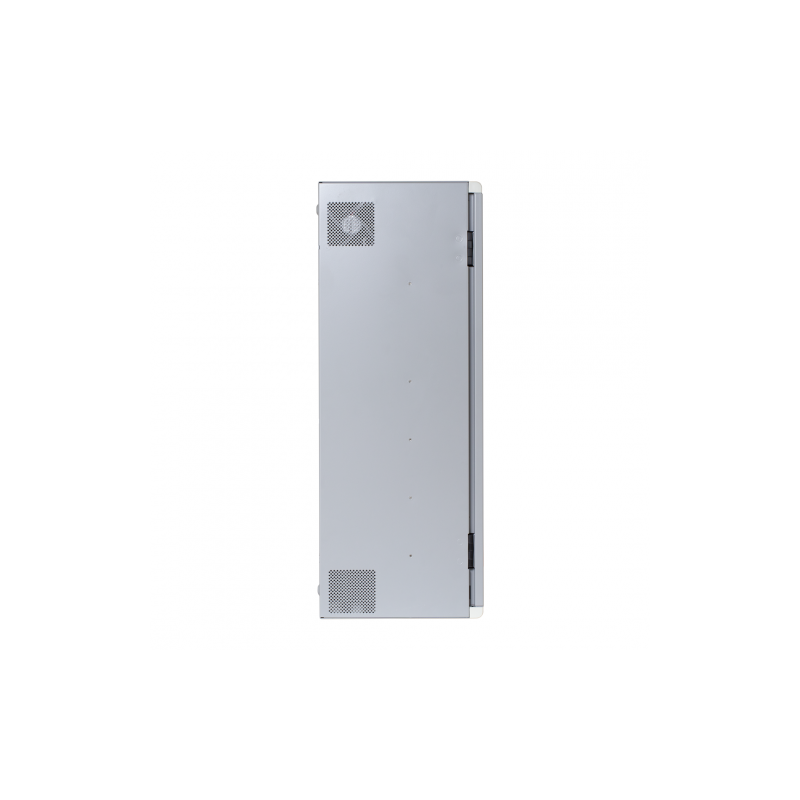

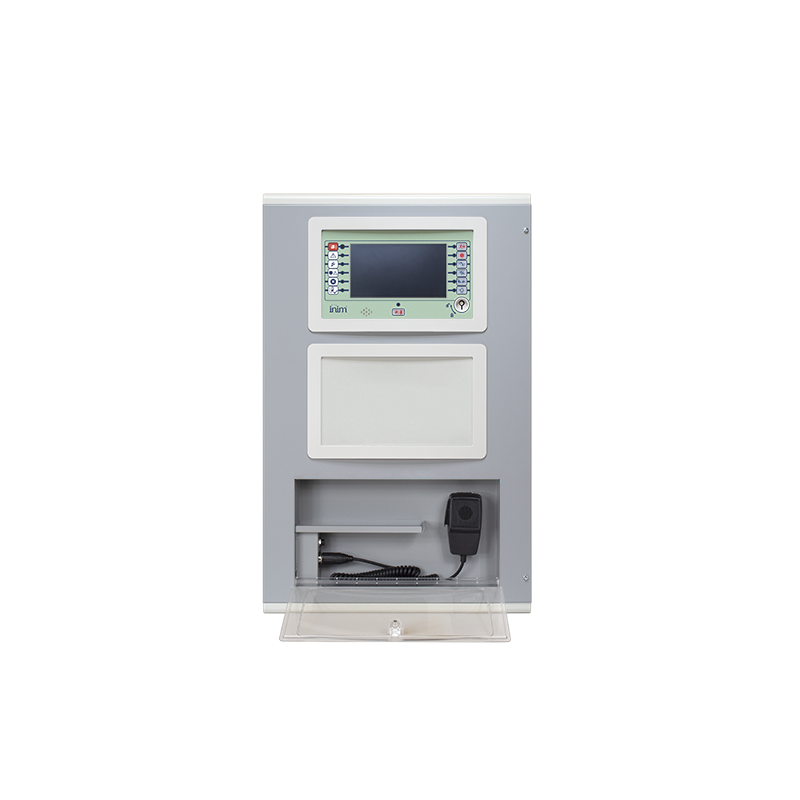

Basic control panel with only voice evacuation functions to which the FPM, FPAM, IFM and IFAM function modules can be added. The cabinet, model PRCAB+, is complete with plastic door and housing for the PTT microphone and emergency telephone.

Product information

Includes:

N°1 FPAMIAS Module - Control panel with display for Evac voice functions and public address
N°1 IFAMPSU Module - 1000W power-supply module with battery charger
N°1 IFAMEVAC Module - Audio matrix module for signals processing
N°1 IFAMAMP Module - 250W amplifier module
N°1 PTT microphone

Main features

Management of the EVAC functions (Voice Evacuation)
Integrated management of the Public Address functions (Sound diffusion and audio entertainment)
Input/Output modules for interfacing with control panels or third-party systems
Management of 8 local digital audio tracks and 8 digital audio tracks coming from the network
Management of up to 30 250W class D amplifiers
1000W power supply included expandable up to 4000W (by adding PRCAB+ cabinet)
Impedance control of speaker lines by means of pilot tone
A/B lines management
Ring Speaker Line Management with optional isolators
Management of Backup amplifier
Management of two lines of standard and emergency microphone bases (max. 64 per line)
Internal audio memory for emergency and customizable messages
SD card management for additional audio
N°2 Analog Music audio inputs
N°2 analog audio AUX inputs with priority acquisition via contact or signal level
IDANET network on Ethernet point-to-point or optical fiber, max 48 control panels, shared audio
Possibility to connect up to 4 cabinets together (up to 3 additional PRCAB+)
Up to 1000 Audio zones
2000 event buffer
Advanced management of audio Entertainment (see the IASS and IAC APP server section)
Customisable messages for each audio zone and for the different activation scenarios

Technical specifications of the Previdia Vox fire-detection control panel

POWER SUPPLY VOLTAGE	90 ~ 264VAC 47 ~ 63Hz
MAXIMUM CURRENT DRAW	8.5A @ 115VAC 5A @ 230VAC
OUTPUT VOLTAGE	26V DC NOMINAL 20 - 27,6 V
OUTPUT VOLTAGE ON SPEAKER LINES	100 Vrms
MAXIMUM CURRENT OUTPUT BY THE POWER-SUPPLY MODULE	38A
CURRENT AVAILABLE FOR THE SYSTEM	35A
MAXIMUM BATTERY-CHARGE CURRENT	3A
BATTERY	2 x 12 V 17 Ah arba 2 x 12 V 38 Ah
OPERATING TEMPERATURE	-5°C .. 40°C
MAXIMUM POWER MANAGEABLE	1000W FOR EACH POWER-SUPPLY MODULE (MAX. 4000 W WITH 4 CABINETS E 4 POWER-SUPPLY MODULES)
IP PROTECTION GRADE	IP30
DIMENSIONS	67,5 x 43 x 26 cm

Sertificates

Manufacturer

Inim develops state-of-the-art systems for antintrusion, fire detection, home automation and emergency lighting. Integrated systems of the newest design that protect and control automatically residential, commercial and institutional buildings. Inim innovates to simplify the life of the installer and the end-user by means of devices that are both easy to install and use. From design to production, from testing to marketing, every Inim product is made in Italy to be appreciated in the world.

Previdia Vox Modular control panel with voice evacuation functions only

Product information

Sertificates

PREVIDIA-VOX_DoP_0051-CPR-2827

PREVIDIA-VOX_DoC_0051-CPR-2827
