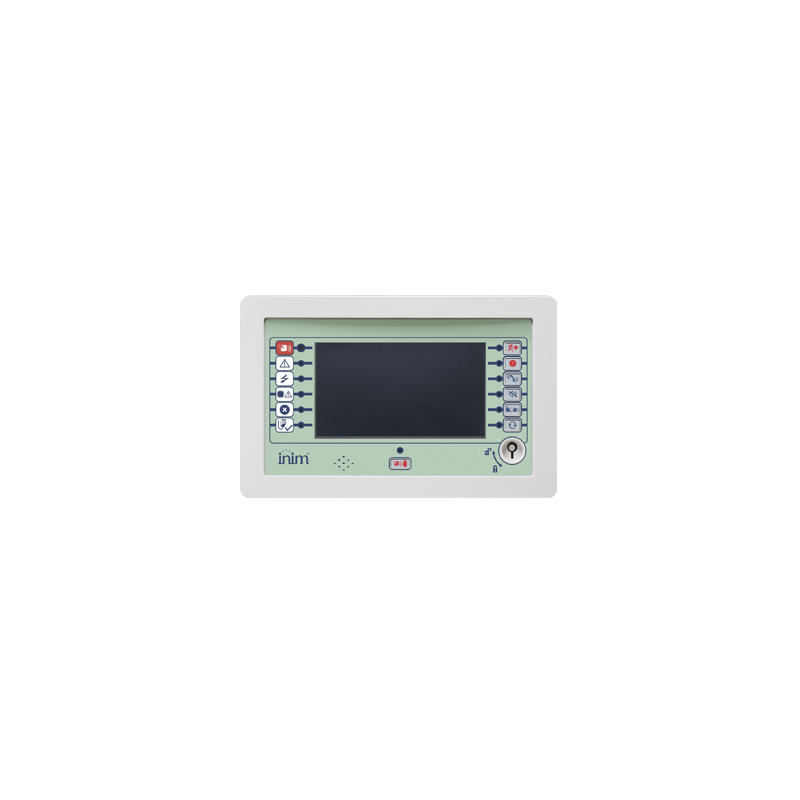

FPAMIAS Main control module for EVAC functions

UltraVox Control Panels and Accessories

Product reference: PSFPAMIAS-L

Main control panel for voice EVAC functions for the integration with the fire-detection control panels from Previdia Ultravox series.

Product information

To be connected to the CANDRIVE+ bar inside the metal cabinets and equipped with a graphic colour touchscreen. The module allows you to manage and co-ordinate the various function modules assigned to it. A single Previdia Ultravox control panel can house only one of these units. Mounts to the front plate and, if housed in the upper opening, connects to the CANDRIVE+ bar. If housed in the lower opening, it connects to the FPM module in the upper opening.

Main features

Ethernet connection for remote control
Mini USB Port for configuration via PC
7’’ touch screen, 65000 colours
Housing for μSD card
Customization of user interface, icons, buttons etc.
Connection with push-to-talk microphone and emergency telephone (optional) on the front panel
Monitor speaker for listening to audio sources
Status LEDs and function keys for evacuation management

Technical specifications of the FPAMIAS module

Power-supply voltage	19÷30Vcc
Consumption @ 27,6V	stand-by 110mA
Consumption during "Mains failure" conditions	stand-by 60mA
Operating temperature	-5°C ... +40°C
Dimensions	85 x 288 x 82mm
Weight	900g
Package dimensions	32,5 x 62 x 25 cm
