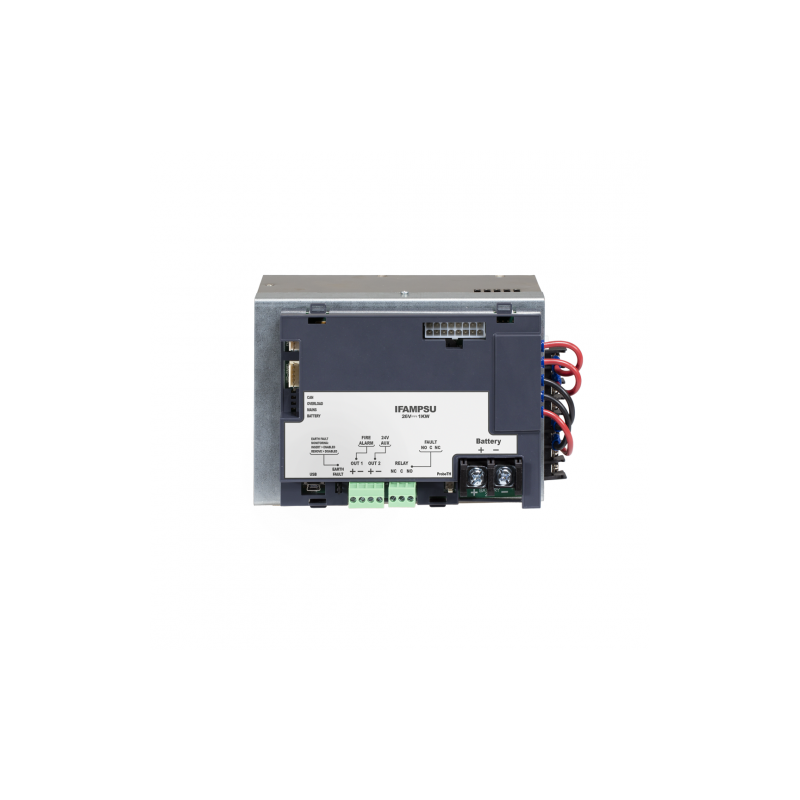

IFAMPSU 1000W Switching power supply module

UltraVox Control Panels and Accessories

Product reference: PSIFAMPSU

The IFAMPSU power supply module connects to the mains and supplies the system with a maximum current of 40A.

Product information

It houses a 3A battery-charger capable of maintaining under charge two 17Ah, 24Ah or 40Ah batteries. It has two supervised outputs and a configurable relay output (at factory default configured as Alarm output, AUX output and fault signalling relay). It accepts 230Vac or 115Vac 50/60 Hz input voltage. Only one power supply module can be housed inside each metal cabinet. Each control panel manages a maximum of 4 power supply modules (one for each eventual cabinet).

Main features

CPU dedicated to the control of the module and communication with the control-panel FPMCPU module
1 programmable relay
2 programmable supervised outputs
Extended Range Input (230V / 115V)
BUILT-IN BATTERY CHARGER
CONTROL AND MONITORING OF BATTERIES
EFFICIENCY UP TO 94%

Technical specifications of the IFAMPSU module

POWER SUPPLY VOLTAGE	90 ~ 264VAC 47 ~ 63Hz
MAXIMUM CURRENT DRAW	8.5A/115VAC 5A/230VAC
OUTPUT VOLTAGE	26Vdc NOMINAL +/- 10%
RIPPLE MAX	200mVp-p
POWER FACTOR	0.95 @ 230VAC / 0.99 @ 115VAC AT FULL LOAD
OVERLOAD PROTECTION	105 ~ 135% OF THE DECLARED POTENTIAL (CONSTANT CURRENT LIMIT, AUTOMATIC RESET TO THE RESET OF THE OVERLOAD CONDITIONS)
OVERVOLTAGE PROTECTION	29 ~ 33V
OVERHEATING PROTECTION	OUTPUT VOLTAGE SUSPENSION, REACTIVATION TO RESET TEMPERATURE
MAX. TOTAL CURRENT Imax b (according to EN54-4)	38 A
MAX CORRENTE CARICABATTERIA	3A
MAX. CURRENT DESTINED FOR THE Imax a SYSTEM (according to EN54-4)	35 A
MAX. CURRENT ON EACH OUTPUT (OUT1 and OUT 2)	1,5A @27.6V DC
Maximum voltage on RELAY	5A, 30V DC
CONSUMPTION OF BATTERIES IN THE EVENT OF MAINS NETWORK FAILURE	30mA
