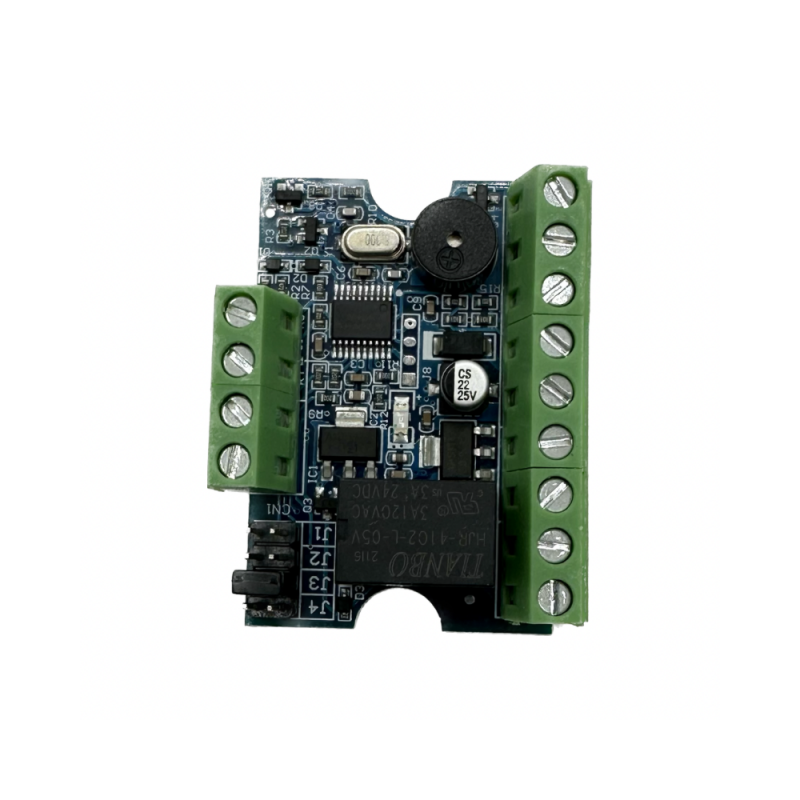

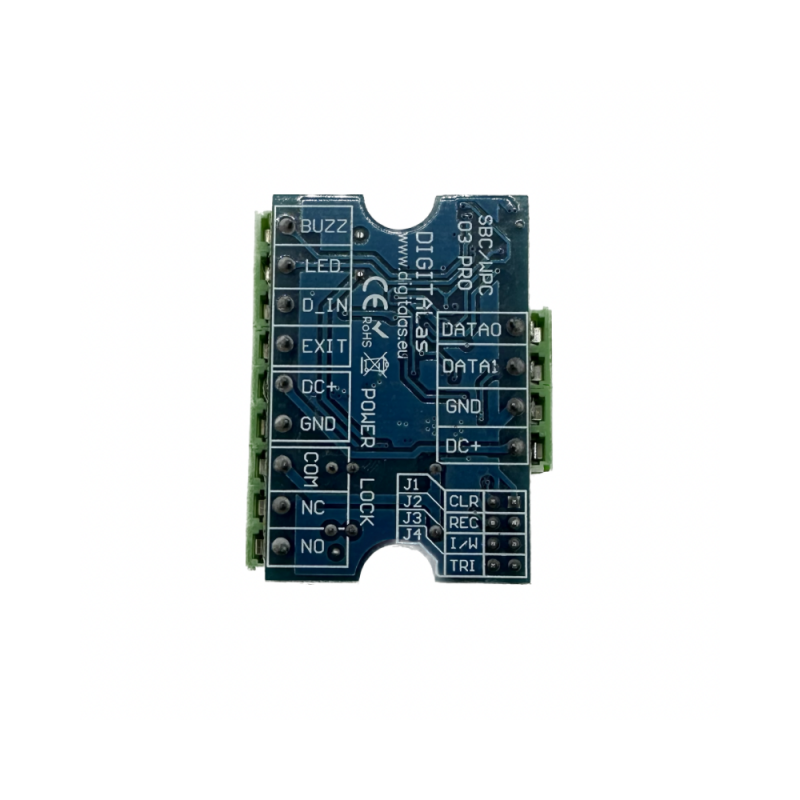

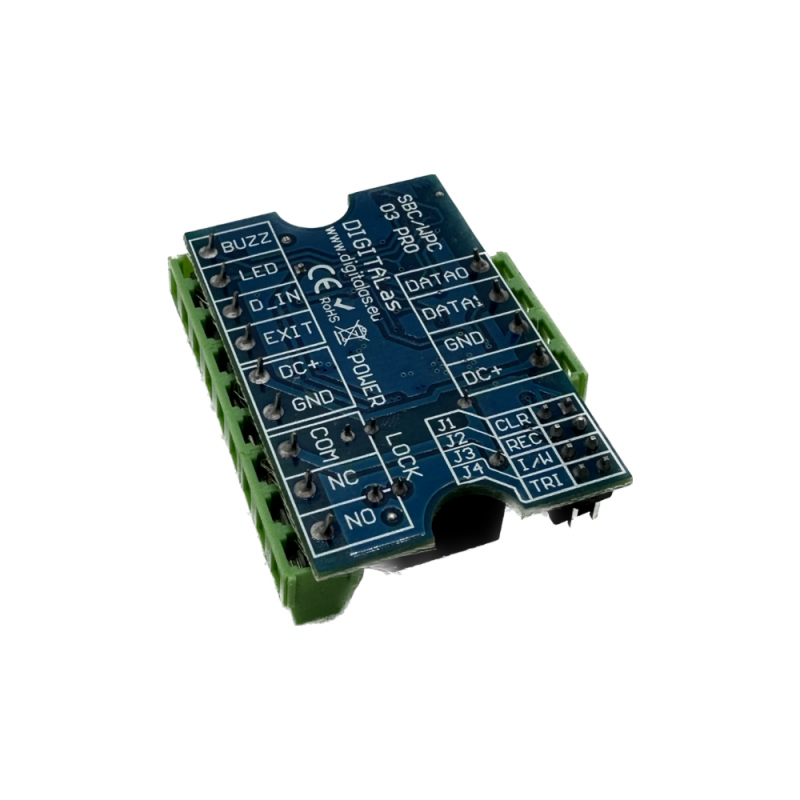

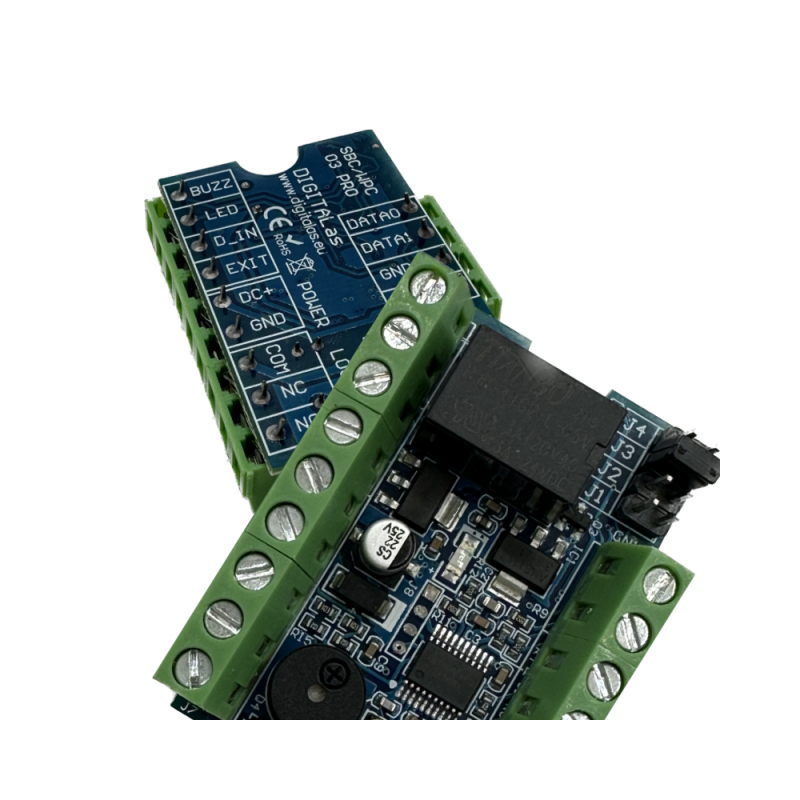

SBC-WPC-03 PRO TM RFID controller

Product reference: PKSBC3PRO

SBC-WPC-03 PRO TM RFID controller is an autonomous TM "DALLAS" electronic key and Wiegand 26-42 RFID reader, designed taking into account the needs of users and installers. The controller is functional and easy to use, as well as easy to install and program. Supports 1000 users. The controller has two MASTER cards and can be connected to any locks and exit buttons.

At stores prices may vary

Price:

€31.57

€26.09 tax excl.

Favourite

We have 1 pcs
Delivery in 1 business days

Product information

Technical data:

Parameter	Meaning
Installation location	Domestic
feed	12VDC ±20%
Energy consumption (current - min)	12VDC - ≤17mA

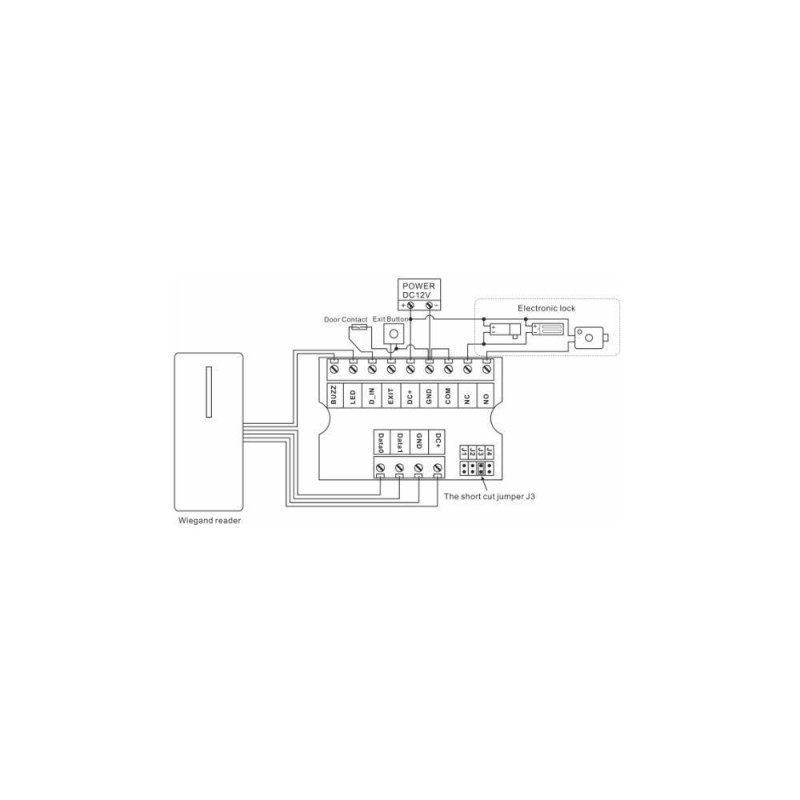

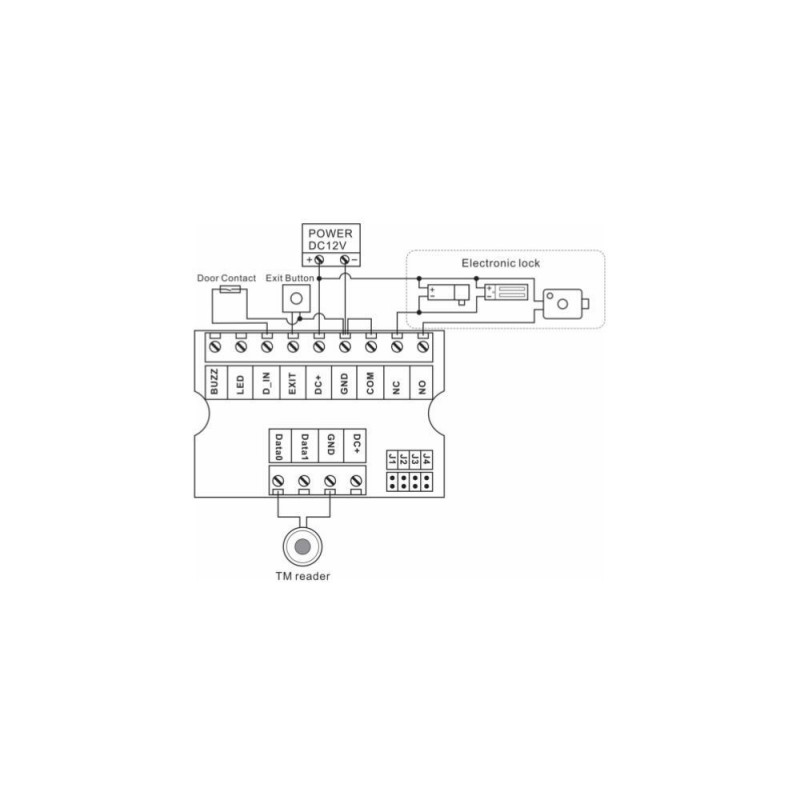

Scanner (support)	RFID, Wiegand 26-42, TM1990A for keys
Electric lock output current	≤3A (relay output)
Number of users	1000
Unlock time	s. 1-127
Distance to Wiegand reader	≤100 years
Distance to TM reader	≤15 years
Master cards	2 pcs.
Dimensions (mm)	48×32×14
Operating temperature	- 35 °C ~ + 60 °C
Moisture	≤90%, ROH
