Doorbell bracket PFA7753-B Dahua

Price:

2K Wired Video Doorbell VDKP01-BG with Wi-Fi chime Dahua Black

Video Doorbells

Product reference: VMVDKP01-BG

4MP – clear images with sharp details.
One-click Proactive Call – allows proactive bidirectional calls anytime, anywhere.
Abnormal Sound Alarm – detects abnormal sounds and sends timely alerts.
H.265 – advanced H.265 compression technology.
AI Human Detection – focuses on what matters and reduces false alarms.
Wi-Fi 6 – seamless integration of speed and anti-interference.
Supports Micro SD Card – low-cost storage.
AI Vehicle Detection – focuses on what matters and reduces false alarms.

Bluetooth Pairing – fast pairing with Bluetooth.

At stores prices may vary

Price:

€96.80

€80.00 tax excl.

Favourite

In manufacturer warehouse
Ask

Product information

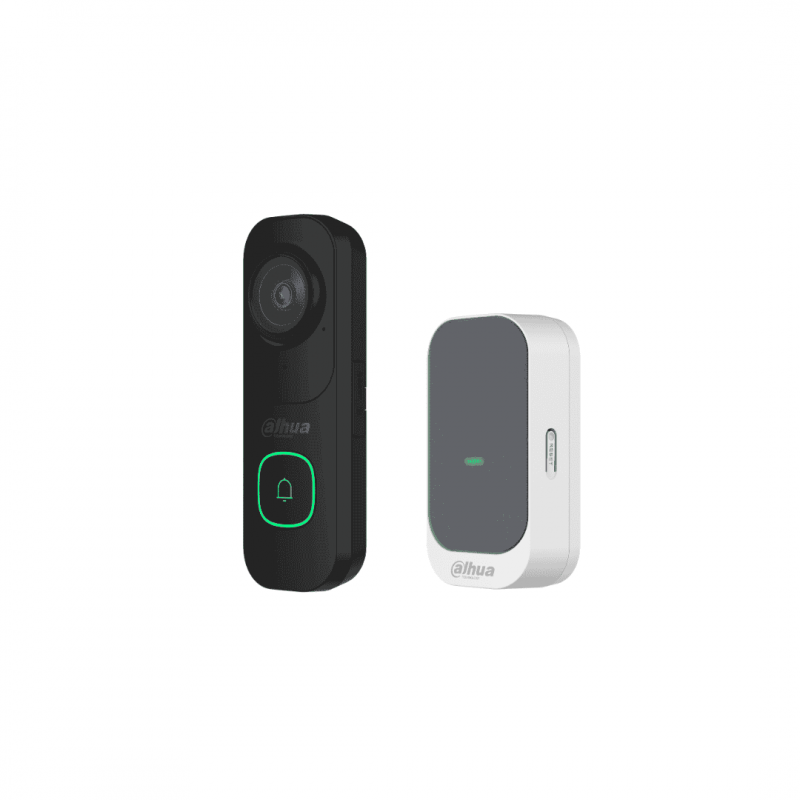

2K Wired Video Doorbell VDKP01-BG with Wi-Fi chime Dahua Black

The WiFi Video Doorbell is a new addition to the Dahua Wireless series. It not only delivers 2K high-resolution imagery, but also captures more details than conventional fixed lenses through its ultra-wide fisheye lens. The doorbell features passive IR motion detection and transmits videos and audios to mobile devices, allowing you to remotely perform visual confirmation and communicate with visitors. Furthermore, it is compatible with 2.4 GHz Wi-Fi 6 networks, enhancing its connectivity options. The Wireless Chime is an indoor device that chimes when your videodoorbell is pressed. Through the DMSS app, the ringtones and volumecan be customized to your ideal settings and it can be paired with eitherof the two models of Dahua video doorbells. Highly convenient, it canalso be bound to multiple video doorbells at the same time, so youcan place multiple Wireless Chime around your home to always hearwhenever someone presses your video doorbell. Whether you’re in thekitchen, office or bedroom, you’ll never miss a thing if your phone is outof reach.

Camera

Image Sensor

1/3" CMOS

Max. Resolution

2560 (H) × 1440 (V)

Illumination Distance

Up to 10 m (32.81 ft) (IR)

Illuminator Number

2 (IR LED)

Lens Type

Fixed-focal

Focal Length

2.3 mm

Max. Aperture

F2.2

Field of View

H: 120°; V: 66°; D: 143°

Intelligence

Human Detection

Yes

Vehicle Detection

Yes

Audio and Video

Video Compression

H.265; H.264; H.264H; H.264B

Video Frame Rate

Main stream: 2560 × 1440@(1–15 fps)/920 × 1080@(1–15 fps)/1280 × 720@(1–15 fps)
Sub stream: 640 × 360@(1–15 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Video Bit Rate

H.264: 32 kbps–8192 kbps;
H.265: 32 kbps–8192 kbps

Day/Night

Auto(ICR)/Color/B/W

WDR

DWDR

Motion Detection

OFF/ON (4 areas, rectangular)

Image Rotation

0°/180°

Built-in MIC

Yes, built-in Mic

Built-in Speaker

Yes, built-in speaker

Audio Compression

G.711a; G.711Mu; PCM

Network

Wi-Fi

IEEE 802.11b/g/n/ax 2.4000–2.4835 GHz, 2.4 G, EIRP≤20 dBm

Wi-Fi Pairing

Bluetooth pairing

Storage

Micro SD card (support max. 256 GB)

Management Software

DMSS

Mobile Client

Android;iOS

General

Certifications

CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
CE-RED: Radio Equipment Directive 2014/53/EU

Power Supply

USB (5 VDC±5%, 2 A) or binding post power supply (10–24 VDC/14–24 VAC, 1.0 A).

Power Consumption

Basic: 1.7 W (5 VDC); 2.1 W (10–24 VDC); 2.2 W (14–24VAC, active power)
Max.: 5.3 W (5 VDC); 6.8 W (10–24 VDC); 6.8 W (14–24 VAC, active power) (IR + white light + alarm on)

Operating Temperature

–20 °C to +55 °C (–4 °F to +131 °F)

Operating Humidity

≤95% (RH), non-condensing

Protection

IP65

Camera Button

One-click Call Button

Casing Material

Plastic

Product Dimensions

135 mm × 45 mm × 24.2 mm (5.31" × 1.77" × 0.95") (L × W × H)

Net Weight

0.11 kg (0.24 lb)

Audio

Built-in Speaker

Network

Management Software

DMSS

Wi-Fi

IEEE 802.11b/g/n/ax 2.4000–2.4835 GHz, 2.4 G, EIRP≤20 dBm

Network Update

Yes

Power

Power Supply

100–240 VAC 50/60 Hz

Power Consumption

< 5 W

Structure

Appearance Color

White Plastic + Grey Cloth

Net Weight

0.1 kg (0.22 lb)

Gross Weight

0.2 kg (0.44 lb)

Casing Material

Plastic + Cloth

Product Dimensions

Bare machine: 96 mm × 50 mm × 30.3 mm (3.78" × 1.97"× 1.19") (L × W × H)

Packaging Dimensions

187 mm × 81 mm × 57 mm (7.36" × 3.19" × 2.24") (L × W × H)

Environment

Operating Temperature

–10 °C to +45 °C (14 °F to +113 °F)

Operating Humidity

20%–95% (RH), non-condensing

Certification

Certifications

CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
CE-RED: Radio Equipment Directive 2014/53/EU

What's in the Box

Tools:

Installation Kit × 1
Pin × 1
Mounting Bracket × 1

Documents:

Quick Start Guide × 2
Legal and regulation information × 2
QR Code × 2

Power:

Power Cable × 1
EU Plug × 1

Features

Color	Black
Resolution	4MP

Manufacturer

Dahua Technology is a world-leading video-centric AIoT solution and service provider. With its ‘Dahua Think#’ corporate strategy, Dahua Technology focuses on two core businesses: City and Enterprise. The company firmly strengthens its technological strategies that include AloT and IoT digital intelligence platforms, comprehensively promoting the digital intelligence upgrading of cities and enterprises based on customer needs, and creating more value for the digital-intelligent transformation of various industries.
