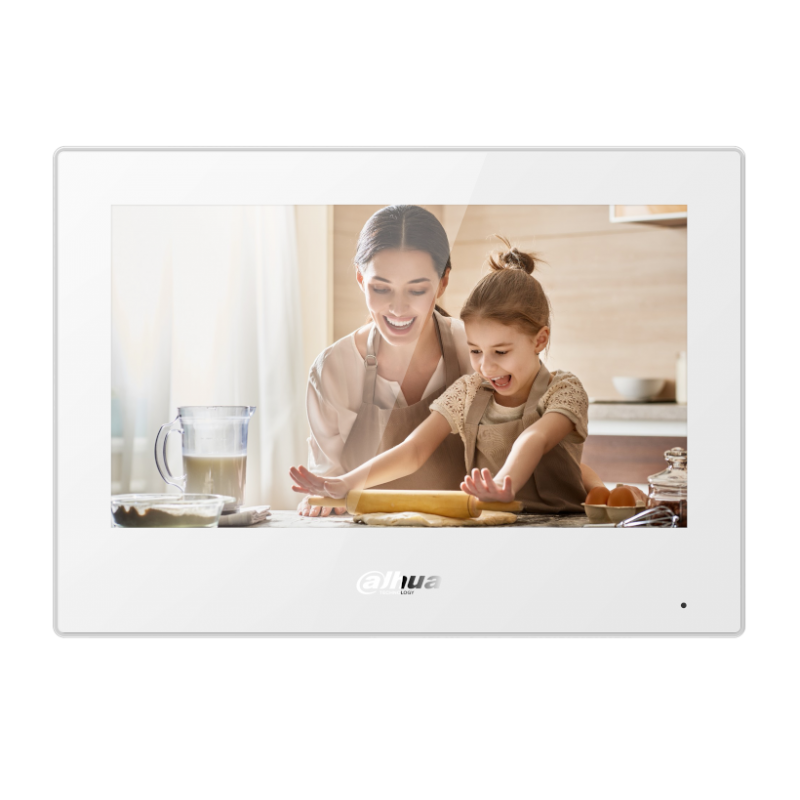

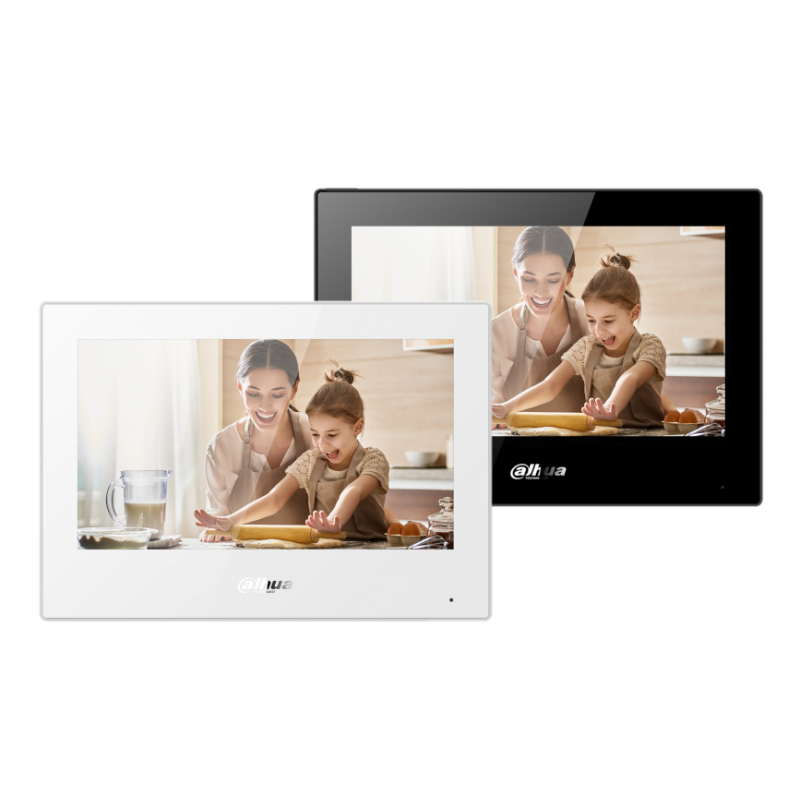

Android 7-inch digital indoor monitor VTH5321GW-W

Video Intercoms

Product reference: VMVTH5321GW-W

VTH5321GW-W Android 7-inch digital indoor monitor
Android 8.1
More User-Friendly UI
Ethernet and Wi-Fi
7" TFT Capacitive touch Screen,1024×600
Quick configuration for villa system

At stores prices may vary

Price:

€341.22

€282.00 tax excl.

Favourite

We have 10+ qty.
Delivery in 1-2 business days

Product information

VTH5321GW-W Android 7-inch digital indoor monitor. Quick configuration for villa system.

Specifications

System

Main Processor

Embedded processor

Operating System

Android 8.1

Network Protocol

IPv4, TCP, SIP, UDP, RTSP

Basic

Screen Type

Capacitive screen

Display Screen

7 inch TFT LCD

Resolution

1024×600

Video Compression

H.264

Audio Compression

PCM

Audio Input

1 omnidirectional microphone

Audio Output

Built-in 1W speaker

Audio Mode

Two-way audio

Audio Enhancement

Echo suppression/DNR

Audio Bit Rate

16KHz, 16Bit

Function

Communication Mode

Full digital

Information Release

Text announcements released by the management center can be viewed

Elevator Control

You can control the elevator through the indoor monitor

Leave Videos or Text Messages

Yes (SD card is needed)

DND Mode

Do not disturb period can be set.

Extension Number

Villa: 4 (Calls can be made among up to 3 indoor monitors when only Wi-Fi is connected.)
Apartment: 9

Wi-Fi

Yes

Wireless Standard

IEEE802.11b/802.11g/802.11n

Wireless Frequency Range

2.4GHz

Wireless Security-Encryption

64/128bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS

Storage

Micro SD storage, the maximum space is 256GB

Performance

Casing

PC+ABS

Port

RS-485

Alarm Input

Alarm Output

Power Output

1 12V/100mA

Door Bell

Yes, use alarm input port

Network

1 10M/100M Ethernet

Alarm

SOS

Yes

General

Color

White/Black

Power Supply

12V DC 1A
POE(802.3AF)

Installation

Surface mount

Certifications

CE
FCC

Accessory

Surface mount bracket, alarm ribbon cable, RS-485 cable, and power-supply pins are provided

Product Dimensions

189.6 mm × 134.6 mm × 26 mm (7.46"×5.30"×1.02")

Operating Temperature

–10°C to +55°C (+14°F to +131°F)

Operating Humidity

10%RH–95%RH (Non-condensing)

Operating Altitude

Less than 3,000 meters (9842.52 ft)

Power Consumption

≤1.5W (standby), ≤7W (working)

Net Weight

385 g (0.85 lb)

Gross Weight

490 g (1.08 lb)

Features

Type	Villa System
