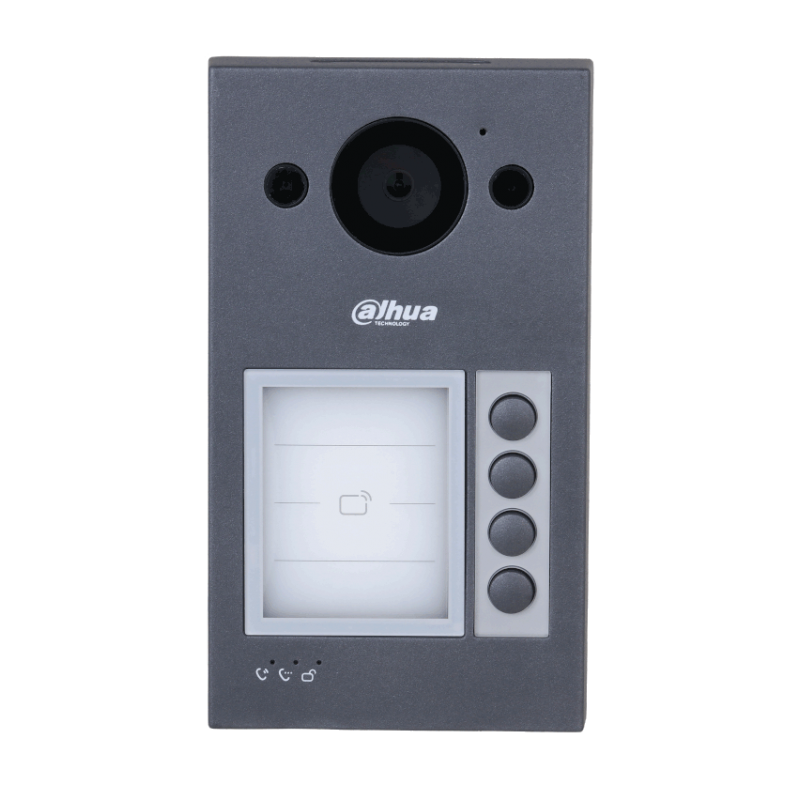

VTO3311Q-WP Wi-Fi Villa Door Station, 2MP camera, WiFi

Video Intercoms
Product reference: VMVTO3311Q-WP
  • Wi-Fi Villa Door Station
  • Full metal casing design.
  • Customizable Number of Buttons.
  • Wi-Fi connection.
  • 1/2.8" 2-MP HD CMOS camera.
  • Offers two–way video call with indoor monitors.
  • IR illumination and auto WDR.
  • Supports two locks.
  • Voice call and unlocking through app.
  • IK08 and IP65 rated.
  • H.264 and H.265.
  • Unlock with IC card.
  • PoE power supply.
  • Included rain cover.
  • Optional red-brown or dark blue front cover.
  • VTO3311Q-WP savybės
Read more
At stores prices may vary
Price:
€294.03
€243.00 tax excl.
Favourite
  • In manufacturer warehouse
  • Ask

Product information

VTO3311Q-WP Wi-Fi Villa Door Station, Wi-Fi connection, 2-MP HD CMOS camera.

Specifications

System

Main Processor

Embedded Processor

Button Type

Mechanical

Interoperability

ONVIF; CGI

Network Protocol

RTSP; DNS; P2P; UPnP; RTP; RTMP; SIP; SSH; HTTP/HTTPS; ONVIF

Basic

Camera

1/2.8" CMOS 2-MP HD camera

Field of View

H: 125°; V: 65°; D: 139°

WDR

120 dB

Noise Reduction

3D NR; 2D NR

Video Compression

H.264; H.265

Video Resolution

Main stream: 720p, WVGA, D1, and CIF;
Sub stream: 1080p, WVGA, D1, QVGA, and CIF

Video Frame Rate

PAL: 25 fps
NTSC: 30 fps

Video Bit Rate

768 kbps–8 Mbps

Light Compensation

Auto IR

Day/Night

Auto (ICR)/Color/B/W; Color/B/W

Audio Compression

G.711a; G.711u; PCM

Audio Input

1

Audio Output

Built-in speaker

Audio Mode

Two-way audio

Audio Enhancement

Echo suppression/digital noise reduction; Echo suppression; Digital noise reduction

Audio Bit Rate

16 kHz, 16 bit

Function

Communication Mode

Full digital

Unlock Mode

Card; app; indoor monitor

Card Type

IC card

Auto Snapshot

Yes (SD card is inserted in the indoor monitor or door station)

Leave Videos

Yes (SD card inserted in VTH/VTO is needed)

Web Configuration

Yes

Wi-Fi

Yes

Wireless Standard

IEEE 802.11b; IEEE 802.11g; IEEE 802.11n

Wireless Frequency Range

2.4 GHz

Storage

Micro SD card (max. 256 GB)

Performance

Card Reading Distance

0 cm–3.5 cm (0"–1.38")

Issue Card Locally

Yes

Casing

Alluminum alloy

Port

RS-485

1

Alarm Input

1

Alarm Output

1

Power Output

1

Exit Button

1

Door Status Detection

1

Lock Control

1

Network Port

1 × RJ-45 10/100 Mbps Ethernet port

Alarm

Tamper Alarm

Yes

General

Appearance color

Grey

Power Supply

12 VDC, 1 A; Standard PoE

Power Adapter

Optional

Installation

Surface Mount

Certifications

CE; FCC

Accessory

Included: Alarm power ribbon cable, rain cover

Product Dimensions

188.1 mm × 107.2 mm × 30 mm (7.41" × 4.22" × 1.18")

Protection

IP65 IK08

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

10%–90% (RH), non-condensing

Operating Altitude

0 m–3,000 m (0 ft–9,842.51 ft)

Power Consumption

≤ 3 W (standby), ≤ 6 W (working)

Gross Weight

0.81 kg (1.79 lb)

Net Weight

0.55 kg (1.21 lb)

Features

Type Villa System

Manufacturer

Dahua Technology is a world-leading video-centric AIoT solution and service provider. With its ‘Dahua Think#’ corporate strategy, Dahua Technology focuses on two core businesses: City and Enterprise. The company firmly strengthens its technological strategies that include AloT and IoT digital intelligence platforms, comprehensively promoting the digital intelligence upgrading of cities and enterprises based on customer needs, and creating more value for the digital-intelligent transformation of various industries.
