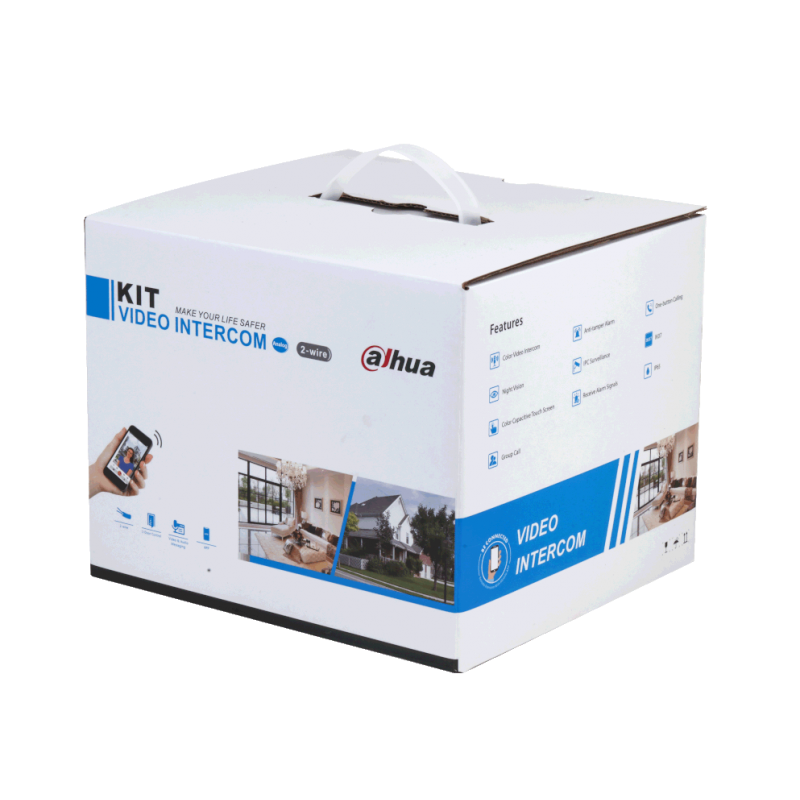

KTX01(S) Video Intercom KIT (VTO2003F+VTH5123H-W+VTNC1003C)

Video Intercoms

Product reference: VMKTX01(S)

Video Intercom KIT.

KTX01

At stores prices may vary

Price:

€582.01

€481.00 tax excl.

Favourite

We have +10 pcs
Delivery in 1 business days

Product information

Video Intercom KIT

2-wire Wi-Fi Hybrid Indoor Monitor:
7" TFT capacitive touch screen.
Offers video intercom that communicates with VTOs through half-duplex, and the app through full-duplex.
Supports recording videos and capturing snapshots. (SD card is required).
6-channel alarm input and 1-channel alarm output.
The app can be used to receive calls and alarm notifications.
Connects to HDCVI camera.

2-wire Hybrid Villa Door Station:

Aluminum alloy front panel.
Auto IR illumination.
Video messages can be left for unanswered calls. (SD card is required for VTH).
Features nameplate and DWDR.
Supports local lock and second lock.
Offers anti-tampering alarm.
IP65 and IK07 rated.

Specifications:

DHI-VTO2003F

System

Main Processor

Embedded Processor

Button Type

Mechanical

Basic

Camera

1/2.8" 2 MP CMOS HDR Camera

Field of View

H: 110°; V: 60°

WDR

DWDR

Noise Reduction

3D NR

Video Resolution

P: 960 (H) × 576 (V)
N: 960 (H) × 480 (V)

Video Frame Rate

P: 25 fps
N: 30 fps

Light Compensation

Auto IR

Day/Night

Auto(ICR)/Color/B/W

Audio Input

Audio Output

Built-in speaker

Audio Mode

Two-way audio (half–duplex)

Function

Unlock Mode

Remote unlock

Leave Videos

Yes (SD card inserted in VTH is needed)

Performance

Casing Material

Aluminum Alloy

Port

RS-485

Alarm Output

Power Output

1 × 12 VDC output, 200 mA

Exit Button

Door Status Detection

Lock Control

Alarm

Tamper Alarm

Yes

General

Appearance Color

Silver

Power Supply

2-wire controller

Installation

Surface Mount

Certifications

CE; FCC

Product Dimensions

130 mm × 96 mm × 28.5 mm (5.12" × 3.78" × 1.12")

Protection

IP65
IK07

Operating Temperature

–40 °C to +60°C (–40 °F to +140 °F)

Operating Humidity

10%–95% (RH), non-condensing

Operating Altitude

0 m–3000 m (0 ft – 9842.52 ft)

Power Consumption

≤ 1.5 W (standby), ≤ 10 W(working)

Gross Weight

0.502 kg (1.11 lb)

Storage Temperature

–40 °C to +70°C (–40 °F to +158 °F)

Storage Humidity

95% (RH), non-condensing

DHI-VTH5123H-W

System

Main Processor

Embedded Processor

Operating System

Embedded operating system

Network Protocol

IPv4; UDP; DNS; TCP

Basic

Screen Type

Capacitive Touchscreen

Display Screen

7" TFT

Screen Resolution

1024 (H) × 600 (V)

Audio Compression

G.711a; G.711u; PCM

Audio Input

Audio Output

Built-in speaker

Audio Mode

Two-way audio with VTO (half–duplex);Two-way audio with app (full–duplex)

Audio Enhancement

Echo suppression/digital noise reduction

Audio Bit Rate

16 kHz;16 bit

Function

Leave Videos

Yes (SD card needed)

DND Mode

Do not disturb period can be set;Do not disturb mode can be set.

Number of Extensions

Wi-Fi

Yes

Wireless Standard

IEEE802.11b/802.11g/802.11n

Wireless Frequency Range

2.4 GHz

Storage

Micro SD card (up to 64 GB)

Port

RS-485

Alarm Input

Alarm Output

Power Output

1 (12 V, 200 mA)

Door Bell

Yes (use the alarm input port)

Performance

Casing Material

PC + ABS

General

Appearance Color

White

Power Supply

2-wire controller

Installation

Surface Mount

Certifications

CE; FCC

Product Dimensions

130 mm × 189 mm × 23.9 mm (5.12" × 7.44" × 0.94")

Operating Temperature

–10 °C to +55°C (14 °F to +131 °F)

Operating Humidity

10%–95% (RH)

Operating Altitude

0 m–3000 m (0 ft – 4265.09 ft)

Power Consumption

≤ 2.5 W (standby), ≤ 10 W(working)

Gross Weight

0.633 kg (1.40 lb)

Storage Temperature

–40 °C to +70°C (–40 °F to +158 °F)

Storage Humidity

95% (RH),non-condensing

VTNC1003C

Performance

Casing Material

PC + ABS

General

Appearance Color

White

Power Supply

48 VDC

Certifications

CE; FCC

Accessory

Included: Line termination terminal

Product Dimensions

65.2 mm × 46.2 mm × 23.2 mm (2.57" × 1.82" × 0.91")

Operating Temperature

–10 °C to +55°C (14 °F to +131 °F)

Operating Humidity

10%–95% (RH)

Operating Altitude

0 m–3000 m (0 ft – 4265.09 ft)

Power Consumption

3.5 W

Gross Weight

0.13 kg (0.29 lb)
