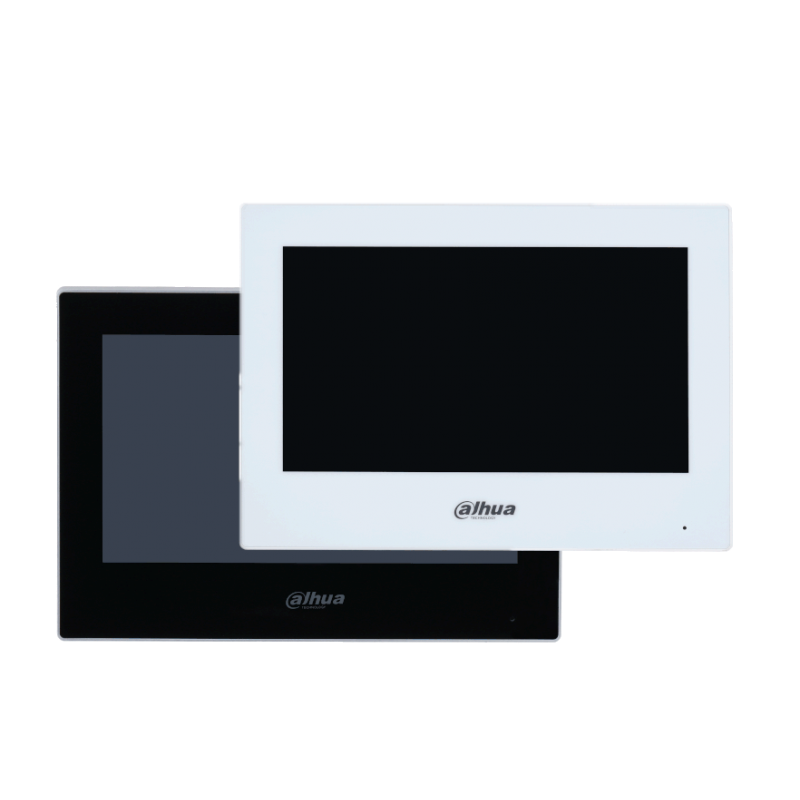

VTH2621G-P IP Indoor Monitor Black

Video Intercoms

Product reference: VMVTH2621G-P

7" TFT capacitive touch screen, 1024 × 600.
6-channel alarm input and 1-channel alarm output.
Standard PoE.
Door station and IPC monitor.
H.265 and H.264 video decoding.
High performance & cost-effective.

At stores prices may vary

Price:

€163.35

€135.00 tax excl.

Favourite

We have 6 pcs
Delivery in 2 business days

Product information

VTH2621G-P IP Indoor Monitor.

Specifications:

System

Main Processor

Embedded processor

Operating System

Embedded Linux operating system

Interoperability

ONVIF; SDK

Network Protocol

RTSP; RTP; SIP; DNS; SSH

ROM

128 MB

RAM

128 MB

CPU

Dual core 1.2 GHz

Basic

Screen Type

Capacitive touchscreen

Display

7" TFT

Screen Resolution

1024 × 600

Audio Compression

G.711a; G.711u; PCM

Audio Input

Audio Output

Built-in speaker

Audio Mode

2-way Audio

Audio Enhancement

Echo suppression

Audio Bit Rate

16 kHz; 16 bit

Function

Communication Mode

Full digital

Information Release

Receive and view text information released by the management center

Leave Videos

Yes (SD card inserted in VTO is needed)

DND Mode

Do not disturb period can be set; Do not disturb mode

Number of Extensions

Villa: 9
Apartment: 4

Performance

Casing

PC + ABS

Port

Alarm Input

Alarm Output

Door Bell

Yes (use any alarm input port)

Network

One 10/100 Mbps Ethernet

Storage

Micro SD Card, Max 64 GB (reserved for software)

General

Appearance Color

Black/White

Power Supply

12 VDC 1A;
Standard PoE (36–57 V, 0.35 A)

Installation

Surface Mount

Certifications

CE; FCC

Dimensions

189.6 mm × 134.6 mm × 26.0 mm (7.50" × 5.30" × 1.00")

Operating Temperature

–10 °C to +55 °C (+14 °F to +131 °F)

Operating Humidity

10%–95% RH (non-condensing)

Operating Altitude

Beneath 3,000 m (9,842.52 ft)

Power Consumption

Standby ≤ 2 W; working ≤ 6 W

Net Weight

0.34 kg (0.74 lb)

Gross Weight

0.58 kg (1.27 lb)

Manufacturer

Dahua Technology is a world-leading video-centric AIoT solution and service provider. With its ‘Dahua Think#’ corporate strategy, Dahua Technology focuses on two core businesses: City and Enterprise. The company firmly strengthens its technological strategies that include AloT and IoT digital intelligence platforms, comprehensively promoting the digital intelligence upgrading of cities and enterprises based on customer needs, and creating more value for the digital-intelligent transformation of various industries.
