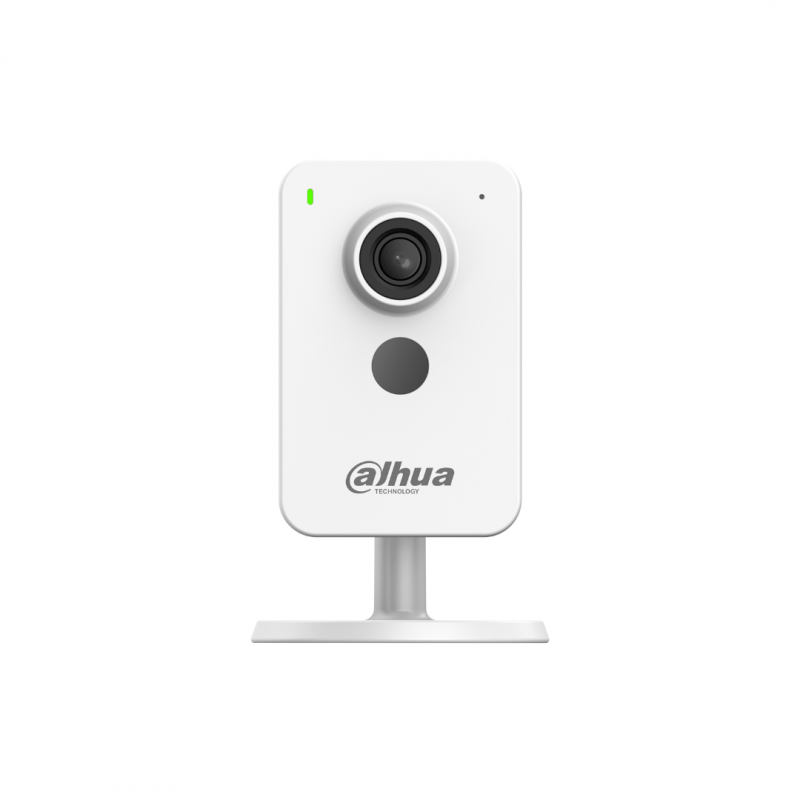

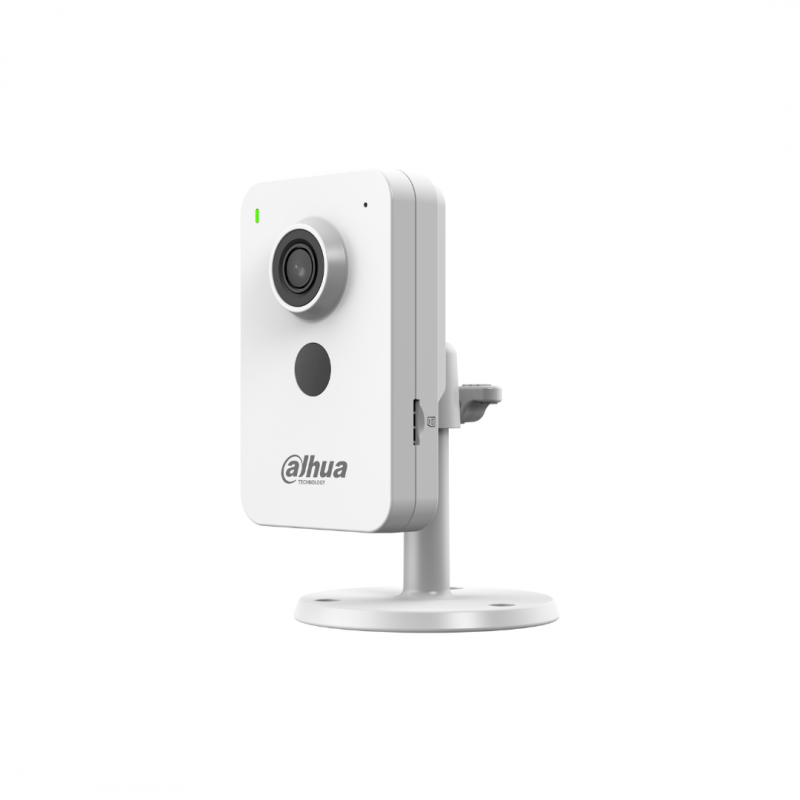

Dahua C4K-P-0280B CUBE 4MP compact IP camera - WiFi, PoE, AI

Video surveillance systems

Product reference: CAC4K-P-0280B

The camera captures clear and detailed images both during the day and at night.
AI-powered human and vehicle detection helps focus on important targets and reduces false alarms.
Integrated Wi-Fi and PoE provide flexible power options and stable network connectivity.
Bluetooth pairing enables quick and easy device setup.
Two-way audio support allows you to communicate anytime, from anywhere.
The web interface makes device management and configuration simple and intuitive.
Supports Micro SD card recording – a cost-effective storage solution.
Built-in AI chip ensures more accurate object detection.
Advanced H.265 video compression technology delivers high-quality footage while reducing data usage.

At stores prices may vary

Price:

€102.85

€85.00 tax excl.

Favourite

We have 10+ qty.
Delivery in 1-2 business days

Product information

The Cube Series, which is under the Dahua Wireless series, are cameras that are not only easy to install and operate, but also perform outstandingly and are cost-effective. They capture sharp, detailed images of scenes in high definition and offer powerful functions including AI human detection, privacy mode, and two-way talk. Information is synchronously sent to your phone to keep you up-to-date. These cameras are widely used in small and medium-sized settings such as small-sized retail stores.

Camera

Image Sensor

1/3" CMOS

Max. Resolution

2560 (H) × 1440 (V)

Illumination Distance

Up to 30 m (98.43 ft) (IR)

Illuminator Number

1 (IR LED)

Angle Adjustment

Pan: 0° to 360°
Tilt: -10° to 100°

Lens Type

Fixed-focal

Focal Length

2.8 mm; 3.6 mm

Max. Aperture

F2.0

Field of View

2.8 mm: H: 92°; V: 50°; D: 107°
3.6 mm: H: 75°; V: 41°; D: 88°

Intelligence

Human Detection

Yes

Audio and Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)

Video Frame Rate

Main stream: 2560 × 1440@(1-25/30 fps)
Sub stream: 640 × 360@(1-25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Video Bit Rate

H.264: 24 kbps–6144 kbps
H.265: 9 kbps–6144 kbps

Day/Night

Auto(ICR)/Color/B/W

WDR

Yes

Motion Detection

OFF/ON (4 areas, rectangular)

Image Rotation

0°/180°

Built-in MIC

Yes, built-in Mic

Built-in Speaker

Yes, built-in speaker

Audio Compression

PCM; G.711a; G.711Mu

Network

Network Port

RJ-45 (10/100 Base-T)

Wi-Fi

IEEE 802.11b/g/n/ax 2.412–2.472 GHz, 2.4 G

Wi-Fi Pairing

Bluetooth pairing

Storage

Micro SD card (support max. 256 GB)

Management Software

Smart PSS Lite;DMSS

Mobile Client

iOS;Android

Function

Abnormal Sound Alarm

Yes

General

Certifications

Power Supply

12 VDC/PoE

Power Consumption

Basic: 2.04 W (12 VDC); 4.7 W (PoE)
Max.: 2.89 W (12 VDC); 5.85 W (PoE)

Operating Temperature

–10 °C to +45 °C (+14 °F to +113 °F)

Operating Humidity

≤95% (RH), non-condensing

Camera Button

Reset button

Casing Material

Plastic

Product Dimensions

64 mm × 100 mm × 34 mm (2.52" × 3.94" × 1.34") (L × W × H)

Net Weight

0.11 kg (0.24 lb)

Features

Lens	2.8
Color	White
Resolution	4MP
IR distance	≤ 30 m

Manufacturer

Dahua Technology is a world-leading video-centric AIoT solution and service provider. With its ‘Dahua Think#’ corporate strategy, Dahua Technology focuses on two core businesses: City and Enterprise. The company firmly strengthens its technological strategies that include AloT and IoT digital intelligence platforms, comprehensively promoting the digital intelligence upgrading of cities and enterprises based on customer needs, and creating more value for the digital-intelligent transformation of various industries.
