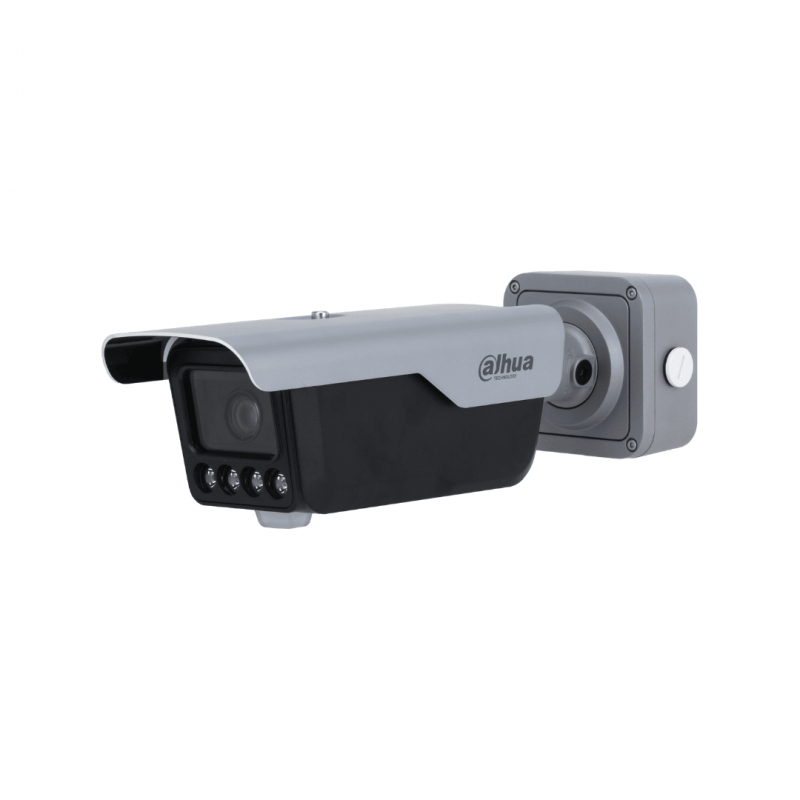

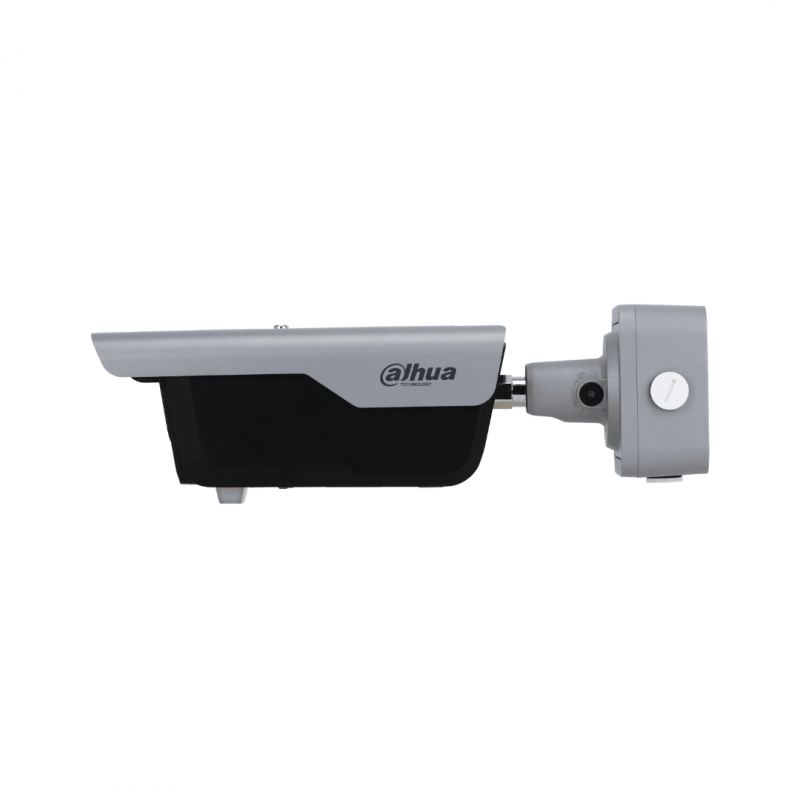

IP camera ITC413-PW4D-Z3, 8-32mm, 120km/h

Product reference: CAITC413-PW4D-Z3

> High-performance CMOS image sensor and processor that supports continuously extracting metadata 24/7.

> Adopts intelligent deep learning algorithms and supports recognition of unlicensed vehicles and the type, brand and color of vehicles.

> Built-in signal port, data port, communication port and remote controllers assist in controlling external devices such as entry and exit barriers.

> Built-in LED for simplified installation and commissioning.

> All-in-one structure with junction box and bracket, and it is also low power consumption.

> IP67 and IK10 rated.

> Supports intrusion and loitering detection and triggers light and voice alarms when perimeter events occur to actively deter targets. Custom audios can also be imported and edited.

> Easily adapts to scenarios

At stores prices may vary

Price:

€1,149.50

€950.00 tax excl.

Favourite

In manufacturer warehouse
Ask

Product information

Smart ANPR Camera DHI-ITC413-PW4D Series
Designed for vehicle recognition and enhanced security in various environments such as shopping malls, hospitals, schools, residential areas, office buildings, and stations.

Key Features:

Smart Algorithms:
Utilizes deep learning technology to recognize unlicensed vehicles, as well as vehicle type, brand, and color.

High-Quality Imaging:
Equipped with a high-end CMOS sensor featuring WDR technology and a high signal-to-noise ratio, delivering clear and detailed images 24/7.

Powerful Processor:
Real-time analysis and metadata extraction for both motorized and non-motorized vehicles, enabling efficient decision-making.

Intelligent Security:
Detects intrusion and loitering, triggers light and audio alarms, and supports custom audio message uploads.

Easy Installation:
All-in-one structure with bracket and junction box, integrated LED light, and a single network port for quick setup.

Broad Compatibility:
Built-in signal, data, and communication ports, along with remote control capabilities for managing external devices such as entry/exit barriers.

Environmental Resistance:
IP67 and IK10 rated – dustproof, waterproof, and vandal-resistant. Suitable for both indoor and outdoor use.

Versatile Lens:
Motorized vari-focal lens allows easy adaptation to different application scenarios.

Camera

Image Sensor

1/1.8" CMOS

Image Resolution

2688 × 1520

Electronic Shutter Speed

Auto/Manual 1/25 s–1/100,000 s

Max. Detection Speed

DHI-ITC413-PW4D-Z1, DHI-ITC413-PW4D-IZ1:80 km/h

DHI-ITC413-PW4D-Z3, DHI-ITC413-PW4D-IZ3:120 km/h

Min. Illumination

DHI-ITC413-PW4D-Z1,DHI-ITC413-PW4D-IZ1:
0.001 [email protected] (Color, 30 IRE)
0.0002 [email protected] (B/W, 30 IRE)
0 Lux (Illuminator on)
DHI-ITC413-PW4D-Z3,DHI-ITC413-PW4D-IZ3:
0.001 [email protected] (Color, 30 IRE)
0.0002 [email protected] (B/W, 30 IRE)
0 Lux (Illuminator on)

ROM

4 GB

RAM

1 GB

S/N Ratio

>56 dB

Scanning System

progressive scanning

Lens

Focal Length

DHI-ITC413-PW4D-Z1, DHI-ITC413-PW4D-IZ1:

2.7 mm–12 mm
DHI-ITC413-PW4D-Z3, DHI-ITC413-PW4D-IZ3:

8 mm–32 mm

Field of View

DHI-ITC413-PW4D-Z1, DHI-ITC413-PW4D-IZ1:
H: 92° (W)—46.1° (T)
V: 49° (W)—26.0° (T)
D: 109° (W)—52.8° (T)
DHI-ITC413-PW4D-Z3, DHI-ITC413-PW4D-IZ3:
H: 39.9° (W)—15.1° (T)
V: 21.8° (W)—8.5° (T)
D: 46.6° (W)—17.4° (T)

Focus Control

Auto, area focus, manual

Number of Lens

Lens Type

Motorized Vari-focal

Max. Aperture

DHI-ITC413-PW4D-Z1, DHI-ITC413-PW4D-IZ1:1.4
DHI-ITC413-PW4D-Z3, DHI-ITC413-PW4D-IZ3:1.6

Iris Control

DHI-ITC413-PW4D-Z1, DHI-ITC413-PW4D-IZ1:DC-Iris
DHI-ITC413-PW4D-Z3, DHI-ITC413-PW4D-IZ3:P-Iris

DORI Distance

Lens

Detect

Observe

Recognize

Identify

(DHI-ITC413-PW4D-Z1, DHI-ITC413-PW4D-IZ1)

60.4 m (198.16 ft)

24.2 m

(79.40 ft)

12.1 m

(39.70 ft)

6.0 m

(19.68 ft)

(DHI-ITC413-PW4D-Z1, DHI-ITC413-PW4D-IZ1)

128.7 m (422.24 ft)

51.5 m (168.96 ft)

25.7 m

(84.32 ft)

12.9 m

(42.32 ft)

(DHI-ITC413-PW4D-Z3, DHI-ITC413-PW4D-IZ3)

160.0 m (524.93 ft)

64.0 m (209.97 ft)

32.0 m (104.99 ft)

16.0 m (52.49 ft)

(DHI-ITC413-PW4D-Z3, DHI-ITC413-PW4D-IZ3)

406.9 m (1334.97 ft)

162.8 m (534.12 ft)

81.4 m (267.06 ft)

40.7 m (133.53 ft)

Illuminator

Illuminator Number

Illuminator On/Off Control

Auto, manual

Illuminator Type

DHI-ITC413-PW4D-IZ1, DHI-ITC413-PW4D-IZ3:IR (850 nm)
DHI-ITC413-PW4D-Z1, DHI-ITC413-PW4D-Z3:Dual Illuminators (730 nm IR/warm light)

Features

Lens	Motorized lens
Color	Black
Color	Grey
Camera type	Bullet
Camera type	ANPR
Features	Dual Illumination
