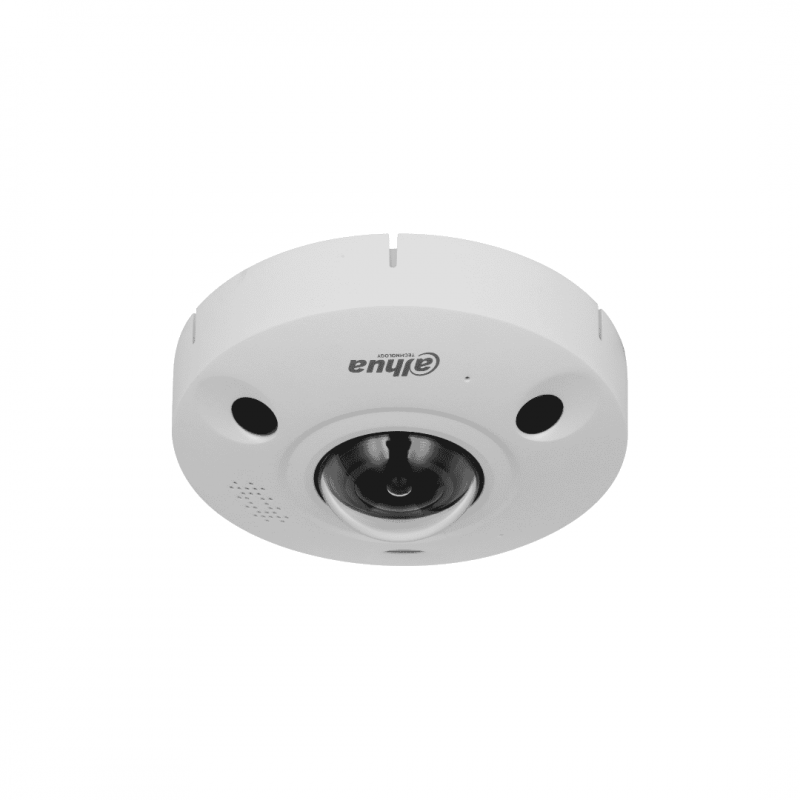

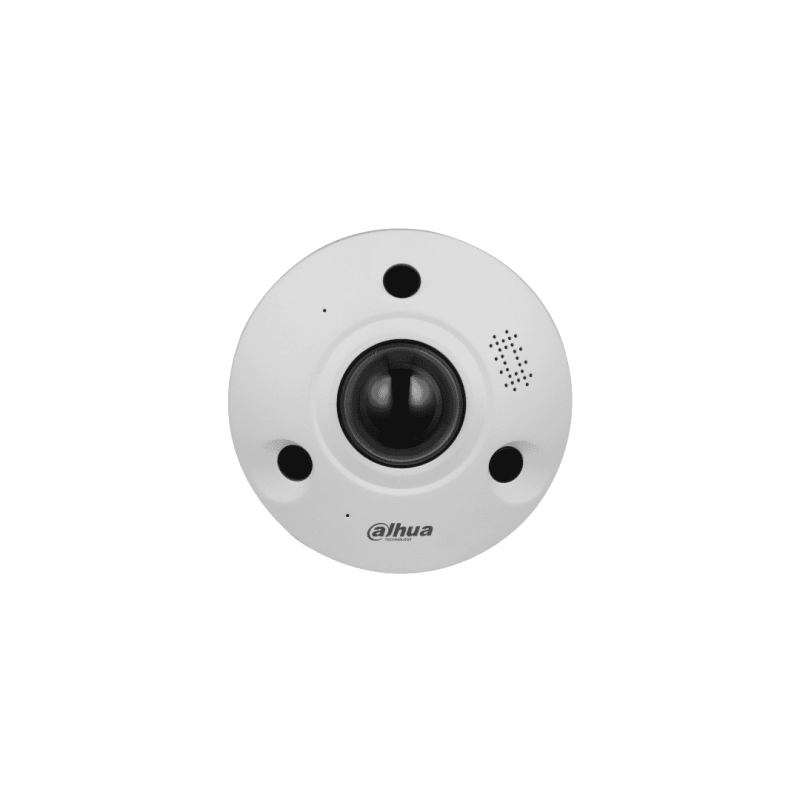

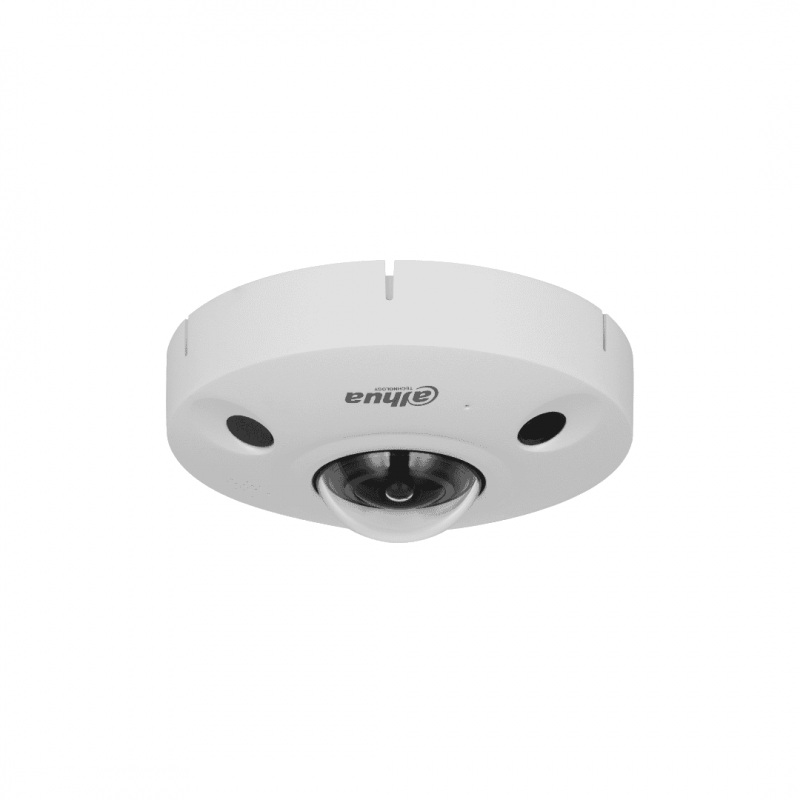

Fisheye Security camera EBW8842-AS

Video surveillance systems

Product reference: CAEBW8842-AS

> 8 MP 1/1.7" CMOS image sensor, low luminance, and high definition image.

> Outputs max. 8M (3280 × 2480) @25/30 fps.

> Built-in IR LED, and the max. illumination distance is 10 m.

> Intelligent monitoring: Intrusion, tripwire, heat map, and people counting.

> SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments.

> Alarm: 2 in, 2 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; built-in dual-array Mic and speaker.

> 12 VDC/PoE power supply.

> IP67 and IK10 protection.

At stores prices may vary

Price:

€1,300.75

€1,075.00 tax excl.

Favourite

We have 1 qty.
Delivery in 1-2 business days

Product information

Series Overview
With a fisheye lens, the Dahua Fisheye series cameras provide 360° surveillance and are widely used in various locations such as airports, shopping centers, banks, and hotels.

Functions

Smart H.265+ & Smart H.264+
Using an advanced scene-adaptive rate control algorithm, Dahua smart encoding technology achieves higher efficiency than H.265 and H.264, delivers high-quality video, and reduces storage and transmission costs.
Fisheye VR
With intelligent algorithms, Dahua Fisheye VR technology provides an interactive 3D dynamic view through fisheye images. It supports multiple interactive modes such as original, bowl, cylinder, and asteroid, offering enhanced interactivity.
Heat Map
Dahua heat map technology is used to visualize crowd density and appearance probability. Different colors represent the crowd distribution. Typically, this shows statistics of people numbers across space and time dimensions.
People Counting
Powered by deep learning algorithms, Dahua People Counting technology tracks and processes moving people to accurately count entries, exits, and people remaining in an area. When integrated with a management platform, it outputs detailed reports to meet user requirements.
Protection (IP67, IK10, Wide Voltage)
IP67: The camera passes strict dust and immersion tests. It is dust-proof and remains fully functional after being submerged in 1 m of water for 30 minutes.
IK10: The enclosure withstands more than 5 impacts from a 5 kg hammer dropped from 40 cm (impact energy: 20 J).
Wide Voltage: The camera supports ±30% input voltage tolerance (for some power supplies), making it highly suitable for outdoor environments with unstable power supply.

Camera

Image Sensor

1/1.7" CMOS

Max. Resolution

3280 (H) × 2480 (V)

ROM

4 GB

RAM

2 GB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.01 [email protected] (Color, 30 IRE)

0.001 [email protected] (B/W, 30 IRE)

0 Lux (Illuminator on)

S/N Ratio

> 56 dB

Illumination Distance

up to 10 m (32.81 ft) (IR)

Illuminator On/Off Control

Auto/Manual

Illuminator Number

3 (IR LED)

Lens

Lens Type

Fixed-focal

Lens Mount

M12

Focal Length

1.85mm

Max. Aperture

F2.0

Field of View

Horizontal: 185°;

Vertical: 180°

Iris Control

Fixed

Close Focus Distance

0.4 m (1.31 ft)

DORI Distance

Detect

Observe

Recognize

Identify

40.0 m

(131.23 ft)

16.0 m

(52.49 ft)

8.0 m

(26.2 ft)

4.0 m

(13.12 ft)

DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.

Smart Event

Heat Map

Yes

Professional, intelligent

IVS (Perimeter Protection)

Intrusion; tripwire

People Counting

Supports 4 rules to count the number of people entering, exiting, and staying separately. It will trigger alarm linkage when the number of people who entering, exiting or staying exceeds the threshold. It can display and export reports based on year, month, week, day or custom time.

Supports 4 rules to count the number of people in area and will trigger alarm linkage when the average strand time or people number in the area exceeds the threshold. It can display and export reports based on month, week, day or custom time

Smart Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Fisheye

Installation

Ceiling mount; wall mount; ground mount

Decoding Mode

Front-dewarp; Back-dewarp; Front-dewarp+Back-dewarp

Display Mode

Front-dewarp (hardware decoding):1O; 1P; 2P; 1R; 2R; 4R; 1O+ 3R
*O: Fisheye image view; P: Panoramic image view; R: Region image view
Back-dewarp (software decoding): fisheye view; 360° panoramic view + PTZ; dual-channel 180° panoramic view; fisheye + 2PTZ; fisheye + 3PTZ; fisheye + 4PTZ; 360° panoramic view + 6PTZ; fisheye + 8PTZ; 180° panoramic view; 180° panoramic view + 3PTZ; 180° panoramic view + 4PTZ; 180° panoramic view + 8PTZ; VR mode (panorama; semi-circle; cylinder; asteroid)

Video

Video Compression

H.265; H.264; H.264H; MJPEG (Only supported by the sub stream)

Smart Codec

Smart H.265+; Smart H.264+

Video Frame Rate

Main stream: 3280 × 2480@(1–25/30 fps)

sub stream: 704 × 576@(1–25/30 fps)

third stream: 1280 × 960@(1–25/30 fps)

Fisheye mode:

1O (3280 × 2480)

1P (4096 × 1024)

2P (2432 × 2432)

1R (1216 × 1216)

2R (2432 × 2432)

4R (2432 × 2432)

1O + 3R (2432 × 2432)

*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability

3 streams

Resolution

3280 × 2480; 2880 × 2160; (3M) 2048 × 1536; 1.3M (1280 × 960); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H264: 8 kbps–16384 kbps

H265: 3 kbps–13891 kbps

Day/Night

Auto(ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

DWDR

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Defog

Yes

Privacy Masking

4 areas

Audio

Built-in MIC

Yes, built-in dual Mic

Audio Compression

PCM; G.711A; G.711Mu; G.726; G.723

Alarm

Alarm Event

No SD card; SD card full; SD card durability warning; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; people counting in area; stay detection; people counting; security exception

Network

Network Port

RJ-45 (10/100/1000 Base-T)

SDK and API

Yes

Cyber Security

Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade

Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP

Interoperability

ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P (Only supported by general version)

User/Host

Storage

FTP; SFTP; Micro SD card (support max. 256 G); NAS

Browser

IE: IE11, IE10

Chrome: 48.0.2564.116

Firefox: 48.0.2

Edge: 42.17134.1.0

Management Software

Smart PSS; DSS; DMSS

Certification

Certifications

CE-LVD: EN62368-1

CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

FCC: 47 CFR FCC Part 15, Subpart B

UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14

Port

Audio Input

1 channel (RCA port)

Audio Output

1 channel (RCA port)

Alarm Input

2 channel in: wet contact,5mA 3V–5 VDC

Alarm Output

2 channels out: dry contact,1,000mA 30 VDC/500mA 50 VDC

Power

Power Supply

12 VDC/POE+ (802.3at)

Power Consumption

Basic: 6.5 W (12 VDC); 6.1 W (PoE)

Max. (ICR + IR intensity): 13 W (12 VDC); 13.9 W (PoE)

Heating: 3 W (12 VDC); 3 W (PoE)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

≤95%

Storage Temperature

–30 °C to +70 °C (–22 °F to +158 °F)

Protection

IP67; IK10

Structure

Casing

Metal

Product Dimensions

59.8 mm × Φ149.8 mm (2.35" × Φ5.90")

Net Weight

0.79 kg (1.74 lb)

Gross Weight

1.21 kg (2.67 lb)

Features

Color	White
Resolution	4K
Camera type	Fisheye
IR distance	≤ 10 m
AI functionality	Pro AI
Features	Support MicroSD ≤ 256 GB
Features	Su LED apšvietimu

Manufacturer

Dahua Technology is a world-leading video-centric AIoT solution and service provider. With its ‘Dahua Think#’ corporate strategy, Dahua Technology focuses on two core businesses: City and Enterprise. The company firmly strengthens its technological strategies that include AloT and IoT digital intelligence platforms, comprehensively promoting the digital intelligence upgrading of cities and enterprises based on customer needs, and creating more value for the digital-intelligent transformation of various industries.
