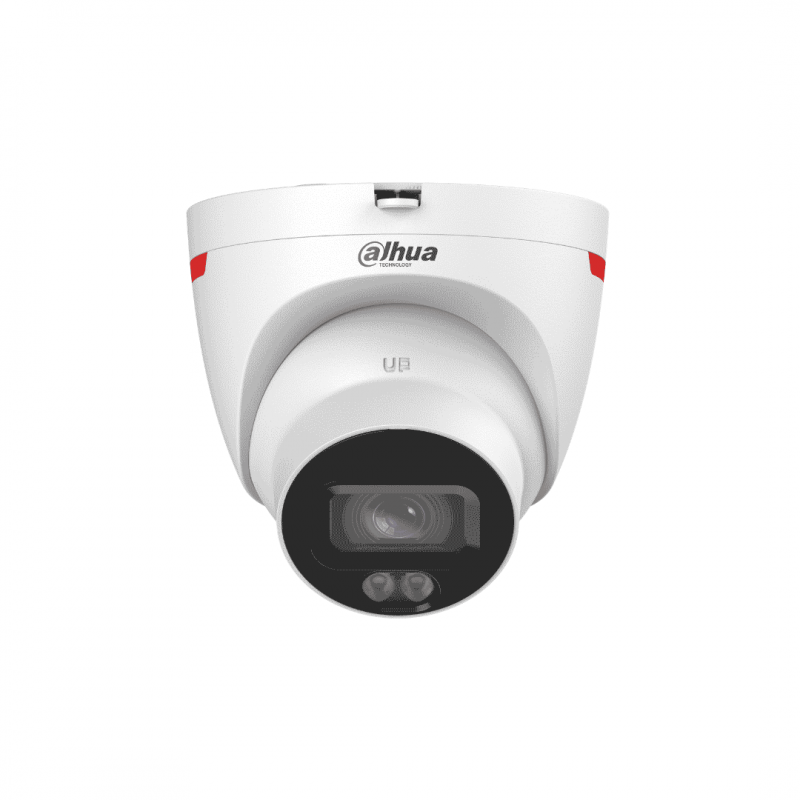

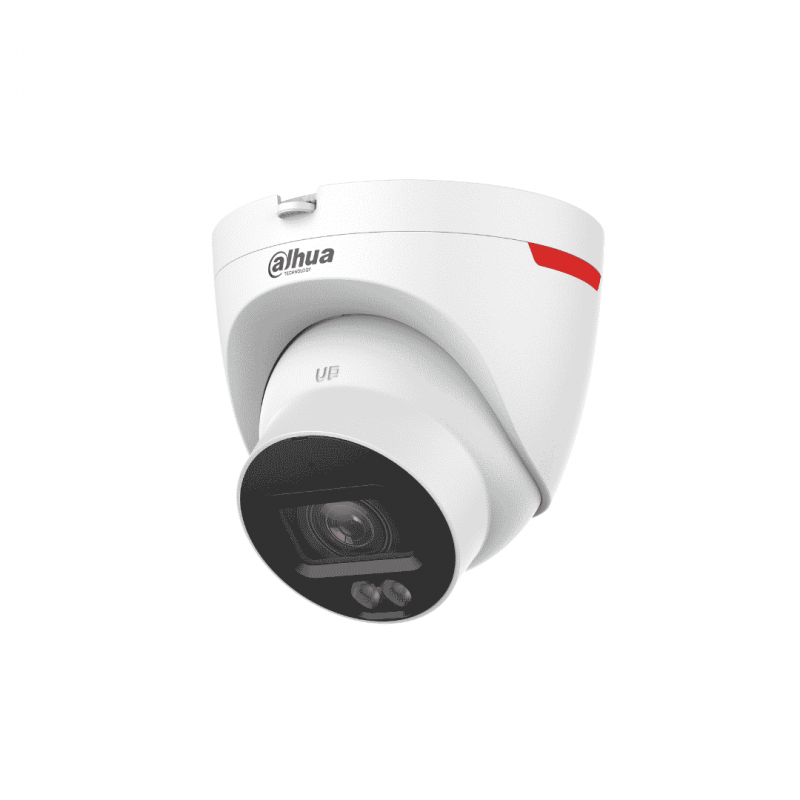

IP camera HDW2449T-S-LED-0280B-PRO-S1, 4Mp, 2.8mm

Video surveillance systems

Product reference: CAHDW2449TSLED28PROS

4 MP 1/1.8" CMOS sensor delivers high-definition images even in low-light conditions.
Supports up to 4 MP (2688 × 1520) @20 fps and 2560 × 1440 @25/30 fps.
H.265 codec provides efficient video compression and ultra-low bit rate.
Built-in warm light provides up to 30 m illumination distance in the dark.
SMD Plus accurately detects humans and vehicles.
Intrusion and tripwire detection provide effective security monitoring.
Supports WDR, 3D NR, HLC, BLC and ROI image enhancement functions.
Supports up to 256 GB Micro SD card and features a built-in microphone.
12 VDC / PoE power supply enables convenient installation.
IP67 protection provides resistance to dust and water.

At stores prices may vary

Price:

€165.77

€137.00 tax excl.

Favourite

We have 10+ qty.
Delivery in 1-2 business days

Product information

IP camera HDW2449T-S-LED-0280B-PRO-S1, 4Mp, 2.8mm

Dahua WizSense 2 Series 4 MP IP Camera

Dahua WizSense 2 Series network camera features an advanced deep learning algorithm that provides intelligent security functions, including perimeter protection and smart motion detection. With advanced low-light technologies, the camera delivers high-quality images and accurate monitoring performance in various environments.

Key Features

WizColor Technology
Dahua WizColor Technology combines AI-ISP, a large pixel size sensor and a large aperture lens to capture vivid, full-color images during nighttime. By utilizing available weak light sources such as moonlight and city lights, the camera preserves fine details and reduces motion blur even in low-light conditions.

AI-ISP Image Optimization
AI ISP technology automatically adapts to different scenes, improving image quality and enhancing important details for clearer monitoring.

4 MP High-Definition Image
The 1/1.8" CMOS image sensor provides high-quality images even in low illumination conditions. The camera supports up to 4 MP (2688 × 1520) @20 fps and 2560 × 1440 @25/30 fps.

SMD Plus Smart Motion Detection
Dahua Smart Motion Detection technology uses intelligent algorithms to classify targets and filter unnecessary motion alarms, providing more accurate security alerts.

Perimeter Protection
Deep learning-based perimeter protection accurately detects humans and vehicles, reducing false alarms caused by non-target objects in restricted areas.

Smart H.265+ & Smart H.264+ Compression
Advanced encoding technology improves compression efficiency, reduces storage requirements and lowers transmission costs while maintaining high video quality.

Reliable Outdoor Protection
With IP67 protection, the camera is resistant to dust and water. Wide voltage support allows stable operation in environments with unstable power supply. The camera supports 12 VDC and PoE power supply for flexible installation.

Camera

Image Sensor

1/1.8" CMOS

Max. Resolution

2688 (H) × 1520 (V)

ROM

128 MB

RAM

256 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.0001 [email protected]

S/N Ratio

>56 dB

Illumination Distance

Up to 30 m (98.43 ft) (Warm light)

Illuminator On/Off Control

Auto;Manual

Illuminator Number

2 (Warm light)

Angle Adjustment

Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Lens Mount

M16

Focal Length

2.8 mm; 3.6 mm

Max. Aperture

F1.0

Field of View

2.8 mm: H: 105°; V: 57°; D: 125°
3.6 mm: H: 89°; V: 48°; D: 105°

Iris Control

Fixed

Close Focus Distance

2.8 mm: 2.0 m (6.56 ft)
3.6 mm: 3.0 m (9.84 ft)

DORI Distance

Lens	Detect	Observe	Recognize	Identify
2.8 mm	57.9 m ( 189.96 ft)	23.2 m ( 76.12 ft)	11.6 m ( 38.06 ft)	5.8 m ( 19.03 ft)
3.6 mm	70.3 m ( 230.64 ft)	28.1 m ( 92.19 ft)	14.1 m ( 46.26 ft)	7.0 m ( 22.97 ft)
*DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.

Intelligence

IVS (Perimeter Protection)

Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human);

SMD

SMD Plus

Smart Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)

Smart Codec

Smart H.265+; Smart H.264+

Video Frame Rate

Main stream: 2688 × 1520@(1–20 fps) /2560 × 1440@(1–25/30 fps)
sub stream: 704 × 576 (1–25 fps)/704 × 480@(1–30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Streaming Capability

2 streams

Resolution

4M (2688 × 1520/2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control

VBR;CBR

Video Bit Rate

H.264: 32 kbps–6144 kbps;
H.265: 12 kbps–6144 kbps

Day/Night

Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto/Manual

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Smart Illumination

Yes

Defog

Yes

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 2688 ×1520 resolution and lower)

Mirror

Yes

Privacy Masking

4 areas

LDC

Yes

Audio

Built-in MIC

Yes, built-in Mic

Audio Compression

G.711a; G.711Mu; PCM; G.726

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; SMD; security exception

Network

Network Port

RJ-45 (10/100 Base-T)

SDK and API

Yes

Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; P2P; Bonjour; Auto Registration

Interoperability

ONVIF (Profile S & Profile G & Profile T & Profile M); CGI

User/Host

20 (Total bandwidth: 48 M)

Storage

FTP; SFTP; Micro SD card (support max. 256 GB); NAS

Browser

IE; Chrome; Firefox

Management Software

Smart PSS Lite; DSS; DMSS

Mobile Client

iOS;Android

Security

Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade;Session security;Security warning

Certification

Certifications

CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;

Power

Power Supply

12 VDC (±30%); PoE (802.3af)

Power Consumption

Basic: 1.7 W (12 VDC); 2 W (PoE);
Max.: 4.9 W (12 VDC); 5.5 W (PoE) (H.265+ intelligence on + WDR + illuminator intensity)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

≤95% (RH), non-condensing

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Storage Humidity

≤95% (RH), non-condensing

Protection

IP67

Anti-corrosion Level

Basic Protection
*The products are designed for general use and are applicable even in areas with no specific requirements for anti-corrosion protection.

Structure

Casing Material

Inner core: Metal;
Cover: Plastic

Product Dimensions

109.5 mm × Φ109.9 mm (4.31" × Φ4.33")

Net Weight

0.39 kg (0.86 lb)

Gross Weight

0.56 kg (1.23 lb)

Features

Lens	2.8
Color	White
Resolution	4MP
Camera type	Dome
IR distance	≤ 30 m
AI functionality	Lite AI
Features	Build-in Mic
Features	Support MicroSD ≤ 256 GB
