WallSwitch Power relay to control 110/230 V~ power supply remotely

Wireless automation and smart home devices

Product reference: AJWallSwitch

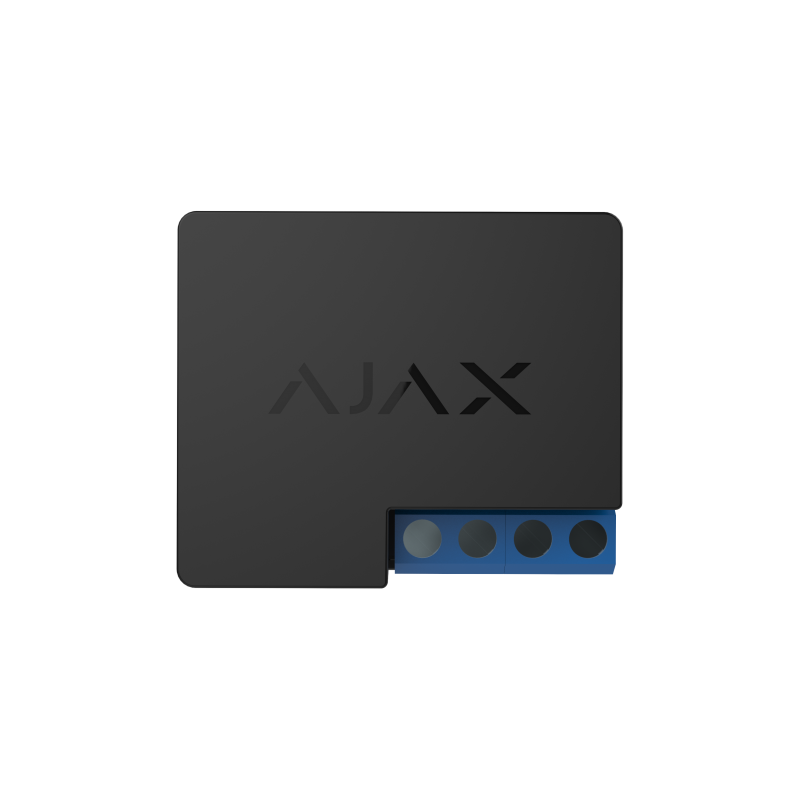

WallSwitch power relay to control 110/230 V~ power supply remotely.

At stores prices may vary

Price:

€58.08

€48.00 tax excl.

Favourite

We have 1 pcs
Delivery in 1 business days

Product information

The device connects directly to the 110 V~/230 V~ source and closes/opens the circuit on command. The relay can handle loads of up to 3 kW, which is enough to connect a very power-hungry device. Thanks to WallSwitch, this feature of the device may become known — it displays power consumption in the Ajax app.

Protects devices against overcurrent and voltage surges
Operates in bistable or pulse modes
Allows controlling electricity consumption

Tech specs

Classification: Radio channel relay unit
Device type: Remote-controlled
Installation method: Into wall plate
Compatibility: Operates with all Ajax hubs, range extenders
Actuating element: Relay
Voltage protection: For 230 V~ mains: maximum — 264 V, minimum — 161 V; For 110 V~ mains: maximum — 126 V, minimum — 77 V
Relay service life: 200,000 switch-ons
Maximum load current 13 A
Maximum current protection: Yes (13 A)
Maximum temperature protection >65°C
Permissible power: Resistive load at 230 V — up to 3 kW; Resistive load at 110 V — up to 1.5 kW
Electric power meter function: Available
Energy consumption parameter check: Current, voltage, power consumption
Alarm signal delivery time 0.15 s
Power supply 110−230 V±10% 50/60 Hz
Communication range with central unit — up to 1,000 m in an open space; Two-way communication between devices
Operating temperature range: From 0°С to +64°С
Permissible humidity: Up to 75%
Anti-sabotage: Protection against fraud; Jamming detection;
Protection class of body IP20
Remote setting and testing +
Dimensions 39 × 33 × 18 mm
Weight 30 g
