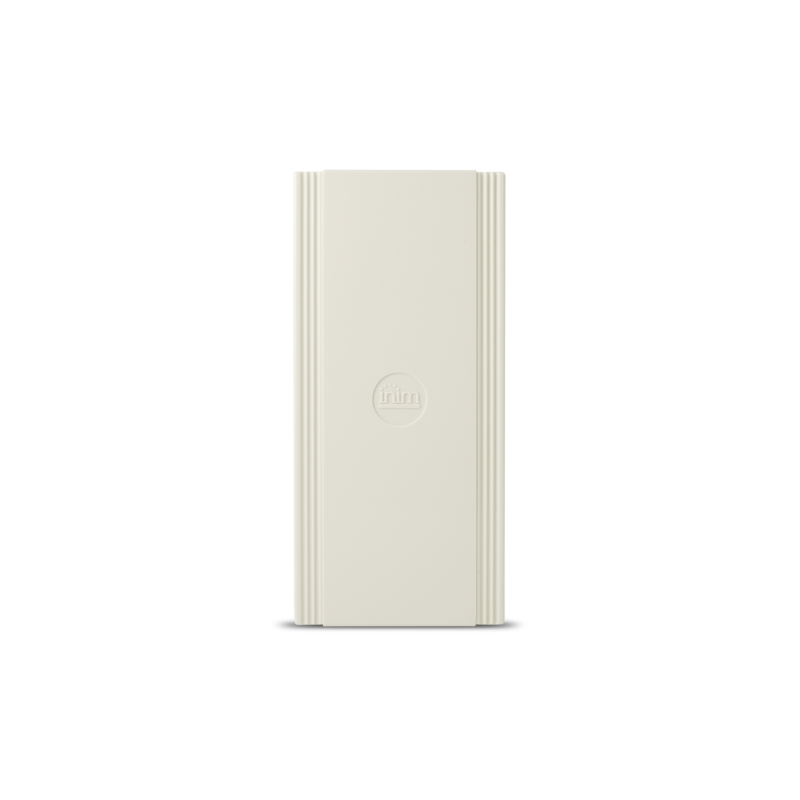

Receiver/transmitter Air2-BS200/50

Wireless System Air2

Product reference: BSBS200/50

Receiver/transmitter (two-way communication);
Operating frequency 868MH;
I-Bus interface;
Supports 50 devices (magnetic contacts and PIR sensors);
Supports up to 100 remote controls;
Measurments 171x80x27 mm.

Technical features of the AIR2-BS200 Transreceiver
Wireless transmission	Two-way
Control panel connection	4 wires via the I-BUS
Manageable wireless field devices (magnetic contacts or detectors)	50 (Air2-BS200/50), 30 (Air2-BS200/30), 10 (Air2-BS200/10)
Manages wireless signals (inputs and outputs)	50 - simulates up to 10 Flex5 expansion boards(Air2-BS200/50) 10 - simulates up to 2 Flex5 expansion boards (Air2-BS200/10)
Wireless keys supported (KF100)	100 (Air2-BS200/50), 50 (Air2-BS200/30), 30 (Air2-BS200/10)
Manageable Keypads (Aria/W) and Sounderflashers (Hedera)	4
Device mapping to control panel	On terminals
Wireless key mapping to control panel	On tag and card
Protections	Dislodgement and open cover
Supervision	Wireless-programmable Supervision Time
Dimensions (HxWxD)	171x80x27mm
Weight	130g

Manufacturer

Inim develops state-of-the-art systems for antintrusion, fire detection, home automation and emergency lighting. Integrated systems of the newest design that protect and control automatically residential, commercial and institutional buildings. Inim innovates to simplify the life of the installer and the end-user by means of devices that are both easy to install and use. From design to production, from testing to marketing, every Inim product is made in Italy to be appreciated in the world.
