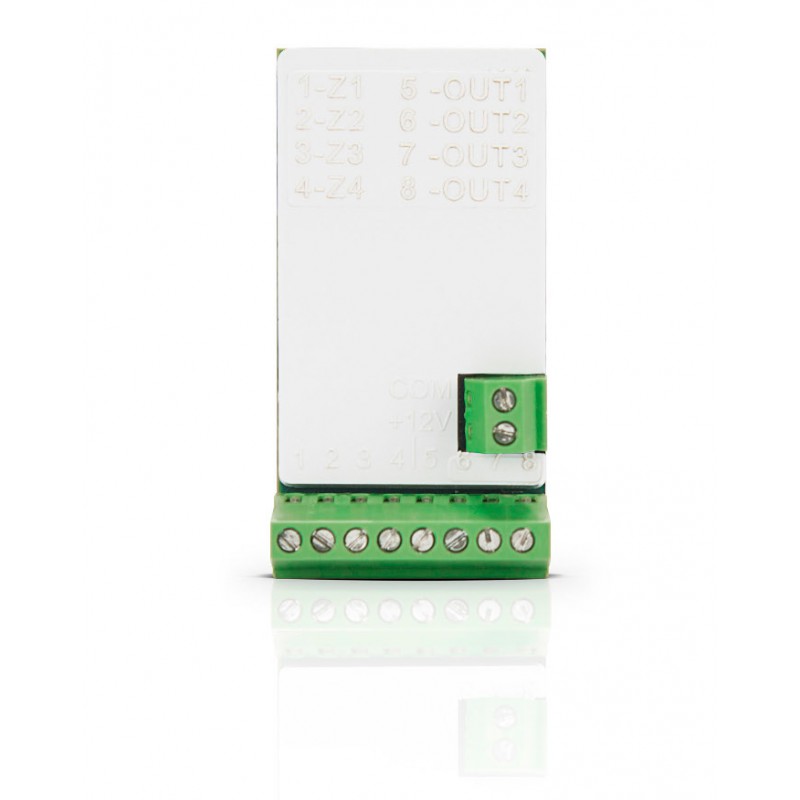

ACX-210 Miniature wireless expander of wired zones/outputs

Wireless System

Product reference: PCACX-210

The ACX-210 module makes it possible to use wired devices (detectors, sirens, etc.) in the ABAX 2/ABAX wireless system. It has 4 programmable zones with support for the NO and NC type wire detectors and EOL, 2 EOL configurations, as well as 4 programmable OC type wired outputs.

At stores prices may vary

Price:

€35.26

€29.14 tax excl.

Favourite

Product information

The device is supplied with voltage in the range of 4-24 V DC.

ACX-210 settings are configured and its firmware updated remotely. In the ABAX 2 system, two-way radio communication is encrypted using is AES encrypted.

Operating temperature range

-10°C...+55°C

Supply voltage

4...24 V DC

Standby mode current consumption

30 mA

Max. current consumption

35 mA

Weight

10 g

Maximum humidity

93±3%

Operating frequency band

868,0 ÷ 868,6 MHz

Dimensions

21 x 41 x 13 mm

Environmental class according to EN50130-5

Complied with standards

EN 50130-4, EN 50130-5, EN 50131-1, EN 50131-3, EN 50131-5-3

Security grade according to EN50131-3

Grade 2

Radio communication range (in open area) for ACU-120

up to 500 m

Radio communication range (in open area) for ACU-270

up to 500 m

Radio communication range (in open area) for ACU-220

up to 2000 m

Radio communication range (in open area) for ACU-280

up to 1400 m

Low-current outputs, OC type

50 mA / 12 V DC
