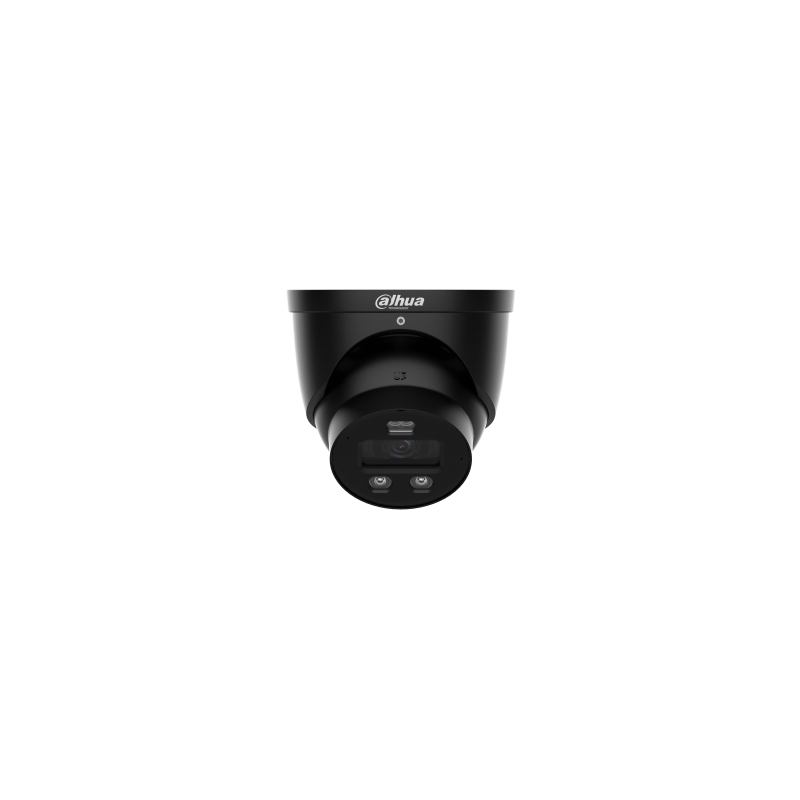

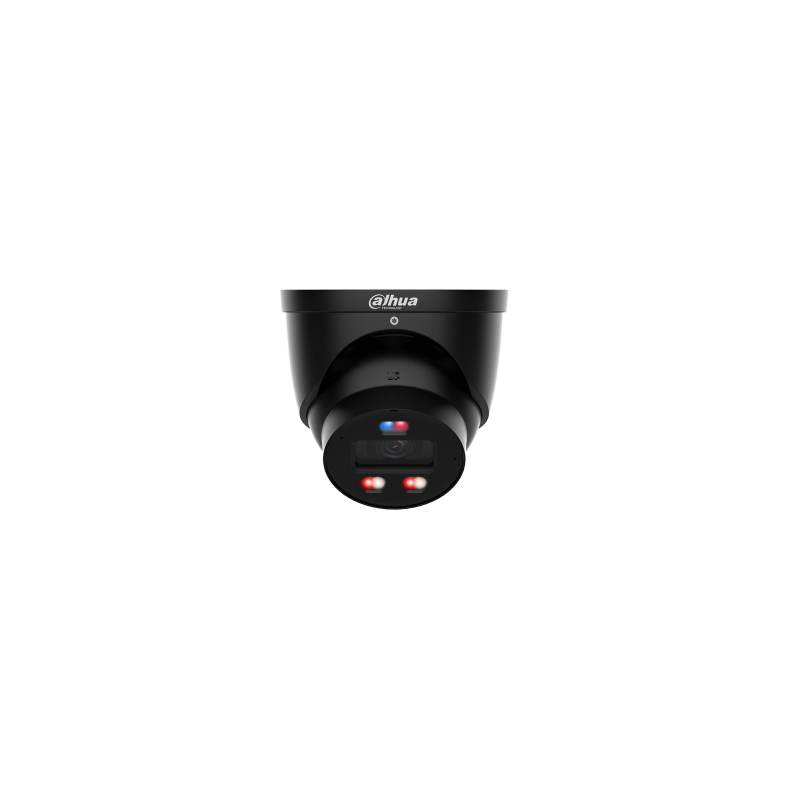

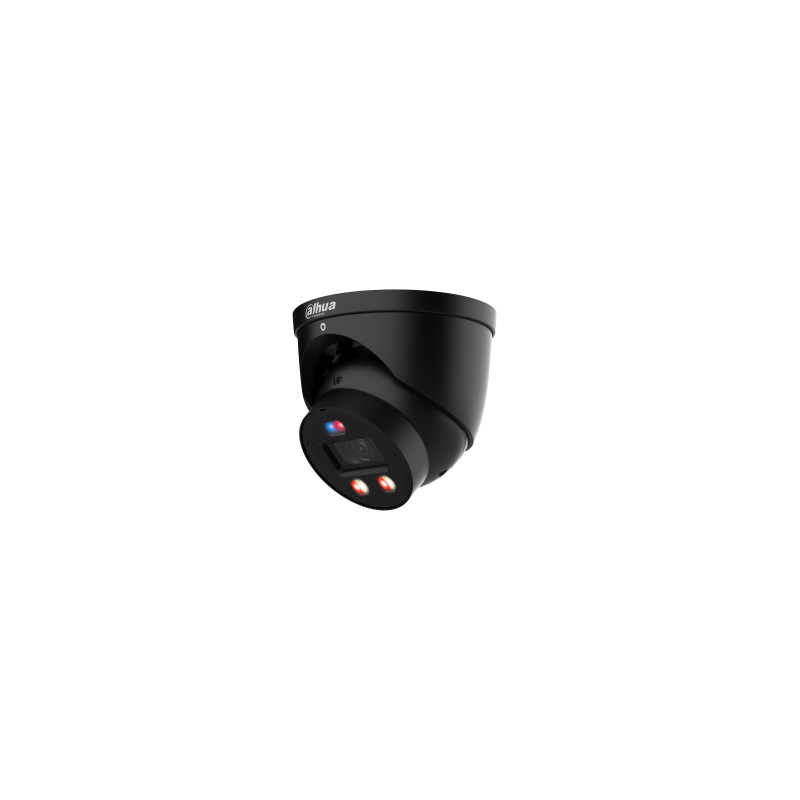

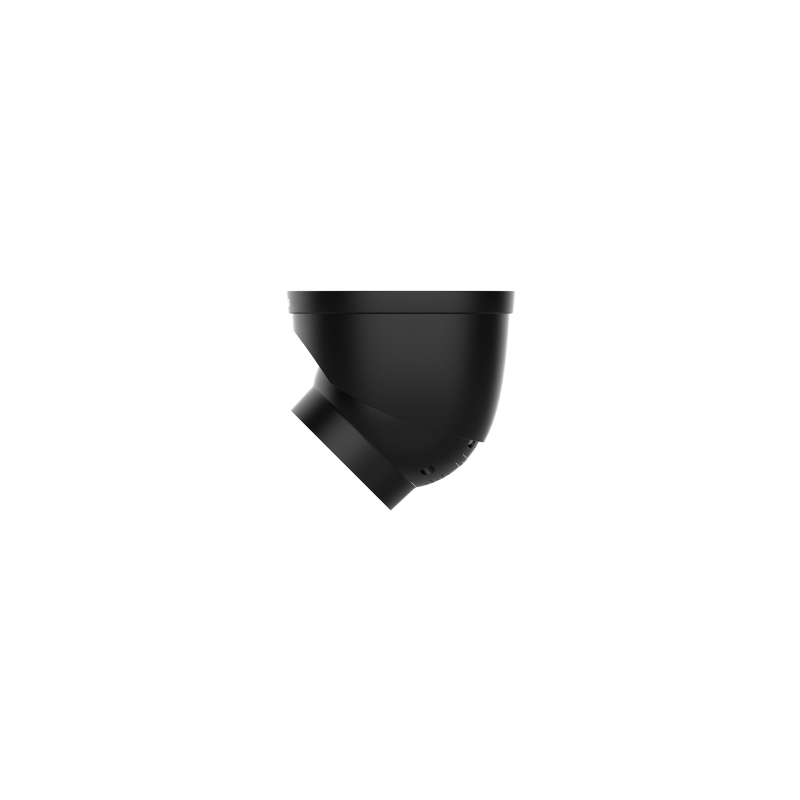

IP Camera HDW3849H-AS-PV-0280B-PRO, 8Mp, 2.8mm, WizColor, BLACK

Dahua IP videonovērošanas sistēma

Preces kods: CAHDW3849HASPV28PROB

> 8-MP (3840 ×2160) 1/1.8" CMOS image sensor, high definition image.

> H.265 codec, high compression rate, ultra-low bit rate.

> Built-in multi-core light, the max. IR distance is 30 m and the max. warm light distance is 30 m.

> Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human).

> Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.

> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 G Micro SD card; built-in dual Mic; 1-ch speaker; support two-way talk.

> 12 VDC/PoE power supply.

> Sound and light alarm (red and blue lights).

Lasīt vairāk

Cena veikalā var atšķirties

Cena:

€405,35

€335,00 bez PVN

Saglabāt

Mums ir 50+ gab.
Piegāde 1-2 d.

Preces informācija

IP Camera HDW3849H-AS-PV-0280B-PRO, 8Mp, 2.8mm, WizColor, BLACK

Camera Specifications

Camera

Image Sensor	1/1.8" CMOS
Max. Resolution	3840 (H) × 2160 (V)
ROM	256 MB
RAM	2 GB
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual 1/3 s–1/100,000 s
Min. Illumination	0.0008 [email protected] (Color), 0.0004 [email protected] (B/W), 0 lux (Illuminator on)
S/N Ratio	>56 dB
Illumination Distance	Up to 30 m (IR & Warm light)
Illuminator Number	2 (Multi-core IR + warm light)
Angle Adjustment	Pan: 0°–360°, Tilt: 0°–78°, Rotation: 0°–360°

Lens

Lens Type	Fixed-focal
Lens Mount	M16
Focal Length	2.8 mm / 3.6 mm
Max. Aperture	F1.0
Field of View	2.8 mm: H: 109°, V: 59°, D: 131° 3.6 mm: H: 93°, V: 50°, D: 111°
Iris Control	Fixed
Close Focus Distance	2.8 mm: 3.2 m, 3.6 mm: 4.4 m

DORI Distance

Lens	Detect	Observe	Recognize	Identify
2.8 mm	82 m	32.8 m	16.4 m	8.2 m
3.6 mm	100 m	40 m	20 m	10 m

Intelligence

IVS	Intrusion, tripwire with classification of human and vehicle
SMD	SMD 4.0
AcuPick	Deep learning based search for people and vehicles
AI SSA	Automatically adjusts image parameters via deep learning
Smart Search	Works with NVR for refined search

Video

Compression	H.265, H.264, MJPEG (sub-stream)
Smart Codec	Smart H.265+, Smart H.264+
AI Coding	AI H.265/AI H.264 (≥25% compression rate)
Frame Rate	Main: 3840×2160@1-30 fps; Sub/Third: 1920×1080@1–30 fps
Streams	3
Bit Rate	3–16384 kbps
WDR	120 dB

Audio & Alarm

Mic	Built-in dual Mic
Speaker	Built-in speaker
Audio Formats	PCM, G.711a/u, G.726, G.723
Alarm In/Out	1 in / 1 out (wet contact)

Network & Storage

Port	RJ-45 (10/100 Base-T)
Protocols	IPv4/IPv6, HTTP, TCP, RTSP, FTP, etc.
ONVIF	Profile S/G/T
Users	20 (64 Mbps total bandwidth)
Storage	Micro SD (max 512 GB), FTP/SFTP, NAS
Software	Smart PSS Lite, DSS, DMSS, DoLynk Care
Mobile	iOS, Android

Power & Environment

Power Supply	12 VDC / PoE
Power Consumption	Basic: 4.1 W (12V), Max: 8.2 W (12V)
Operating Temp	–40 °C to +60 °C
Humidity	≤95%
Protection	IP67

Physical

Casing	Metal
Dimensions	Φ122.0 mm × 116.1 mm
Weight	Net: 0.8 kg, Gross: 1.0 kg

Raksturojums

Krāsa	Melna
Izšķirtspēja	8MP (4K)
Kameras tips	Kupola (dome)
Produkta klase	PRO
Priekšrocības	Integrēts mikrofons
