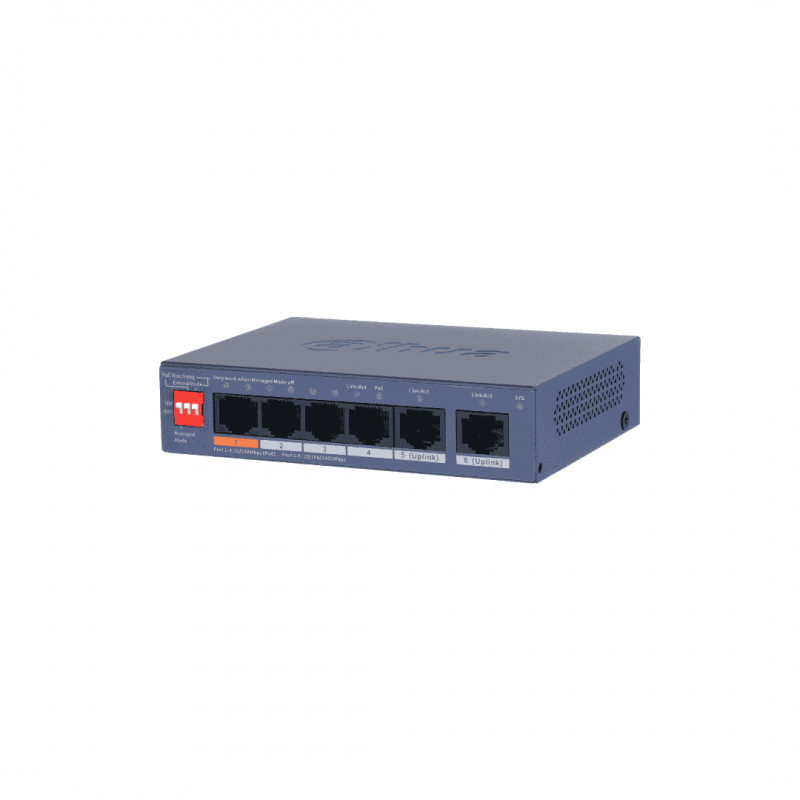

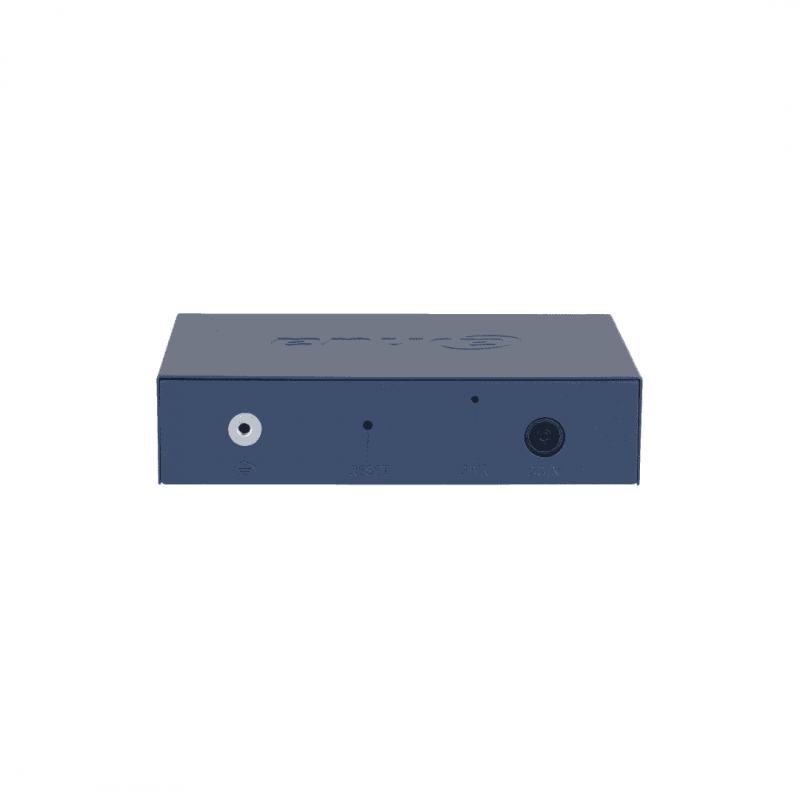

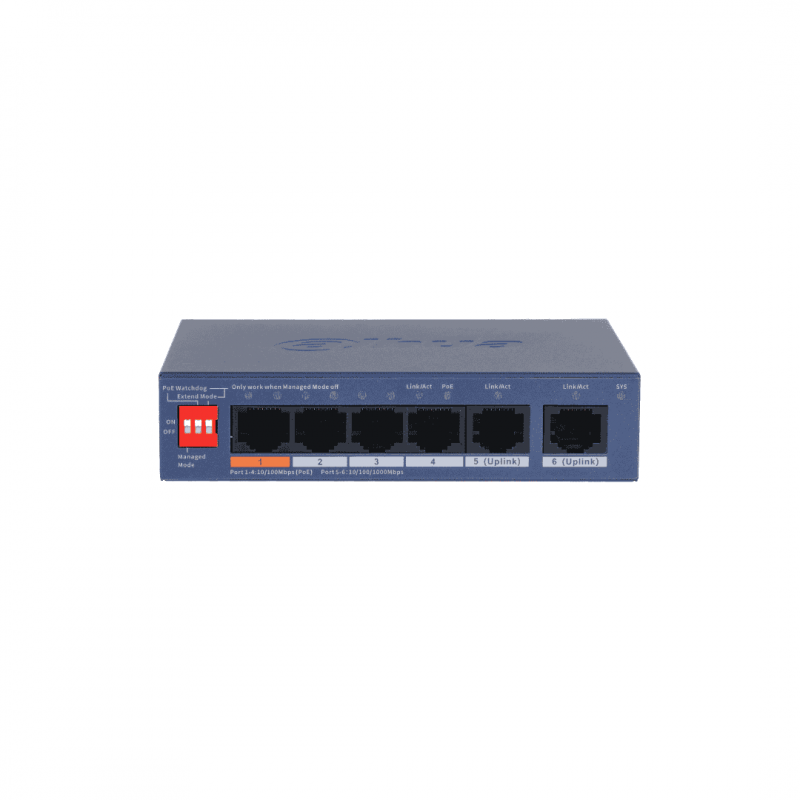

Switch CS4006-4ET2GT-60, 4x100Mbps, 2x1000Mbps, PoE 60W (Dolynk care)

Komutatori

Preces kods: KSCS4006-4ET2GT-60

> 4 × RJ45 10/100 Mbps PoE ports, 2 × RJ45 Gigabit ports.

> 60 W total PoE budget, 802.3af/at on all PoE ports, additional Hi-PoE on orange port.

> DIP switch to fast turn on/off working mode of Cloud-Managed, PoE Watchdog, Long Distance PoE.

> Wide operating temperature ranging from –10 °C to 55 °C.

> Supports VLAN and loop protection.

> WEB-managed and centralized cloud management through the DoLynk App and performs real-time monitoring of the network.

> Easy config to auto detect and set up network and security systems.

Lasīt vairāk

Cena veikalā var atšķirties

Cena:

€64,13

€53,00 bez PVN

Saglabāt

Mums ir 50+ gab.
Piegāde 1-2 d.

Preces informācija

Switch CS4006-4ET2GT-60, 4x100Mbps, 2x1000Mbps, PoE 60W (Dolynk care)

Category	Feature	Description
Layer	Layer	2
Switching Capacity	Switching Capacity	4.8 Gbps
Packet Forwarding Rate	Packet Forwarding Rate	3.57 Mpps
Description of Function Slots	Port Slots	Port 1-4: 4 × RJ-45 10/100 Mbps (PoE) Port 5-6: 2 × RJ-45 10/100/1000 Mbps (uplink)
Operating Temperature	Operating Temperature	–10 °C to +55 °C (+14 °F to +131 °F)
Operating Humidity	Operating Humidity	10%–90% RH, non-condensing
Storage Temperature	Storage Temperature	–40 °C to +70 °C (–40 °F to +158 °F)
Storage Humidity	Storage Humidity	5%–95% RH, non-condensing
Power Supply	Power Supply	External power supply: 53 VDC, 1.22 A
Power Consumption	Power Consumption	Idling: ≤3 W Full load: 65 W
Statics Protection	Statics Protection	Air discharge: 8 kV Contact discharge: 6 kV
Lightning Protection	Lightning Protection	Common mode: 6 kV
Net Weight	Net Weight	0.2 kg (0.44 lb)
Gross Weight	Gross Weight	0.76 kg (1.68 lb)
Product Dimensions	Product Dimensions	115 × 84 × 27 mm (L × W × H)
Packaging Dimensions	Packaging Dimensions	195 × 114 × 83 mm (L × W × H)
Casing Material	Casing Material	Sheet metal
Installation	Installation	Desktop mount; wall mount
PoE	PoE	Yes
PoE Power	PoE Power	Port 2-4 ≤30 W, Port 1 ≤60 W, Total ≤60 W
PoE Protocol	PoE Protocol	IEEE802.3af, IEEE802.3at, Hi-PoE
PoE Power Management	PoE Power Consumption Management	PoE power on/off; disables PoE if overload detected
PoE Pin Assignment	PoE Pin Assignment	1,2,4,5 (V+), 3,6,7,8 (V-)
Long Distance PoE	Long Distance PoE Transmission	Yes
Hardware	DIP Switch	Managed Mode: On by default for both local web and cloud management. PoE Watchdog: Monitors ports 1-4 and auto-restarts PoE if no traffic for 2 min. Extend Mode: Ports 1-4; transmission distance up to 250 m @10 Mbps
Reset Button	Reset Button	1
MTBF	MTBF	232.62 years
Packet Buffer Size	Packet Buffer Size	4 Mbit
Jumbo Frame	Jumbo Frame	9216 Byte
MAC Table Size	MAC Table Size	2K
Communication Standard	Communication Standard	IEEE 802.3, 802.3u, 802.3x, 802.3ab, 802.3az
VLAN Number	VLAN Number	32
VLAN Function	VLAN Function	IEEE 802.1Q VLAN
Port Feature	Port Feature	IEEE 802.3x Flow Control, Unknown Unicast Suppression, Multicast Storm Control, Broadcast Storm Control, MAC+Port Binding, Loop Prevention
Mirror	Mirror	N:1 Mirroring, Local Port Mirroring
Reliability	LLDP	Yes
DHCP Function	DHCP Function	DHCP Client
Security	Security	Port Isolation
Equipment Management	Equipment Management	Web Management, Cloud Management, Logs, Fault Alarm
Packing List	Packing List	1 × Quick Start Guide, 1 × Legal & Regulatory Info, 1 × Power Adapter, 1 × Power Cord

Raksturojums

Datu caurlaidība	10/100/1000
Datu caurlaidība	10/100
Pievadu skaits	6
PoE pievadu skaits	4
