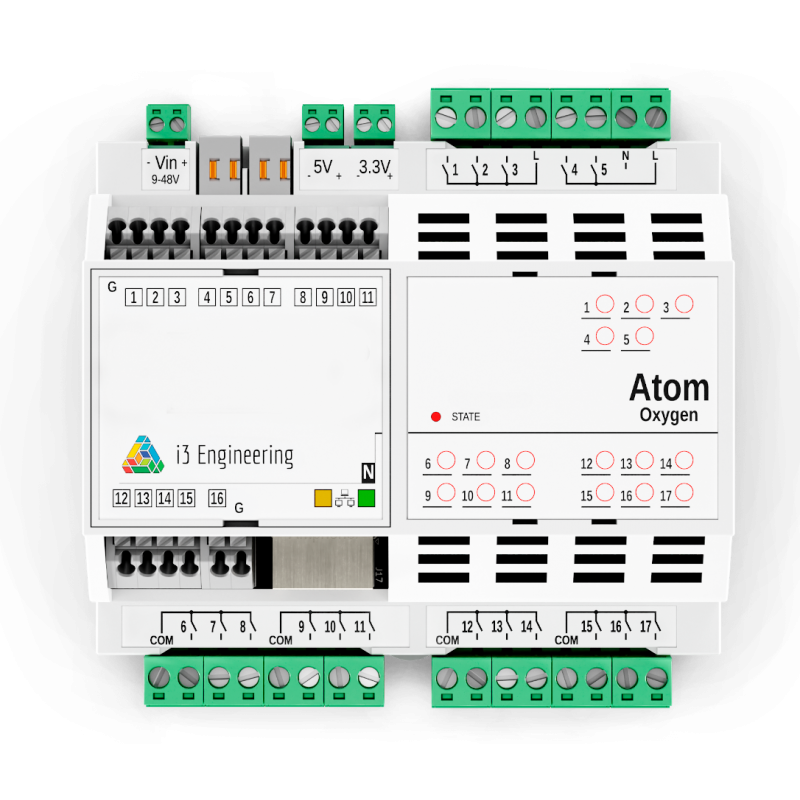

Atom 6U Oxygen N Smart Home Controller 12in/10out (perfect for small home)

Kontrolieri

Preces kods: EP6UAtomOxygenN

Atom Oxygen N Smart home controller is the perfect solution for automating a small home! It will provide control of the climate, lighting and security of your apartment.

Lasīt vairāk

Cena veikalā var atšķirties

Cena:

€785,29

€649,00 bez PVN

Saglabāt

Mums ir 2 gab.
Piegāde 1-2 d.

Preces informācija

Atom 6U Oxygen N Features:

CAN bus ensures synchronized operation of all Atom series devices.
Integrate 3rd party devices using RS-485 interface.
5V and 3.3V ports for sensors power supply.
16 multifunction input ports for temperature, air quality, water leakage sensors and switches connection.
Ethernet port for network connection possibility of remote control using the phone or voice assistants
12 x 5A relays for connection of electrical devices
5 x AC dimmers for controlling dimmable lamps

Technical Specifications

Inputs
Input ports	16 digital (9 of them with a possibility to work in analog mode)
Voltage range for input ports	0–3.3V (IN1–IN11), 0–5V (IN12–IN22)
ADC bit rate for input ports in analog mode	12 bit
Outputs 1-5
AC switching voltage	180 - 250VAC
Number of AC ports x Max switching load per one output	5 / 150W
Dimming capabilities	Leading Edge
Outputs 6-17
Number of built-in normally opened relays / Active load	12 x 5А 250V AC
Max inrush current	30А
Interfaces
CAN	✔
RS-485 (Modbus protocol)	✔
Digital interfaces on input ports	1 laidas
Ethernet 10/100 Mb	✔
WiFi 802.11 b/g/n 2,4 GHz	✔
Bluetooth v4.2 BLE	✔
Indication
Input and output ports status LEDs	✔
Ethernet port status LEDs	✔

Power supply

Device power supply voltage (with protection against reverse polarity connection) 9 - 48V DC
Output voltage to power the sensors 3.3V (200mА), 5V (200mА)
Consumption (max) 15W

Other

Mounting type DIN rail (EN 60715)
Width, DIN units 6 DIN module
HxWxL 59 х 88 х 105 mm
Type of connectors / Recommended wire cross section inputs clamps / 0.2 - 1.5 mm²
Type of connectors / Recommended wire cross section outputs w/ screws, detachable/ 2,5 mm²

Atom Oxygen input’s specifications

Type of input / # of input	1-2	3-11	12-16
Analog (thermistor, photoresistor, etc.)	✖	✔	✖
Digital (motion sensors, light level sensors, switches, buttons, etc.)	✔	✔	✔
Interface (1-Wire sensors)	✔	✔	✖

Atom 6U comparison:

Atom 6U model	IN	OUT	QUANTITIES AND TYPES OF OUTPUTS
Atom 6U Hydrogen	12	10	2 relays, 8 ports, i3 flex	5A 250V/30V DC See "Changeable modules"
Atom 6U Ferrum	12	10	2 relays 8 relays	5A 250V/30V DC 10A 250V AC
Atom 6U Argon	12	18	18 relays	5A 250V/30V DC
Atom 6U Neon	12	12	4 relays 8 dim	5A 250V/30V DC 0-48V DC 5A
Atom 6U Oxygen	22	17	12 relays 5 dim	5A 250V/30V DC 180-250V AC/ 150W

Raksturojums

Kontrollera tips

Atom 6U
