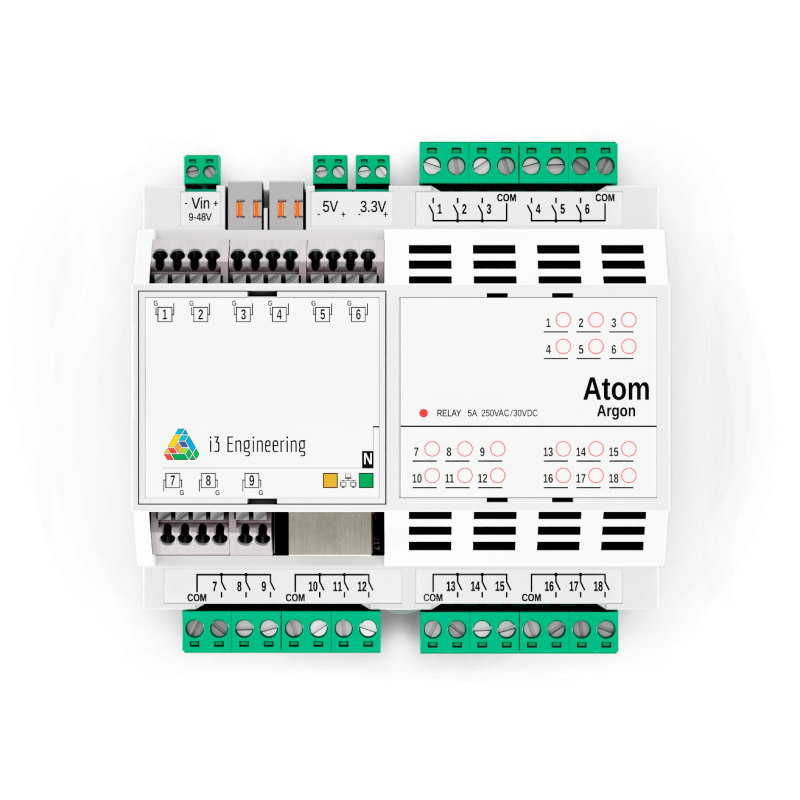

Atom 6U Argon N Smart Home Controller 12in/18out + Ethernet port

Kontrolieri

Preces kods: EP6UAtomArgonN

Atom 6U Argon N Smart Home Controller is ideal for controlling a large number of low-power loads: thermal heads, devices with dry contact inputs (garage doors, impulse blinds), intermediate relays, emergency lighting, electric locks and more. With Ehternet port.

Lasīt vairāk

Cena veikalā var atšķirties

Cena:

€825,22

€682,00 bez PVN

Saglabāt

Mums ir 4 gab.
Piegāde 1-2 d.

Preces informācija

Atom 6U Argon N Features:

CAN bus ensures synchronized operation of all Atom series devices.
Integrate 3rd party devices using RS-485 interface.
5V and 3.3V ports for sensors power supply.
9 multifunction input ports for temperature, air quality, water leakage sensors and switches connection.
Ethernet port for network connection possibility of remote control using the phone or voice assistants
18 x 5A relays for connection of electrical devices

Technical Specifications

Inputs
Input ports	9 digital (7 of them with a possibility to work in analog mode)
Voltage range for inputs without optocoupler mode / with optocoupler mode (selected with jumper)	0-3,3V / 0-5V
ADC bit rate for input ports in analog mode	12 bit
Outputs 1-18
Number of built-in normally opened relays / Active load	18 x 5А 250V AC/ 30V DC
Max inrush current	50А (10A for Argon (i) modification)
Interfaces
CAN	✔
RS-485 (Modbus protocol)	✔
Digital interfaces on input ports	1 laidas
Ethernet 10/100 Mb	✔
WiFi 802.11 b/g/n 2,4 GHz	✔
Bluetooth v4.2 BLE	✔
Indication
Input and output ports status LEDs	✔
Ethernet port status LEDs	✔

Power supply

Device power supply voltage (with protection against reverse polarity connection) 9 - 48V DC
Output voltage to power the sensors 3.3V (200mА), 5V (200mА)
Consumption (max) 15W

Other

Mounting type DIN rail (EN 60715)
Width, DIN units 6 DIN module
HxWxL 59 х 88 х 105 mm
Type of connectors / Recommended wire cross section inputs clamps / 0.2 - 1.5 mm²
Type of connectors / Recommended wire cross section outputs w/ screws, detachable/ 2,5 mm²

Atom Argon N input’s specifications

Type of input / # of input	1-2	3-9
Analog (thermistor, photoresistor, etc.)	✖	✔
Digital (motion sensors, light level sensors, switches, buttons, etc.)	✔	✔
Interface (1-Wire sensors)	✔	✔

Atom 6U comparison:

Atom 6U model	IN	OUT	QUANTITIES AND TYPES OF OUTPUTS
Atom 6U Hydrogen	12	10	2 relays, 8 ports, i3 flex	5A 250V/30V DC See "Changeable modules"
Atom 6U Ferrum	12	10	2 relays 8 relays	5A 250V/30V DC 10A 250V AC
Atom 6U Argon	12	18	18 relays	5A 250V/30V DC
Atom 6U Neon	12	12	4 relays 8 dim	5A 250V/30V DC 0-48V DC 5A
Atom 6U Oxygen	22	17	12 relays 5 dim	5A 250V/30V DC 180-250V AC/ 150W
