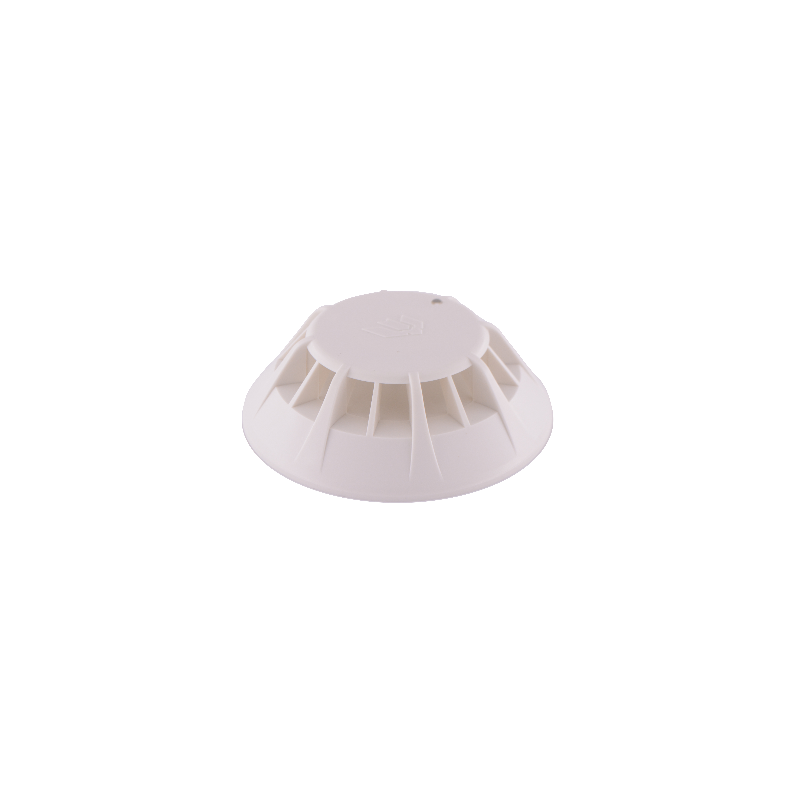

JBE-2107 Conventional Heat Detector

Sensori

Preces kods: PSJBE-2107

JBE-2107 is a conventional heat detector designed to operate on a zone line of conventional intelligent fire detection and alarm devices. This heat detector sends fire alarm signals to the fire panel when the air temperature (or its rate of rise) reaches the alarm thresholds defined in the European norm EN 54-5.

Lasīt vairāk

Mums ir 10+ gab.
Piegāde 1-2 d.

Preces informācija

This detector features a remote indicator output.

The detector features three (3) sensitivity profiles: A2R, A2 and A2S. TheJBE-AT1 Programmer allowa selecting which threshold to apply to the detector.

3 certified heat sensitivities. Heat detectors are often used to detect fire in places where steam or dust can be present or where non-smoke fires might occur.

Heat rate-of-rise and static detector.

EN 54-5 certificate.

Specifications

Working voltage DC 16 - 30 V
Connection: 2-wire bus, no polarity
Wiring: Twisted pair, max. wiring gauge 2.5 mm2
Quiescent current: ≤0.1 mA @24 V
Activation current: ≥25mA @24 V (remote indicator current <15 mA )
Working temp. -10℃ ~ +50℃
Storage temp. -20℃ ~ +60℃
Environment ≤ 95% RH (40±2℃) (no condensation nor icing)
Configuration: Soft configuration with tool JBE-AT1, non-volatile
Protection area 20~30 m² (subject to local codes)
Red LED indication Standby: Flashing; Alarm: Steady on when in alarm
Dimensions Ø100 mm × 41 mm
Weight 0.1 kg
IP rating IP40
Compatible bases: JBE-2165 for installation with or without remote indicator
Remote indicator: LED with or without series resistor (Rs <4 kOhm)

Raksturojums

Sensora tips	Temperatūras
Barošanas tips	24V
