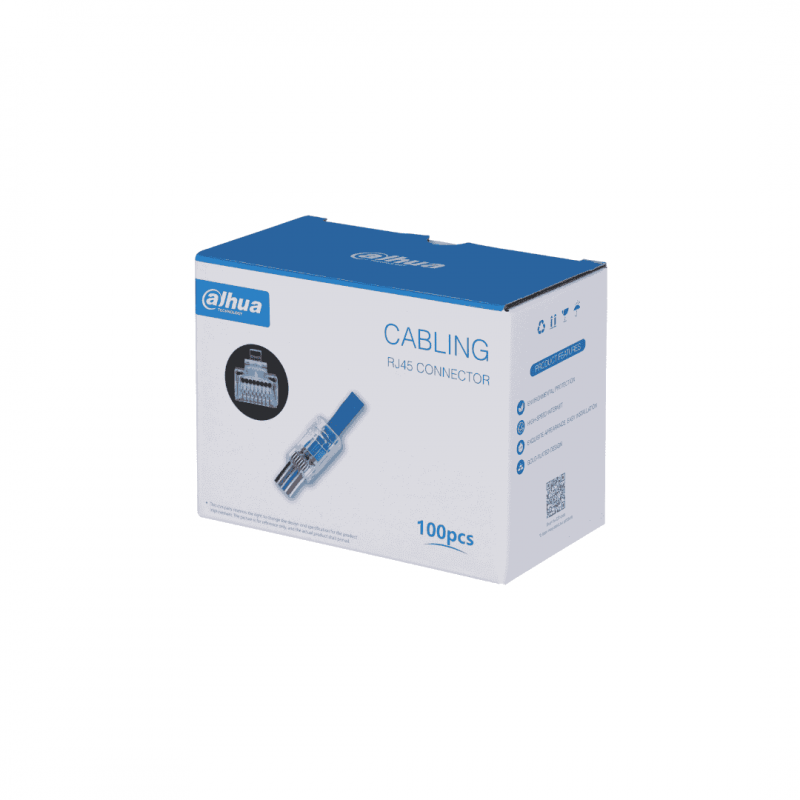

UTP CAT5E 15U" Pass Through RJ45 Connector PFM976-531-PT 100 pcs/pck

Preces kods: PSPFM976-531-PT

> Unshielded CAT5E RJ-45 connector.
> Designed with a through hole for cables to be fed through.
> Built with trident brass sheet and 15U" gold plating.
> Lifespan of 750 cycles.

Lasīt vairāk

Cena veikalā var atšķirties

Cena:

€5,45

€4,50 bez PVN

Saglabāt

Mums ir 10+ gab.
Piegāde 1-2 d.

Preces informācija

UTP CAT5E 15U" Pass Through RJ45 Connector PFM976-531-PT 100 pcs/pck

Material

PC + brass

Gold Plating Thickness

15U"

Flammability Rating

UL94V-2

Electrical

Operating Voltage

150 VAC RMS

Operating Current

1.5 AMP

Contact Resistance

≤ 20 mΩ

Insulation Resistance

≥1000 MΩ@500 VDC

Withstands Voltage between Terminals

1000 VDC/VAC PEAK @0.5 mA 50 Hz or 60 Hz 1 Minute

Mechanical

Retention Strength

50 N for 60 s ± 5 s

Lifespan

750 times

Insertion Force

≤ 30 N

Environmental

Operating Temperature

–25 °C to +55 °C (–13 °F to +131 °F)

Storage Temperature

–10 °C to +40 °C (+14 °F to +104 °F)

Storage Humidity

≤ 80%

Storage Time

12 months

Structural

Single Strand Cable Diameter

23 AWG–24 AWG

Single Strand Insulated Cable Diameter

0.89 mm–1.00 mm (0.035"–0.039")

Outer Sheath Diameter

≤ 5.4 mm (0.21")

Packaging Dimensions

120 mm × 65 mm × 90 mm (4.72" × 2.55" × 3.54")

Transport Package Dimensions

500 mm × 350 mm × 270 mm (19.69" × 13.78" × 10.63")

Packaging Method

100 pcs in 1 carton, and 50 cartons in 1 package

Net Weight

0.17 kg (0.37 lb)

Gross Weight

0.21 kg (0.46 lb)
