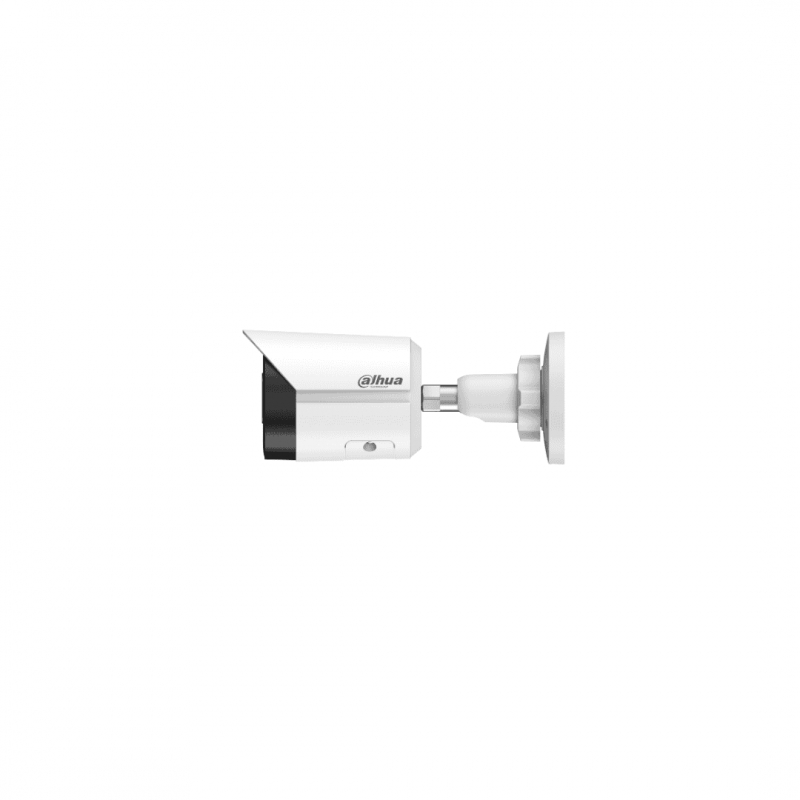

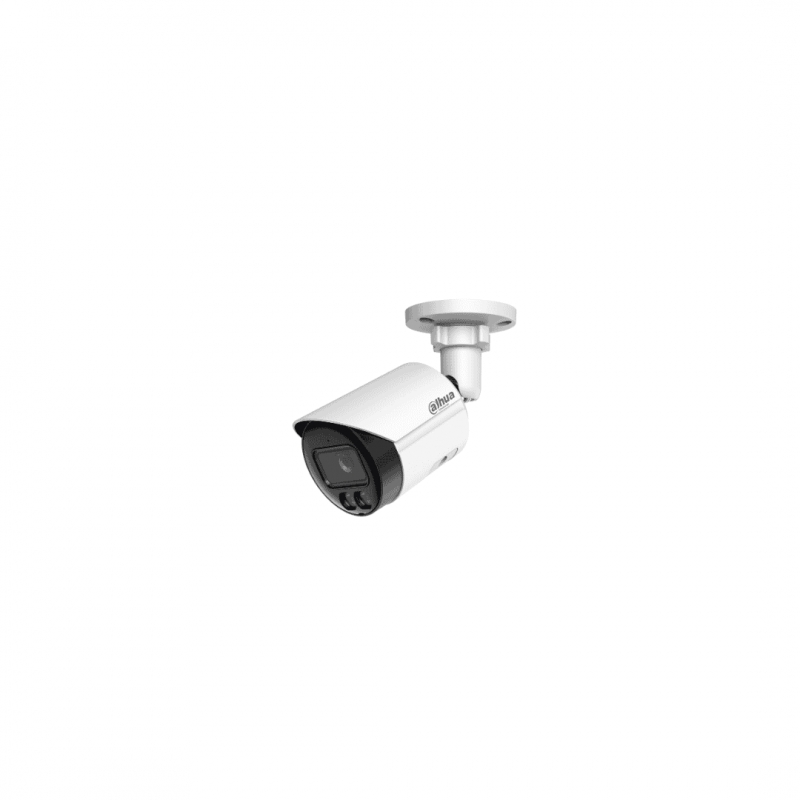

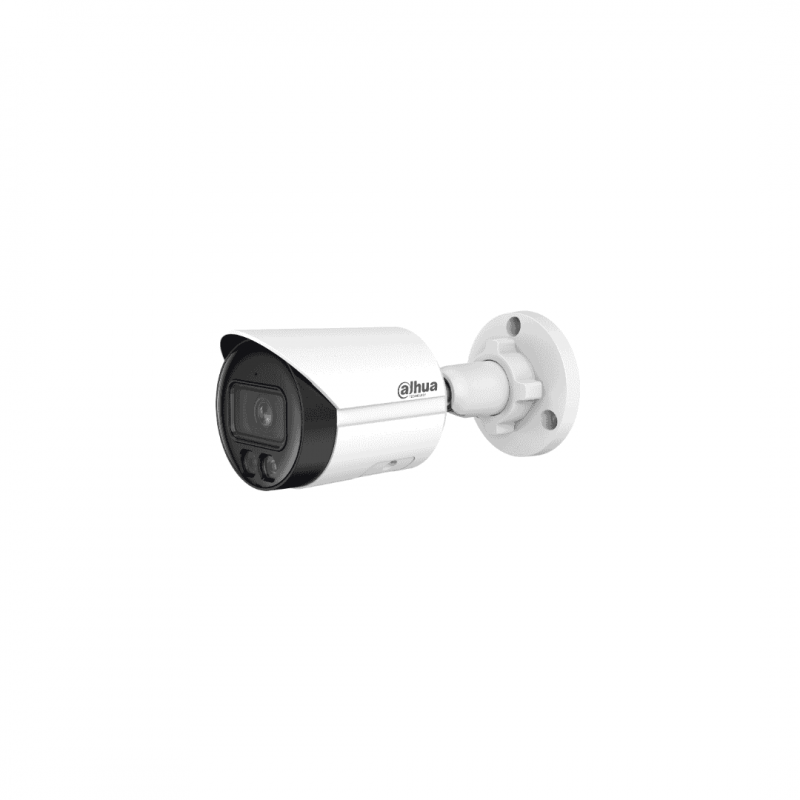

IP camera HFW2649S-S-IL-0280, Dual Light 6MP, 2.8mm

Videonovērošanas sistēmas

Preces kods: CAHFW2649S-S-IL-28

1/2.7" CMOS image sensor, low luminance, and high definition image.

6 MP (3288×1850) @20 fps, supports 2688×1520 (2688 × 1520) @25/30 fps.
H.265 codec, high compression rate, ultra-low bit rate.
Built-in warm light and IR LED, the max. IR distance is 30 m and the max. warm light distance is 30 m.
ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Intelligent monitoring: Intrusion, tripwire (vehicle and human).
Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection and others.
Max. 256 G Micro SD card; built in Mic.
12 VDC/PoE power supply
IP67 protection.
SMD Plus.

Lasīt vairāk

Cena veikalā var atšķirties

Cena:

€187,55

€155,00 bez PVN

Saglabāt

Mums ir 10+ gab.
Piegāde 1-2 d.

Preces informācija

IP camera HFW2649S-S-IL-0280, Dual Light 6MP, 2.8mm

Smart Dual Light
The “Dahua Smart Dual Light” technology uses an intelligent algorithm to detect targets. At night, the IR illuminator usually operates, but when a target enters the monitored area, the white light automatically turns on, and the camera records full-color video and key event information. The camera links snapshots and video with full-color images. When the target leaves the monitored area, the white light turns off and the IR illuminator resumes, effectively reducing light pollution.

SMD Plus
Using an intelligent algorithm, the “Dahua Smart Motion Detection” technology categorizes motion-triggering objects and filters out irrelevant alarms, ensuring accurate and reliable alerts.

Perimeter Protection
Deep learning algorithms allow accurate recognition of humans and vehicles. In restricted areas (e.g., pedestrian or vehicle zones), false alarms—such as tripwire, intrusion, fast movement, parking, loitering, or gathering detection—are significantly reduced.

Smart H.265+ and Smart H.264+
Advanced scene-adaptive rate control algorithms provide higher encoding efficiency than standard H.265 and H.264, delivering high-quality video while reducing storage and transmission costs.

Full-Color Technology
A high-sensitivity sensor and large-aperture lens allow the camera to capture clear, colorful images even in very low light, highlighting more details.

Cyber Security
Dahua network cameras implement multiple security technologies, including authentication, access control, trusted protection, encrypted transmission, and encrypted storage. These features protect the device from external cyber threats and malicious attacks.

Protection (IP67, Wide Voltage)
IP67 protection means the camera is dustproof and can operate underwater up to 1 m deep for 30 minutes. Wide voltage tolerance (±30%) allows stable operation in outdoor environments with fluctuating power supply.

Camera

Image Sensor

1/2.7" CMOS

Max. Resolution

3288 (H) × 1850 (V)

ROM

128 MB

RAM

256 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.007 [email protected] (Color, 30 IRE)

0.0007 [email protected] (B/W, 30 IRE)

0 lux (Illuminator on)

S/N Ratio

>56 dB

Illumination Distance

Up to 30 m (98.43 ft) (IR)

Up to 30 m (98.43 ft) (Warm light)

Illuminator On/Off Control

Auto;Manual

Illuminator Number

1 (IR LED); 1 (Warm light)

Angle Adjustment

Pan: 0°–360°

Tilt: 0°–90°

Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Lens Mount

M12

Focal Length

2.8 mm; 3.6 mm

Max. Aperture

F1.6

Field of View

2.8 mm: H: 112°; V: 61°; D: 132°

3.6 mm: H: 91°; V: 46°; D: 110°

Iris Control

Fixed

Close Focus Distance

2.8 mm: 1.0 m (3.28 ft)

3.6 mm: 1.7 m (5.58 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

61.2 m

( 200.79 ft)

24.5 m

( 80.38 ft)

12.2 m

( 40.03 ft)

6.1 m

( 20.01 ft)

3.6 mm

85.4 m

( 280.18 ft)

34.2 m

( 112.20 ft)

17.1 m

( 56.10 ft)

8.5 m

( 27.89 ft)

DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.

Intelligence

IVS (Perimeter Protection)

Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)

SMD

SMD Plus

Smart Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (Only supported by sub stream)

Smart Codec

Smart H.265+; Smart H.264+

Video Frame Rate

Main stream: 3288 × 1850@(1–20 fps)/2688 × 1520@(1–25/30 fps)

sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)

*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability

2 streams

Resolution

6M (3288 × 1850/3200 × 1800); 5M (2880 × 1620); 4M (2688 × 1520); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control

VBR;CBR

Video Bit Rate

H.264: 32 kbps–8192 kbps;

H.265: 12 kbps–8192 kbps

Day/Night

Auto(ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto/Manual

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Smart Illumination

Yes

Smart Dual Light

Yes

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)

Mirror

Yes

Privacy Masking

4 areas

Audio

Built-in MIC

Yes, built-in Mic

Audio Compression

G.711a; G.711Mu; PCM; G.726

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; SMD; security exception

Network

Network Port

RJ-45 (10/100 Base-T)

SDK and API

Yes

Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; P2P; Bonjour; Auto Registration

Interoperability

ONVIF (Profile S & Profile G &Profile T); CGI

User/Host

20 (Total bandwidth: 48 M)

Storage

FTP; SFTP; Micro SD card (support max. 256 GB); NAS

Browser

IE;

Chrome;

Firefox

Management Software

Smart PSS Lite; DSS; DMSS; DoLynk Care

Mobile Client

iOS;Android

Cyber Security

Video encryption;Firmware encryption;Configuration encryption;Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade

Certification

Certifications

CE-LVD: EN62368-1;

CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

Power

Power Supply

12 VDC; PoE

Power Consumption

Basic: 2.5 W (12 VDC); 3.3 W (PoE);

Max.: 4.4 W (12 VDC); 5.4 W (PoE) (H.265 + intelligence on+ WDR + illuminator intensity)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

≤95% (RH), non-condensing

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Storage Humidity

≤95% (RH), non-condensing

Protection

IP67

Structure

Casing Material

Metal

Product Dimensions

169.8 mm × 70 mm × 70 mm (6.69" × 2.76" × 2.76") (L × W × H)

Net Weight

0.47 kg (1.04 lb)

Gross Weight

0.59 kg (1.30 lb)

Raksturojums

Objektīvs	2.8 mm
Krāsa	Balta
Izšķirtspēja	6MP
Kameras tips	Cilindra (bullet)
Nakts apgaismojums	≤ 30 m
Priekšrocības	Full-Color
Priekšrocības	Atbalsta MicroSD līdz 256GB
