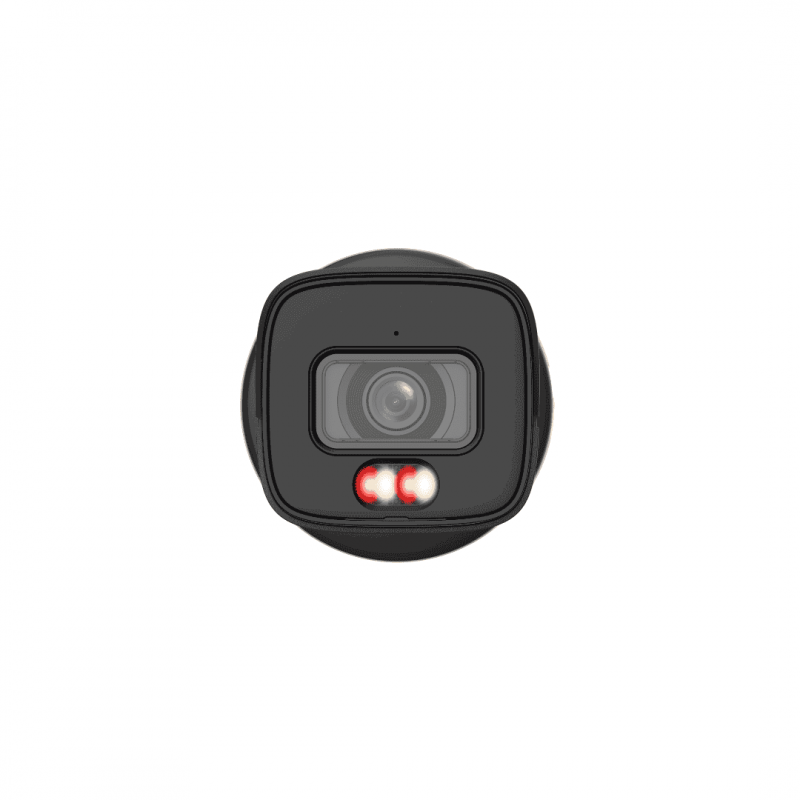

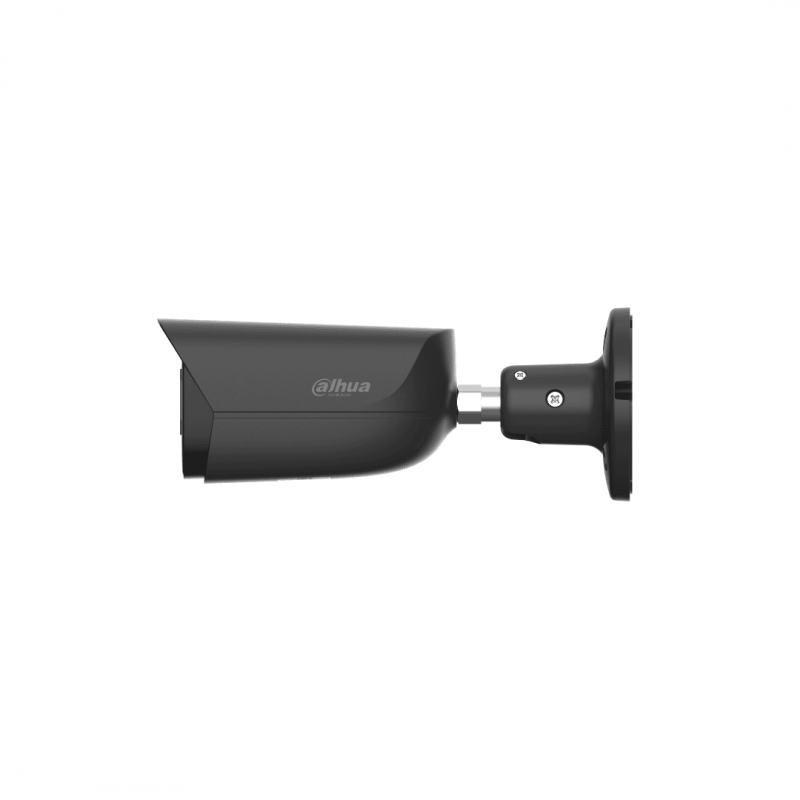

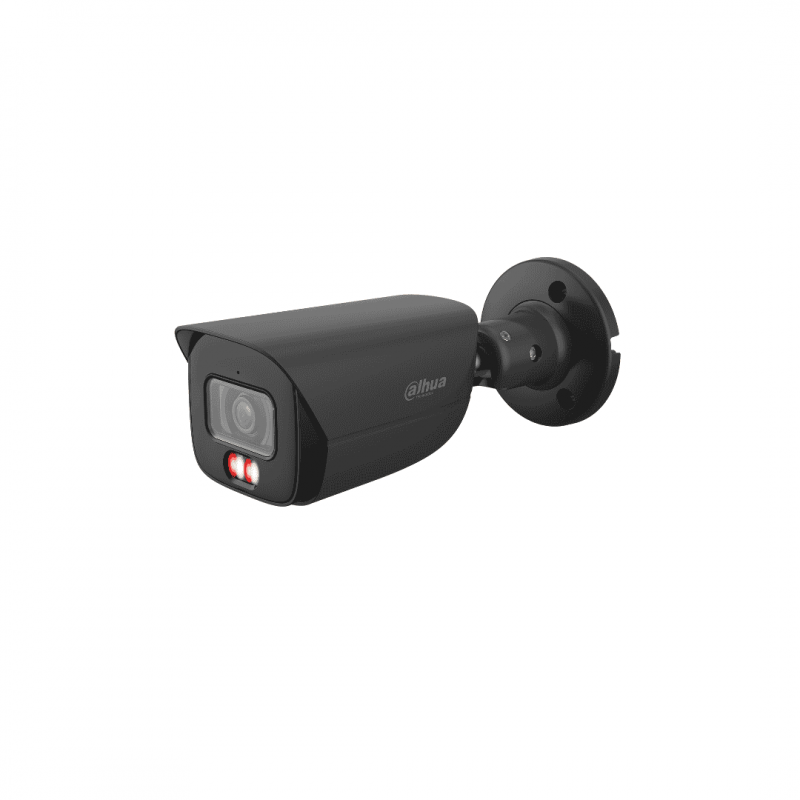

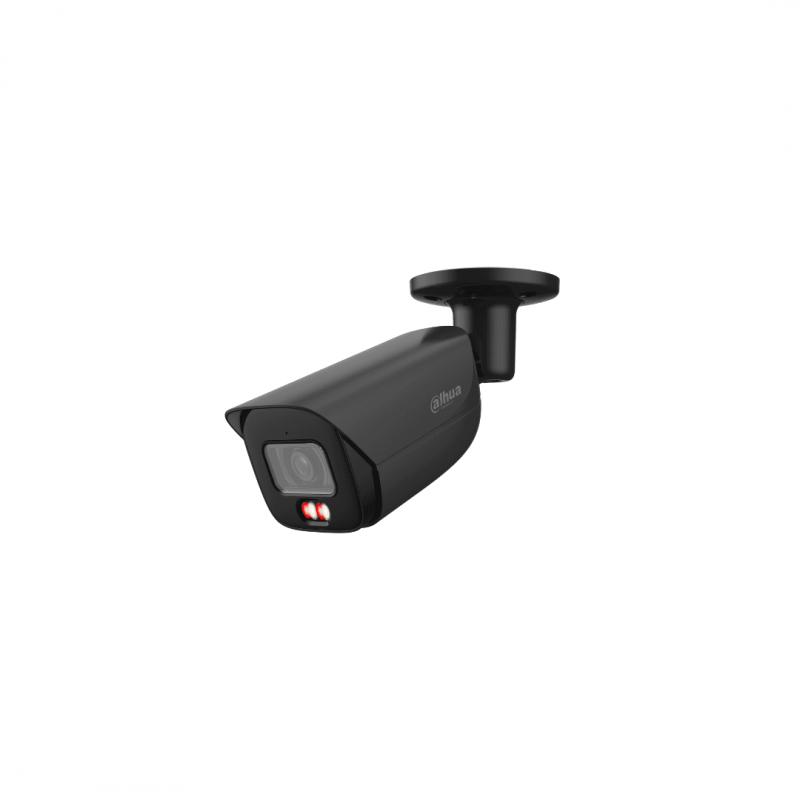

IP camera 8MP HFW3849E-AS-IL-0280B-Black FullColor 2.8mm BLACK

Videonovērošanas sistēmas

Preces kods: CAHFW3849EASIL0280B

8-MP 1/2.7" CMOS image sensor

Outputs max. 8 MP (3840 × 2160)@25/30 fps.

Built-in multi-core light, the max. IR distance is 30 m and the max. warm light distance is 30 m.

ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding

Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.

Intrusion, tripwire, stay detection, loitering detection; face detection.

Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.

Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 G Micro SD card; built-in Mic.

12 VDC/PoE power supply.

IP67 protection.

SMD 4.0.

Supports AI SSA.

Lasīt vairāk

Cena veikalā var atšķirties

Cena:

€337,59

€279,00 bez PVN

Saglabāt

In manufacturer warehouse
Jautājiet

Preces informācija

Xinghan Large-Scale AI Models – Vision
The Xinghan Vision large-scale AI models deliver seamless expansion of algorithm storage and operational capacity through the powerful integration of edge AI algorithms with NPU computing power. Built on a lightweight transformer architecture and enhanced with model distillation and quantization, they optimize ViT operator performance for reduced power consumption. This enables joint inference between small and large edge-optimized models, allowing the system to handle multiple tasks simultaneously with speed and efficiency.

SMD 4.0 – Smarter Motion Detection
Dahua’s Smart Motion Detection (SMD) 4.0 uses advanced AI algorithms to accurately classify motion triggers, filtering out irrelevant objects such as small or large animals to prevent false alarms. When paired with an AI NVR, Quick Pick technology becomes available, enabling you to quickly locate human or vehicle targets from recorded SMD event videos, prioritizing the most relevant matches.

Perimeter Protection
Powered by deep learning, Dahua Perimeter Protection accurately distinguishes between people and vehicles. In restricted zones (such as pedestrian-only or vehicle-only areas), it significantly reduces false alarms for intelligent detection types like tripwire crossing or intrusion.

Smart Dual Light Technology
Dahua Smart Dual Light technology uses intelligent target detection to optimize nighttime monitoring. By default, the IR illuminator is active; when a target enters the scene, the white light switches on, capturing full-color video and snapshots of key events. Once the target leaves, the white light turns off and IR mode resumes—maintaining security while minimizing light pollution.

Durability & Power Flexibility (IP67, Wide Voltage)
IP67 Rated: Built to withstand harsh environments, the camera is fully dust-tight and can operate after immersion in 1 meter of water for up to 30 minutes.
Wide Voltage Support: With ±30% input voltage tolerance (for compatible power supplies), the camera is ideal for outdoor installations where voltage conditions may be unstable.

Camera

Image Sensor

1/2.7" CMOS

Max. Resolution

3840 (H) × 2160 (V)

ROM

256 MB

RAM

1 GB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.007 [email protected] (Color, 30 IRE)

0.0007 [email protected] (B/W, 30 IRE)

0 lux (Illuminator on)

S/N Ratio

>56 dB

Illumination Distance

Up to 30 m (98.43 ft) (IR)

Up to 30 m (98.43 ft) (Warm light)

Illuminator On/Off Control

Auto;Manual

Illuminator Number

2 (Multi-core (IR + warm) light)

Angle Adjustment

Pan: 0°–360°

Tilt: 0°–90°

Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Lens Mount

M12

Focal Length

2.8 mm; 3.6 mm

Max. Aperture

F1.4

Field of View

2.8 mm: H: 110°; V: 58°; D: 132°

3.6 mm: H: 86°; V: 49°; D: 100°

Iris Control

Fixed

Close Focus Distance

2.8 mm: 1.4 m (4.59 ft)

3.6 mm: 1.9 m (6.23 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

84.8 m

( 278.22 ft)

33.9 m

( 111.22 ft)

17.0 m

( 55.77 ft)

8.5 m

( 27.89 ft)

3.6 mm

98.7 m

( 323.82 ft)

39.5 m

( 129.59 ft)

19.7 m

( 64.63 ft)

9.9 m

( 32.48 ft)

DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.

Intelligence

IVS (Perimeter Protection)

Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)

SMD

SMD 4.0

AcuPick

Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets.

AI SSA

Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions.

Smart Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (Only supported by sub stream)

Smart Codec

Smart H.265+; Smart H.264+

AI Coding

AI H.265; AI H.264

Video Frame Rate

Main stream: 3840 × 2160@(1–25/30 fps)

Sub stream: 1920 × 1080@(1–25/30 fps)

Third stream: 1920 × 1080@(1–25/30 fps)

*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability

3 streams

Resolution

8M (3840 × 2160); 6M (3200 × 1800); 5M (3072 × 1728); 4M (2688 × 1520/2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control

VBR;CBR;ABR

Video Bit Rate

H.264: 3 kbps–16384 kbps;

H.265: 3 kbps–16384 kbps

Day/Night

Auto(ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

Scene Self-adaptation (SSA)

Yes

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto/Manual

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Smart Illumination

Yes

Smart Dual Light

Yes

Defog

Yes

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)

Mirror

Yes

Privacy Masking

8 areas

LDC

Yes

Audio

Built-in MIC

Yes, built-in Mic

Audio Compression

PCM; G.711a; G.711Mu; G.726; G.723

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; SMD; security exception

Network

Network Port

RJ-45 (10/100 Base-T)

SDK and API

Yes

Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P

Interoperability

ONVIF (Profile S & Profile G & Profile T & Profile M); CGI

User/Host

20 (Total bandwidth: 64 M)

Storage

FTP; SFTP; Micro SD card (support max. 512 GB); NAS

Browser

IE: IE11;

Chrome;

Firefox

Management Software

Smart PSS Lite; DSS; DMSS; DoLynk Care

Mobile Client

iOS;Android

Cyber Security

Video encryption;Firmware encryption;Configuration encryption;Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade;Session security;Security warning

Certification

Certifications

CE-LVD: EN62368-1;

CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

Port

Audio Input

1 channel (RCA port)

Audio Output

1 channel (RCA port)

Alarm Input

1 channel in: wet contact, 5 mA 3–5 VDC

Alarm Output

1 channel out: wet contact, 300 mA 12 VDC

Power

Power Supply

12 VDC/PoE (802.3af)

Dual Power Backup

When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart.

Power Consumption

Basic: 3.7 W (12 VDC); 5.4 W (PoE);

Max.: 8 W (12 VDC); 10 W (PoE) (H.265 + WDR + warm light + intelligence on)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

≤95% (RH), non-condensing

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Storage Humidity

≤95% (RH), non-condensing

Protection

IP67

Structure

Casing Material

Metal

Product Dimensions

192.7 mm × 70.5 mm × 66.4 mm (7.59" × 2.78" × 2.61") (L × W × H)

Net Weight

610 g (1.34 lb)

Gross Weight

770 g (1.70 lb)

Raksturojums

Objektīvs	2.8 mm
Krāsa	Melna
Izšķirtspēja	8MP (4K)
Kameras tips	Cilindra (bullet)
Nakts apgaismojums	≤ 30 m
Priekšrocības	Xinghan
