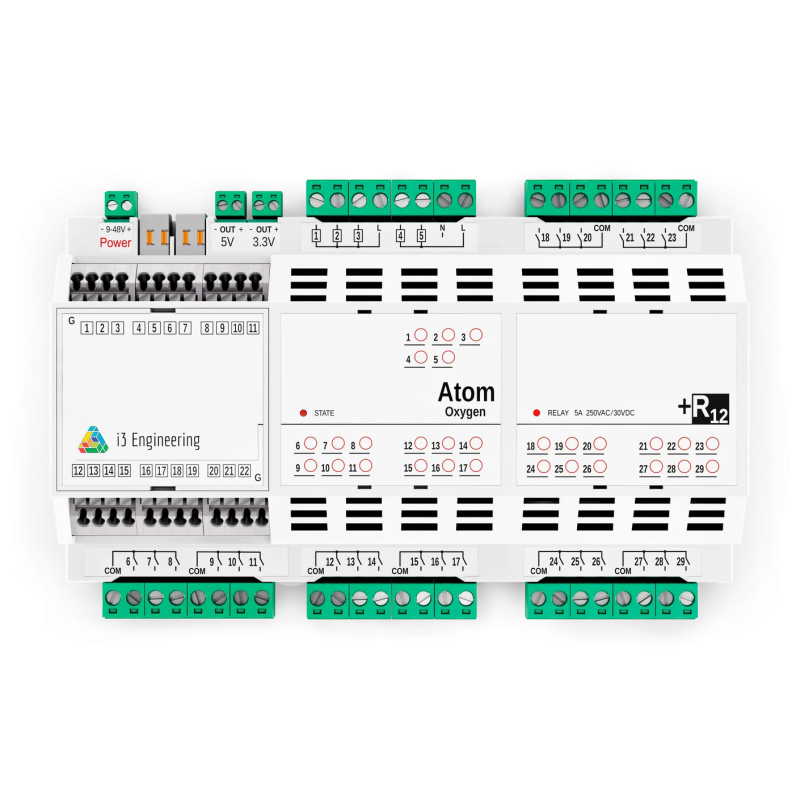

Atom 9U Oxygen +R12 Smart Home Controller 22IN/29OUT, 5DIMM

Контроллеры

Код товара: EP9UOxygen+R12

Atom Oxygen +R12 Smart Home Controller is the perfect solution for automating a small home! It will provide control of the climate, lighting and security of your apartment.

Читать подробнее

Цена в физическом магазине может отличаться

Цена:

876,04 €

724,00 € без НДС

Сохранить

In manufacturer warehouse
Спросите

Информация о товаре

Atom 9U Oxygen +R12 Features:

CAN bus ensures synchronized operation of all Atom series devices.
Integrate 3rd party devices using RS-485 interface.
5V and 3.3V ports for sensors power supply.
22 multifunction input ports for temperature, air quality, water leakage sensors and switches connection.
12 x 5A relays for connection of electrical devices
5 x AC dimmers for controlling dimmable lamps
12 x 5A relays for connecting electrical appliances

Technical Specifications

Inputs
Input ports	22 digital (9 of them with a possibility to work in analog mode)
Voltage range for input ports	0-3,3V (IN1-IN11), 0-5V (IN12-IN22)
ADC bit rate for input ports in analog mode	12 bit
Outputs 1-5
AC switching voltage	180 - 250VAC
Number of AC ports x Max switching load per one output	5 / 150W
Dimming capabilities	Leading Edge
Outputs 6-17
Number of built-in normally opened relays / Active load	12 x 5А 250V AC
Max inrush current	30А
Outputs 18-29
Number of built-in normally opened relays / Active load	12 x 5А 250V AC
Max inrush current	50A
Interfaces
CAN	✔
RS-485 (Modbus protocol)	✔
Digital interfaces on input ports	1-wire
Ethernet 10/100 Mb	✖ (in Atom Oxygen N +R12 modification)
WiFi 802.11 b/g/n 2,4 GHz	✖ (in Atom Oxygen N +R12 modification)
Bluetooth v4.2 BLE	✖ (in Atom Oxygen N +R12 modification)
Indication
Input and output ports status LEDs	✔
Ethernet port status LEDs	✖ (in Atom Oxygen N +R12 modification)

Power supply

Device power supply voltage (with protection against reverse polarity connection) 9 - 48V DC
Output voltage to power the sensors 3.3V (200mА), 5V (200mА)
Consumption (max) 15W

Other

Mounting type DIN rail (EN 60715)
Width, DIN units 9 DIN module
HxWxL 59 х 88 х 161 mm
Type of connectors / Recommended wire cross section inputs clamps / 0.2 - 1.5 mm²
Type of connectors / Recommended wire cross section outputs w/ screws, detachable/ 2,5 mm²

Atom Oxygen +R12 input’s specifications

Type of input / # of input	1-2	3-11	12-16	17-22
Analog (thermistor, photoresistor, etc.)	✖	✔	✖	✖
Digital (motion sensors, light level sensors, switches, buttons, etc.)	✔	✔	✔	✔
Interface (1-Wire sensors)	✔	✔	✖	✖

Atom 9U comparison:

Model	IN	OUT	QUANTITIES AND TYPES OF OUTPUTS
Ferrum +R12	22	22	8 relays, 14 relays	10A 250V AC 5A 250V AC / 30V DC
Argon +R12	22	30	30 relays	5A 250V AC / 30V DC
Neon +R12	22	24	16 relays, 8 dimm	5A 250V/30V DC 0-48V DC / 5A
Oxygen +DCD12	22	29	12 relays, 5 dimm 12 dimm	5A 250V AC / 30V DC 180–250V AC / 150W 0–48V DC / 4A
Oxygen +R12	22	29	24 relays 5 dimm	5A 250V AC / 30V DC 180–250V AC / 150W

Характеристика

Тип контроллера

Atom 9U
