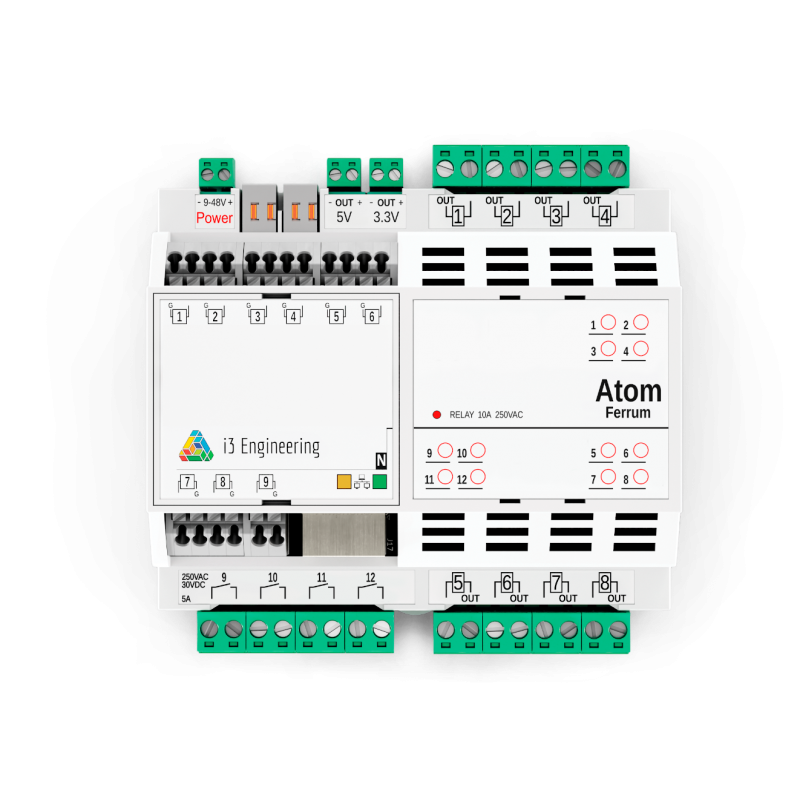

Atom 6U Ferrum Smart Home Controller 12in/12out with Ethernet

Контроллеры

Код товара: EP6UAtomFerrumN

Atom 6U Ferrum N Smart Home Controller is the ideal solution for controlling powerful and inductive loads, such as lighting groups, pumps, fans, electric motors, controlled sockets. Modifications with Ethernet port for network connection.

Читать подробнее

Цена в физическом магазине может отличаться

Цена:

865,15 €

715,00 € без НДС

Сохранить

Имеется в наличии 4 Шт.
Delivery per 1-2 d.d

Информация о товаре

Atom 6U Ferrum N Features:

CAN bus ensures synchronized operation of all Atom series devices.
Integrate 3rd party devices using RS-485 interface.
5V and 3.3V ports for sensors power supply.
9 multifunction input ports for temperature, air quality, water leakage sensors and switches connection.
Ethernet port for network connection possibility of remote control using the phone or voice assistants
Energy meter with the ability to accurately measure voltage, current and power consumption
2 x 5A relays for connection of electrical devices
8 x 10A relays for connection of electrical devices

Technical Specifications

Inputs
Input ports	9 digital (7 of them with a possibility to work in analog mode)
Voltage range for inputs without optocoupler mode / with optocoupler mode (selected with jumper)	0-3,3V / 0-5V
ADC bit rate for input ports in analog mode	12 bit
Outputs 1-8
Number of built-in normally opened relays / Active load	8 x 10А 250V AC
Max inrush current	70A
Built-in current sensors to monitor load operation	✔
Outputs 9-10
Number of built-in normally opened relays / Active load	2 x 5А 250V AC/ 30V DC
Max inrush current	50А
Energy meter
Built-in energy meter with the ability to accurately measure voltage, current and power consumption	10A / 230V
Interfaces
CAN	✔
RS-485 (Modbus protocol)	✔
Digital interfaces on input ports	1 laidas
Ethernet 10/100 Mb	✔
WiFi 802.11 b/g/n 2,4 GHz	✔
Bluetooth v4.2 BLE	✔
Indication
Input and output ports status LEDs	✔
Ethernet port status LEDs	✔

Power supply

Device power supply voltage (with protection against reverse polarity connection) 9 - 48V DC
Output voltage to power the sensors 3.3V (200mА), 5V (200mА)
Consumption (max) 15W

Other

Mounting type DIN rail (EN 60715)
Width, DIN units 6 DIN module
HxWxL 59 х 88 х 105 mm
Type of connectors / Recommended wire cross section inputs clamps / 0.2 - 1.5 mm²
Type of connectors / Recommended wire cross section outputs w/ screws, detachable/ 2,5 mm²

Atom Ferrum N input’s specifications

Type of input / # of input	1-2
Analog (thermistor, photoresistor, etc.)	✖	✔
Digital (motion sensors, light level sensors, switches, buttons, etc.)	✔	✔
Interface (1-Wire sensors)	✔	✔

Atom 6U comparison:

Atom 6U model	IN	OUT	QUANTITIES AND TYPES OF OUTPUTS
Atom 6U Hydrogen	12	10	2 relays, 8 ports, i3 flex	5A 250V/30V DC See "Changeable modules"
Atom 6U Ferrum	12	10	2 relays 8 relays	5A 250V/30V DC 10A 250V AC
Atom 6U Argon	12	18	18 relays	5A 250V/30V DC
Atom 6U Neon	12	12	4 relays 8 dim	5A 250V/30V DC 0-48V DC 5A
Atom 6U Oxygen	22	17	12 relays 5 dim	5A 250V/30V DC 180-250V AC/ 150W
