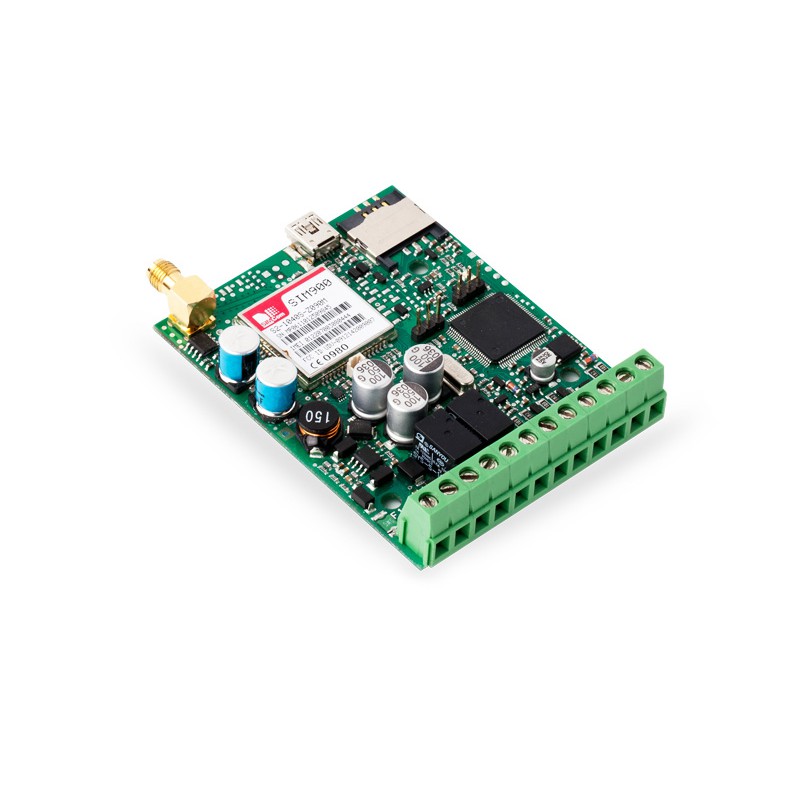

GSM dialler with 2 relay outputs – ESIM252

Eldes GSM System

Product reference: cegsm252

ESIM252 is an advanced GSM gateway and remote relay. This device can be connected to any panel with PGM outputs and electrical appliances, where inputs need to be triggered.

ESIM252 lets create distinct scenarios for each input, output, or command you send. Direct call and SMS from/to mobile phone, and transmits standard protocols to alarm receiving center.

At stores prices may vary

Price:

€112.99

€93.38 tax excl.

Favourite

Product information

5 users
5 inputs
2 relay outputs
Input matrix routing
Audio messages
Pulse counter
Configuration: USB, SMS, GPRS (Eldes configuration tool)
Control: SMS, Voice Call

GMS modem frequency	850/900/1800/1900 MHz
Power supply voltage	10-24V AC/DC
Inputs	5
Relay output	2
Output type	NO (relay)
C1 output maximum commutating values	1A/24V DC; 0,5A/125V AC
Event buffer	1000
Authorized users	5
Ways of configuration	SMS, USB, Internet
Operating temperature	-20…+55°C (-30…+55°C with limitations)
Dimensions	82×63×20mm
