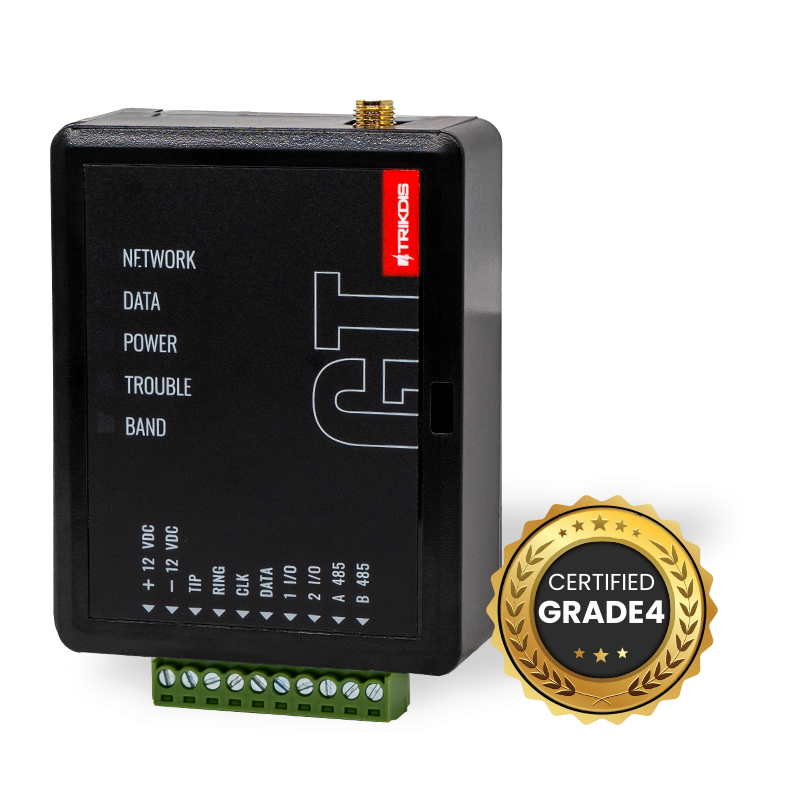

Cellular Communicator GT 4G with antenna

GSM Comunicators and Transmitters
Product reference: PCGT4G
  • Unifying TIP RING and Serial BUS. For Seamless Connectivity.
  • Savor the Best: G16 and G16T, United in GT
  • This module seamlessly combines the best features of the renowned G16 and G16T, culminating in a security solution that’s as robust as it is efficient.
  • Fast installation is at the heart of our design, ensuring you experience swift setup without compromising on security.
Read more
At stores prices may vary
Price:
€178.22
€147.29 tax excl.
Favourite

Product information

Features

Sends events to monitoring station receiver:

  • Sends events to TRIKDIS software or hardware receivers that work with any monitoring software.
  • Can send event messages to SIA DC-09 receivers.
  • Can send event messages to SUR-GARD receivers. The annex has a table for converting Contact ID codes to SIA codes.
  • Connection supervision by polling to IP receiver every 30 seconds (or by user defined period).
  • Backup channel, that will be used if connection with the primary channel is lost.
  • When Protegus 2 service is enabled, events are first delivered to CMS, and only then are sent to app users.

Works with Protegus app:

  • “Push” and special sound notifications informing about events.
  • Remote system Arm/Disarm.
  • Remote control of connected devices (lights, gates, ventilation systems, heating, sprinklers, etc.).
  • Different user rights for administrator, installer and user.

Notifies users:

  • Users can be notified about events with Protegus 2

Controllable outputs and inputs:

  • 2 double I/O terminals that can be set either as input (IN) or controllable output (OUT) terminals.
  • Outputs controlled by the Protegus 2
  • Add additional inputs and controllable outputs with iO-8

Quick setup:

  • Settings can be saved to file and quickly written to other communicators.
  • Two access levels for configuring the device for CMS administrator and for installer.
  • Remote configuration and firmware updates.

Specifications:

Parameter Description
Dual purpose terminals [IN/OUT] 2, can be set as either NC; NO; NC/EOL; NO/EOL; NC/DEOL; NO/DEOL (2,2 kΩ) type inputs or open collector (OC) type outputs with current up to 0,15 A, 30 VDC max.
Expandable with iO-8 expanders.
Modem EG915U-EU
(Europe)		 LTE FDD: B1/B3/B5/B7/B8/B20/B28
GSM: B2/B3/B5/B8
Modem EG915U-LA
(Latin America)		 LTE FDD: B2/B3/B4/B5/B7/B8/B28/B66
GSM: B2/B3/B5/B8
Modem BG95-M5 (Cat M1) LTE-FDD: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B27/B28/B66/B85
EGPRS: 850/900/1800/1900 MHz
Power supply voltage 10-18 V DC
Current consumption 125 mA
Transmission protocols TRK8, DC-09_2007, DC-09_2012, TL150
Message encryption AES 128
Changing settings With TrikdisConfig computer program remotely or locally via USB-С port
Operating environment Temperature from -10 °C to 50 °C, relative humidity – up to 80% at +20 °C
Communicator dimensions 92 x 62 x 26 mm
Weight 80 g

Features

Type GSM
