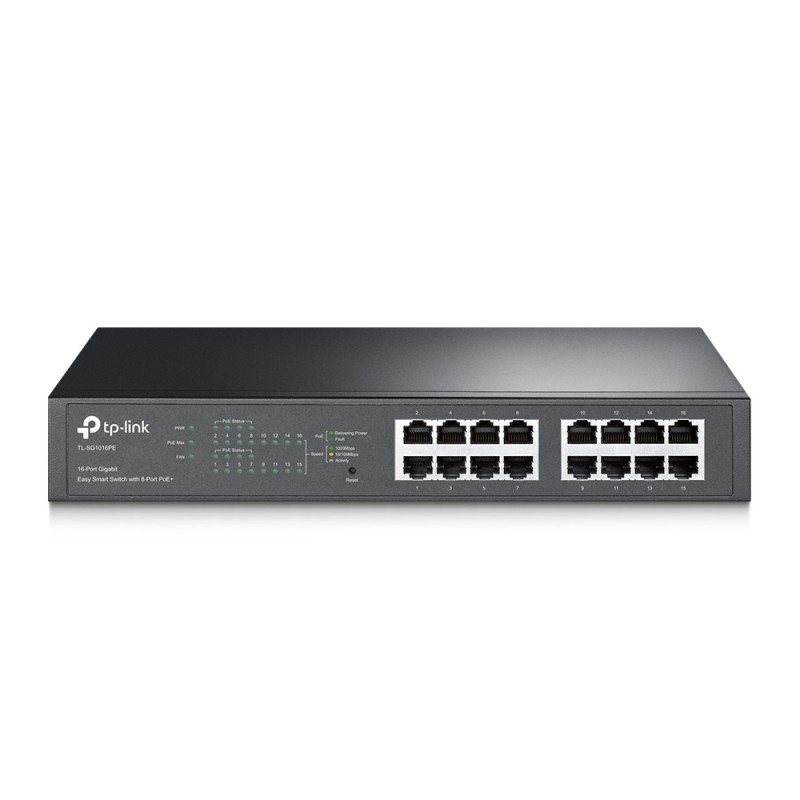

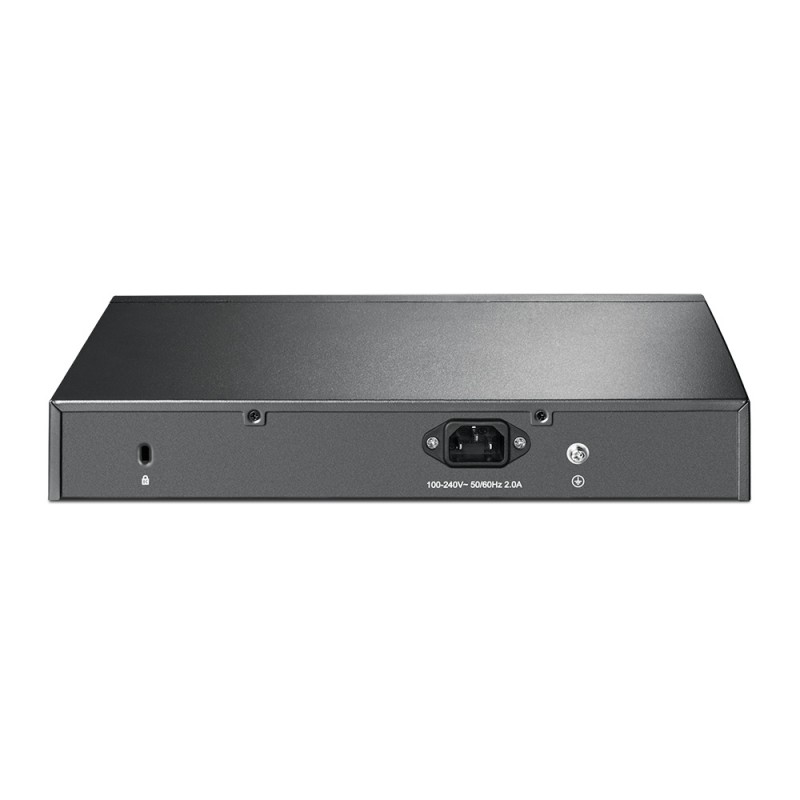

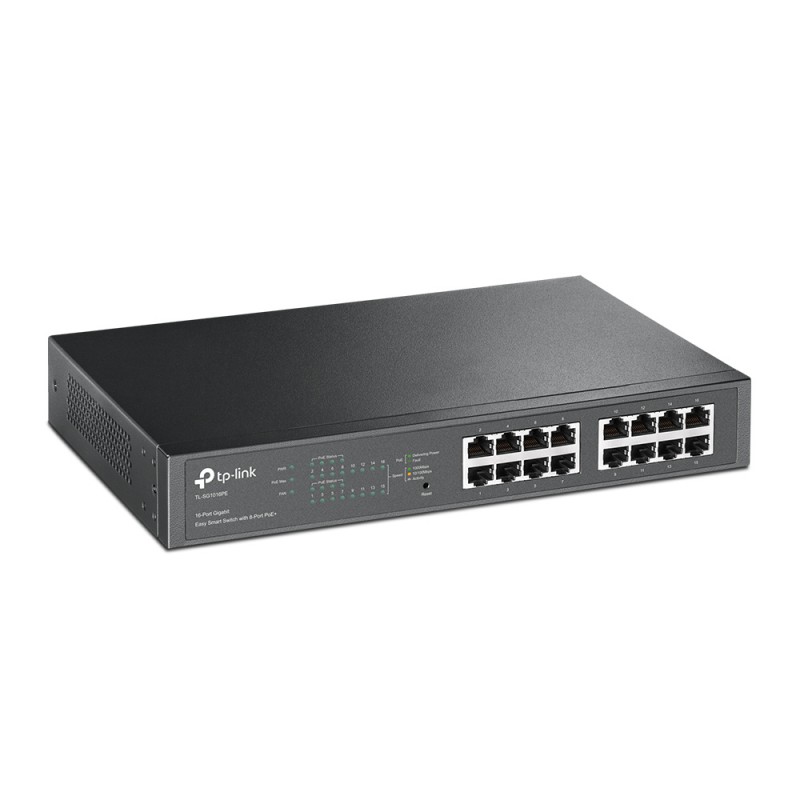

TL-SG1016PE 16-Port Gigabit Easy Smart PoE Switch with 8-Port PoE+

Switches

Product reference: KSTL-SG1016PE

The TL-SG1016PE is a 16-Port Gigabit Desktop/Rack mountable Switch with 8 ports supporting the PoE+ standard. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. With a total power budget of 110W, up to 30W per port, TL-SG1016PE can power more high-powered devices such as wireless Access Points (APs), IP Cameras or IP Phones. Moreover, with innovative energy-efficient technology, the TL-SG1016PE can save up to 75% of the power consumption, making it an eco-friendly solution for your business network.

At stores prices may vary

Price:

€198.43

€163.99 tax excl.

Favourite

Product information

TL-SG1016PE is easy to install and use. It requires no configuration or installation. With its Desktop/Rack mountable design, outstanding performance and quality, the TP-LINK TL-SG1016PE 16-Port Gigabit Desktop/Rack mountable Switch with 8-Port PoE is a great choice for expanding your home or office network.

16 10/100/1000Mbps RJ45 ports
Equipped with 8 PoE+ supported ports to transfer data and power over a single cable
With a total PoE power budget of 110W, up to 30W per port
Works with IEEE 802.3af/at compliant devices, expanding home and office networks
Simple network set-up on top of plug-and-play connectivity
Web-based user interface and management utility simplify configuration

Specifictions:

HARDWARE FEATURES
Standards and Protocols	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
Interface	16 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX
Network Media	10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity	1
Physical Security Lock	Yes
PoE Ports (RJ45)	Standard: 802.3 at (30W) PoE Ports: Port 1- Port 8 Total PoE Power Budget: 110W
Dimensions ( W x D x H )	294 × 180 × 44 mm
Mounting	13" and 19" 1U rack mountable
Max Power Consumption	14.7W (no PD load) 131.4W (with 110W PD load)
Max Heat Dissipation	50.2 BTU/h (no PD load) 448.4 BTU/h (with 110W PD load)
PERFORMANCE
Switching Capacity	32Gbps
Packet Forwarding Rate	23.8Mbps
MAC Address Table	8K
Packet Buffer Memory	4.1Mb
Jumbo Frame	9KB
SOFTWARE FEATURES
Quality of Service	Support Port-Based/802.1p/DSCP priority Support 4 priority queues Rate Limit Storm Control
L2 Features	IGMP Snooping V1/V2/V3 Link Aggregation Port Mirroring Cable Diagnostics Loop Prevention
VLAN	Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLAN
Management	Web-based GUI Easy Smart Configuration Utility POE Auto Recovery
Transmission Method	Store-And-Forward
OTHERS
Certification	FCC, RoHS
Environment	Operating Temperature: 0℃~40℃ Storage Temperature: -40℃~70℃ Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
