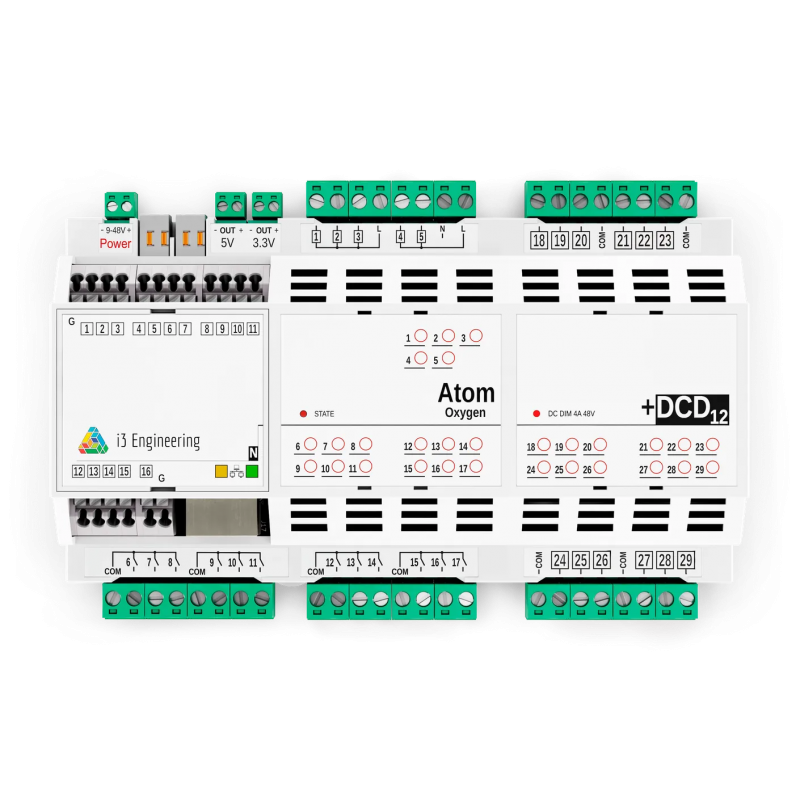

Atom 9U Oxygen N DCD12 Smart Home Controller 22IN/29OUT, 5/12DIMM

Контроллеры

Код товара: EP9UOxygenNDCD12

Atom Oxygen N DCD12 Smart Home Controller is a comprehensive solution that fits best for controlling different types of lighting devices - including AC and DC loads with possibility of dimming and changing colors. In addition to light control, it is perfect for controlling devices such as garage doors, electric locks, pumps, actuators and others. With Ehternet port.

Читать подробнее

Цена в физическом магазине может отличаться

Цена:

955,90 €

790,00 € без НДС

Сохранить

In manufacturer warehouse
Спросите

Информация о товаре

Atom 9U Oxygen N DCD12 Features:

CAN bus ensures synchronized operation of all Atom series devices.
Integrate 3rd party devices using RS-485 interface.
5V and 3.3V ports for sensors power supply.
16 multifunction input ports for temperature, air quality, water leakage sensors and switches connection.
Ethernet port for network connection possibility of remote control using the phone or voice assistants
14 x 5A relays for connection of electrical devices
5 x AC dimmers for controlling dimmable lamps
12 x dimming outputs built on MOSFET

Technical Specifications

Inputs
Input ports	16 digital (9 of them with a possibility to work in analog mode)
Voltage range for input ports	0-3,3V (IN1-IN11), 0-5V (IN12-IN16)
ADC bit rate for input ports in analog mode	12 bit
Outputs 1-5
AC switching voltage	180 - 250VAC
Number of AC ports x Max switching load per one output	5 / 150W
Max inrush current	40A
Dimming capabilities	Leading Edge
Outputs 6-17
Number of built-in normally opened relays / Active load	2 x 5А 250V AC
Max inrush current	30А
Outputs 18-29
Max AC switching voltage / DC switching voltage	4A / 48V
Max inrush current	40A
Dimming capabilities	PWM (29 KHz)
Interfaces
CAN	✔
RS-485 (Modbus protocol)	✔
Digital interfaces on input ports	1-wire
Ethernet 10/100 Mb	✔
WiFi 802.11 b/g/n 2,4 GHz	✔
Bluetooth v4.2 BLE	✔
Indication
Input and output ports status LEDs	✔
Ethernet port status LEDs	✔

Power supply

Device power supply voltage (with protection against reverse polarity connection) 9 - 48V DC
Output voltage to power the sensors 3.3V (200mА), 5V (200mА)
Consumption (max) 15W

Other

Mounting type DIN rail (EN 60715)
Width, DIN units 9 DIN module
HxWxL 59 х 88 х 161 mm
Type of connectors / Recommended wire cross section inputs clamps / 0.2 - 1.5 mm²
Type of connectors / Recommended wire cross section outputs w/ screws, detachable/ 2,5 mm²

Atom Oxygen N +DCD12 input’s specifications

Type of input / # of input	1-2	3-11	12-16
Analog (thermistor, photoresistor, etc.)	✖	✔	✖
Digital (motion sensors, light level sensors, switches, buttons, etc.)	✔	✔	✔
Interface (1-Wire sensors)	✔	✔	✖
