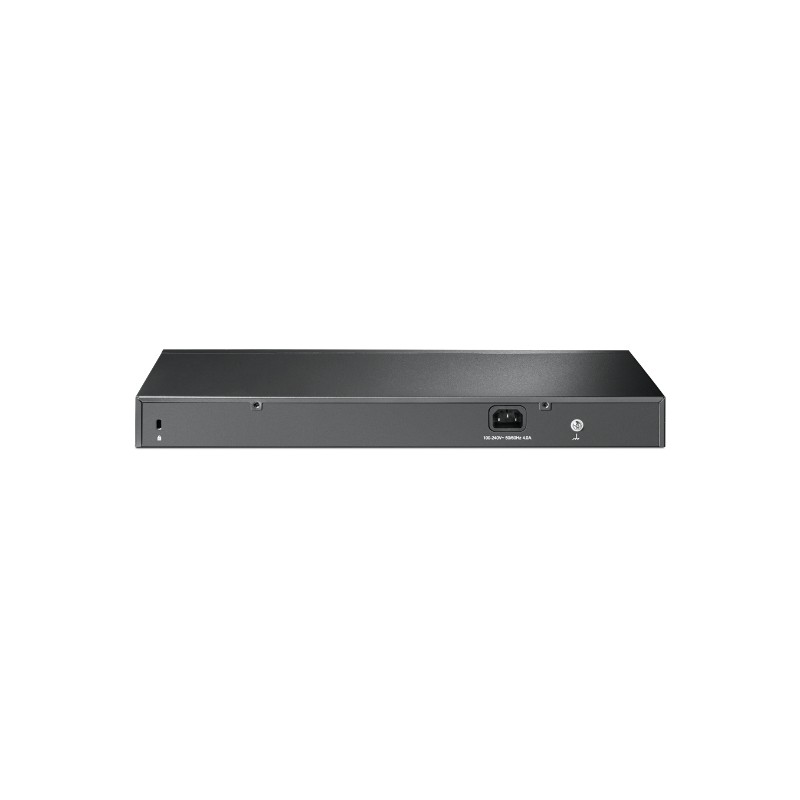

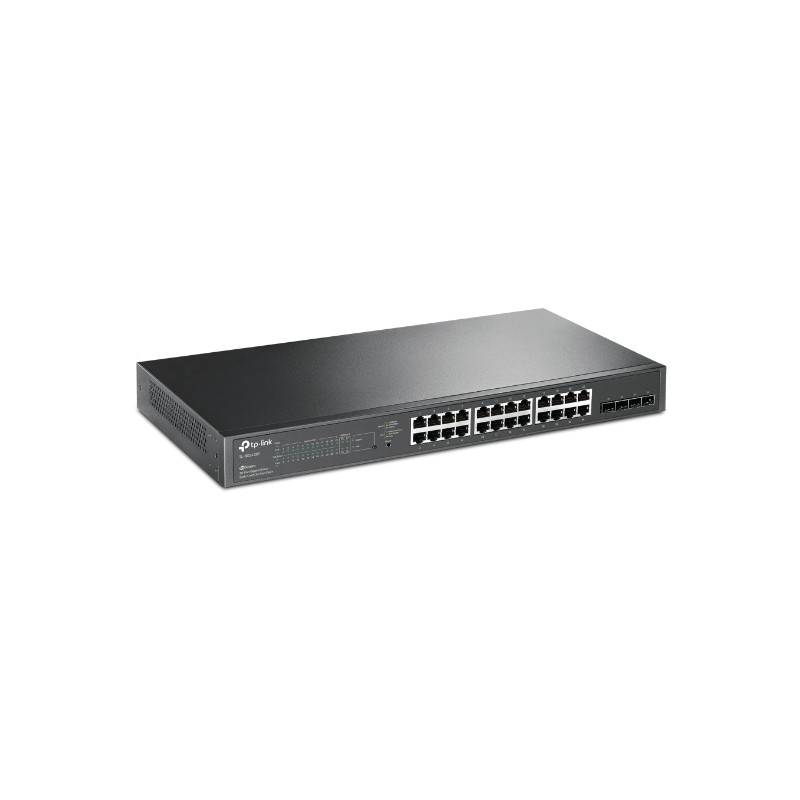

TL-SG2428P JetStream 28 prievadų, 24 PoE+, Gigabit Smart komutatorius

Komutatoriai

Prekės kodas: KSTLSG2428P

TP-Link Omada 28 prievadų Gigabit komutatorius su 24 PoE+ prievadais.
Visa PoE prievadų galia 250W;
24 x gigabit PoE+;
4 x gigabit SFP lizdai;
Integruojamas į Omada sistemą, centralizuotas valdymas per Cloud;
Maitinimas 100-240V AC, 50/60Hz;
Išmatavimai 440 × 220 × 44 mm;
19" 1U, montavimas į serverines spintas;
MAC adresų talpa 8K.

Skaityti daugiau

Kaina fizinėje parduotuvėje gali skirtis

Kaina:

316,29 €

261,40 € be PVM

Išsaugoti

Gamintojo sandėlyje
Klauskite

Prekės informacija

TL-SG2428P JetStream 28 prievadų, 24 PoE+, Gigabit Smart komutatorius.

Pagrindinės savybės:

250W bendra PoE galia: 24 × 802.3at/af suderinami PoE+ prievadai, kurių bendra galia 250 W*.
Gigabit prievadai: 24 × gigabit PoE+ prievadai ir 4 × gigabit SFP lizdai užtikrina didelės spartos ryšį.
Integruotas į Omada SDN: „Zero-Touch Provisioning“, centralizuotas valdymas per Cloud ir išmanusis stebėjimas.
Centralizuotas valdymas: prieiga prie Cloud ir „Omada“ programa ypač patogiam ir paprastam valdymui.
Statinis maršruto parinkimas: padeda nukreipti vidinį srautą, kad būtų galima efektyviau naudoti tinklo išteklius.

Techninės specifikacijos:

HARDWARE FEATURES
Standards and Protocols	IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x
Interface	• 24× 10/100/1000 Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) • 4× Gigabit SFP Slots
Network Media	• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) • 1000BASE-X: MMF, SMF
Fan Quantity	2
Power Supply	100-240V AC, 50/60Hz
PoE+ Ports(RJ45)	• Standard: 802.3at/af compliant • PoE+ Ports: 24 Ports • Power Supply: 250 W
PoE Ports (RJ45)	• Standard: 802.3at/af compliant • PoE+ Ports: 24 Ports • PoE Power Budget: 250 W
Dimensions ( W x D x H )	440 × 220 × 44 mm
Mounting	19" 1U rack mountable
Max Power Consumption	• 32.1 W (with no power device connected) • 308.6 W (with 250W power device connected)
Max Heat Dissipation	• 109.5 BTU/h (with no PD connected) • 1,052.9 BTU/h (with 250 W PD connected)
PERFORMANCE
Switching Capacity	56 Gbps
Bandwidth/Backplane	56 Gbps
Packet Forwarding Rate	41.7 Mpps
MAC Address Table	8K
Packet Buffer Memory	4.1 Mbit
Jumbo Frame	9 KB
SOFTWARE FEATURES
Quality of Service	• 802.1p CoS/DSCP priority • 8 priority queues • Priority Schedule Mode - SP (Strict Priority) - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port/Flow based Rating Limit • Smoother Performance • Storm Control - Multiple Control Modes(kbps/ratio) - Broadcast/Multicast/Unknown-Unicast Control
L2 and L2+ Features	• 16 IP Interfaces - Support IPv4/IPv6 Interface • Static Routing - 32 IPv4/IPv6 Static Routes • DHCP Server • DHCP Relay - DHCP Interface Relay - DHCP VLAN Relay • DHCP L2 Relay • Static ARP • Proxy ARP • Gratuitous ARP • Link Aggregation - Static link aggregation - 802.3ad LACP - Up to 8 aggregation groups and up to 8 ports per group • Spanning Tree Protocol - 802.1D STP - 802.1w RSTP - 802.1s MSTP - STP Security: TC Protect, BPDU Filter/Protect, Root Protect • Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - CPU Mirroring - One-to-One - Many-to-One - Flow-Based - Ingress/Egress/Both • Device Link Detect Protocol (DLDP) • 802.1ab LLDP/ LLDP-MED
Advanced Features	• Automatic Device Discovery • Batch Configuration • Batch Firmware Upgrading • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule
VLAN	• VLAN Group - Max. 4K VLAN Groups • 802.1Q tag VLAN • MAC VLAN • Protocol VLAN • GVRP • Voice VLAN
Access Control List	• Support up to 230 entries • Time-Range - Time Slice - Week Time-Range - Absolute Time-Range - Holiday • Time-based ACL • MAC ACL - Source MAC - Destination MAC - VLAN ID - User Priority - Ether Type • IP ACL - Source IP - Destination IP - IP Protocol - TCP Flag - TCP/UDP Source Port - TCP/UDP Destination Port - DSCP/IP TOS • IPv6 ACL • Combined ACL • Rule Operation - Permit/Deny • Policy Action - Mirror - Rate Limit - Redirect - QoS Remark • ACL Rules Binding - Port Binding - VLAN Binding • Actions for flows - Mirror (to supported interface) - Redirect (to supported interface) - Rate Limit - QoS Remark
Security	• AAA • 802.1X - Port based authentication - MAC (Host) based authentication - Authentication Method includes PAP/EAP-MD5 - MAB - Guest VLAN - Support Radius authentication and accountability • IP/IPv6-MAC Binding - 512 Binding Entries - DHCP Snooping - DHCPv6 Snooping - ARP Inspection - ND Detection • IP Source Guard - 253 Entries - Source IP+Source MAC • IPv6 Source Guard - 183 Entries - Source IPv6 Address+Source MAC • DoS Defend • Static/Dynamic/Permanent Port Security - Up to 64 MAC addresses per port • Broadcast/Multicast/Unicast Storm Control - kbps/ratio control mode • Port Isolation • Secure web management through HTTPS with SSLv3/TLS 1.2 • Secure Command Line Interface (CLI) management with SSHv1/SSHv2 • IP/Port/MAC based access control
IPv6	• IPv6 Static Routing and ACL • IPv6 Dual IPv4/IPv6 • IPv6 Interface • Multicast Listener Discovery (MLD) Snooping • IPv6 neighbor discovery (ND) • Path maximum transmission unit (MTU) discovery • Internet Control Message Protocol (ICMP) version 6 • TCPv6/UDPv6 • IPv6 applications - DHCPv6 Client - Ping6 - Tracert6 - Telnet(v6) - IPv6 SNMP - IPv6 SSH - IPv6 SSL - Http/Https - IPv6 TFTP
MIBs	• MIB II (RFC1213) • Bridge MIB (RFC1493) • P/Q-Bridge MIB (RFC2674) • Radius Accounting Client MIB (RFC2620) • Radius Authentication Client MIB (RFC2618) • Remote Ping, Traceroute MIB (RFC2925) • Support TP-Link private MIBs • RMON MIB(RFC1757, rmon 1,2,3,9)
MANAGEMENT
Omada App	Yes, through • Omada Cloud-Based Controller (Not Supported by TL-SG2210P v4) • OC300 • OC200 • Omada Software Controller
Centralized Management	• Omada Cloud-Based Controller (Not Supported by TL-SG2210P v4) • Omada Hardware Controller OC300 • Omada Hardware Controller OC200 • Omada Software Controller
Cloud Access	Yes, through • Omada Cloud-Based Controller (Not Supported by TL-SG2210P v4) • OC300 • OC200 • Omada Software Controller
Zero-Touch Provisioning	Yes. Requiring the use of Omada Cloud-Based Controller (Supported by TL-SG2210P v3.2, v5 and above, while is not supported by TL-SG2210P v4)
Management Features	• Web-based GUI • Command Line Interface (CLI) through telnet • SNMPv1/v2c/v3 • SNMP Trap/Inform • RMON (1,2,3,9 groups) • SDM Template • DHCP/BOOTP Client • Dual Image, Dual Configuration • CPU Monitoring • Cable Diagnostics • EEE • SNTP • System Log
OTHERS
Certification	CE, FCC, RoHS
Package Contents	TL-SG2428P • Power Cord • Installation Guide • Rackmount Kit • Rubber Feet
System Requirements	Microsoft® Windows® XP, Vista™ or Windows 7, Windows 8, Windows 10, MAC® OS, NetWare®, UNIX® or Linux.
Environment	• Operating Temperature: 0–50 ℃ (32–122 ℉); • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing

Charakteristika

Duomenų pralaidumas	10/100/1000
SFP prievadai	4 SFP
Prievadų skaičius	28
PoE prievadų skaičius	24
Komutatoriaus savybės	Gigabit
Komutatoriaus savybės	L3/L2+ valdomi
Komutatoriaus savybės	PoE+
Komutatoriaus savybės	Montuojamas į spintą

Gamintojas

TP-Link produktai skirti tiems, kurie vertina paprastą tinklo sprendimų valdymą ir kokybę. Asortimente rasite įrangą tiek namų vartotojams, tiek profesionaliems tinklų administratoriams: nuo maršrutizatorių ir komutatorių iki prieigos taškų bei tinklo valdiklių. Dėl plataus pasirinkimo ir prieinamos kainos TP-Link yra vienas iš lyderių tinklo įrangos rinkoje.
