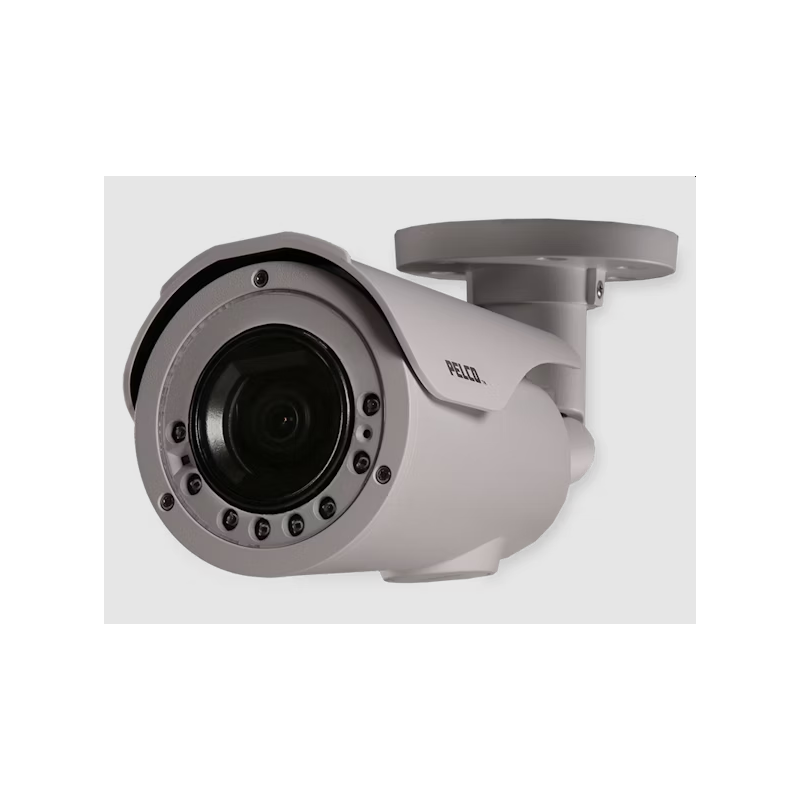

PELCO kamera IBE539-1ER, 5Mp, 4-9mm, Sarix® ENHANCED serija

Prekės informacija

Galingos, Sarix® ENHANCED serijos kameros sujungia populiariausias Sarix technologijos savybes ir funkcionalumą daugybei panaudojimo būtų tiek vidaus patalpose, tiek lauko erdvėse. Šias kameras galite naudoti ir pritaikyti beveik bet kokioms sąlygoms, apšvietimo lygiui, aplinkai. Ypač išvystytas spalvų atkūrimas, true WDR technologija, prisitaikantis IR pašvietimas. Dėl atsparumo klasių  kameros patikimai tarnauja net ir ypač nepalankiomis sąlygomis. Palaikoma pažangi vaizdo analitika.

• „SureVision“ technologija (pažangus prasto apšvietimo ir WDR našumas vienu metu, „Anti-Bloom“ technologija, 3D triukšmo filtravimas ir patobulintas tonų atvaizdavimas)
• H.265, H.264 ir MJPEG vaizdo kodavimas su Pelco Smart Compression
• 5MP raiška
• Elektroninis vaizdo stabilizavimas
• Iki 30 kadrų per sekundę (fps)
• Iki 120 dB platus dinaminis diapazonas
• Maitinimas tarp PoE+ iki 12 VDC / 24 VAC
• IP66, IP67, IP68, IP69K, 4X tipas
• IK10 (20 džaulių) atsparumas vandalizmui
• Integruotas „Pelco Enhanced Analytics“ rinkinys
• Prisitaikantis IR apšvietimas 850 nm iki 50 metrų
• Vietinės talpyklos palaikymas su Micro SD lizdu SDHC/SDXC kortelei
• Suderinamas su Pelco ir trečiųjų šalių vaizdo sistemomis
• Atitinka ONVIF profilį S, profilį G, profilį M ir profilį T

CAMERA

• Imaging Device: 1/1.8-inch
• Imager Type: CMOS
• Imager Readout: Progressive scan
• Highest Resolution 5 MP 2592 x 1944
• Signal-to-Noise Ratio: >60 dB
• Electronic Shutter Range: 1/10,000 sec to 1sec
• Wide Dynamic Range: Up to 120 dB (5 MP and 4 K models)
• White Balance Range: 2,500° to 10,000°K; Selectable Auto/ Manual/ATW
• Day/Night Capabilities Mechanical IR cut filter (ON/OFF/AUTO), with different set points on lux
• Adaptive IR Illumination 850nm wavelength, maximum distance of up to 50 meters.

LENS

• Lens Type: Built-in; varifocal
• Focal Length: f/1.5, 4 ~ 9 mm
• Focus: Autofocus, motorized
• Zoom: Remote motorized
• Auto Iris Type: P-Iris
• Field of View in Degrees:
  • Diagonal 141.8° ~ 58.4°
  • Horizontal 116.9° ~ 50.8°
  • Vertical 60.7° ~ 28.5°

AUDIO

• Streaming: Bidirectional: full or half duplex
• Input: Line level, 3K ohm differential with/1Vp-p maximum signal
• Output: Line level, 600 ohm differential with/1Vp-p
• Encoding: G.711-Alaw/G711-Ulaw

GENERAL

Pan/Tilt Adjustment: Manual

• Pan 0° ~ 360°
• Tilt 7.5° ~ -90°
• Rotation 0° ~ 360°

Construction: Aluminum with polycarbonate window

ENVIRONMENTAL

• Operating Temperature –50° to 60°C
• Start-up Temperature –40°C
• Storage Temperature –40° to 60°C
• Operating Humidity: 10 to 100%, RH condensing
• Storage Humidity 20 to 80%, RH noncondensing
• Impact Resistance: IK10 (20 J)
• Ingress Protection: IP66, IP67, IP68, IP69K, Type 4X
• Shock and Vibration Resistance: Tested in accordance to EN 50155 (EN 61373, Category 1, Class B); IEC/EN 60068:2-6 and 2-27

ELECTRICAL

Network Port: RJ-45 connector for 100Base-TX*/ 1000Base-T, Automatic MDI/MDI-X (*Some combinations of high resolution, frame rate, and high numbers of unicast streams, may lead to less desirable results at 100Base-TX.)

Input Power: PoE+ (IEEE 802.3at, Class 4), 24 VAC (18 ~32 VAC), 12 VDC ±10% (Environmental models)

Power Consumption:

• 12 VDC: 8.1 W typical, 20.5 W maximum
• 24 VAC: 7.4 W typical, 18.1 W maximum
• PoE+: 7.6 W typical, 16.8 W maximum

Local Storage: Micro SD, SDHC, SDXC compatible; Up to 2 TB addressable (256 GB testable)

Alarm: Detects open or closed alarm state

Input: Quantity 1, Normally Open, Normally Closed, Supervised, 3.5 VDC maximum, 35 mA maximum

Output: Quantity 1, ±32 VDC maximum, 150 mA maximum

NETWORK

• Supported Protocols: TCP/IP, UDP/IP (Unicast, Multicast IGMP), UPnP, DNS, DHCP, RTP, RTSP, NTP, IPv4, IPv6, SNMP v2c/v3, QoS, HTTP, HTTPS, SSL, SMTP, FTP, 802.1x (EAP), and NTCIP 1205, IGMP, TLS/TTLS
• Users:
  • Unicast Two guaranteed (up to 20 depending on the resolution settings)
  • Multicast: Unlimited
• Security Access: Password protected, HTTP, IEEE 802.1X, digest authentication, IP filtering
• Software Interface: Web browser view and setup

MINIMUM SYSTEM REQUIREMENTS

• Processor: Intel® Core™ i3 processor, 2.4 GHz
• Operating System: Microsoft® Windows® 7 (32- and 64-bit), or DirectX®11, Windows XP Service Pack 3 with DirectX 9.0c; or Mac® OS X 10.4 (or later)
• Memory: 4 GB RAM
• Network: Interface 1 gigabit (or greater)
• Monitor: Minimum of 1024 x 768 resolution, 16- or 32-bit pixel color resolution
• Web Browser: Internet Explorer® 10 (or later), Google Chrome™ (51 or later), Microsoft Edge, or Mozilla® Firefox® 3.5 (or later)

INTEGRATION

• Pelco System Integration: VideoXpert; Endura 2.0 (or later); Digital Sentry 7.3 (or later)
• Open API: Pelco API or ONVIF Profile S, Profile G, Profile M, Profile T
• Mobile Application: Pelco Mobile Application
• Camera Discovery: VxToolbox
• Firmware Upgrade: Web UI or VxToolbox
• Multilingual User Interface: English, French, Italian, German, Spanish, Korean, Portuguese, Russian, Simplified Chinese, Turkish

VIDEO

• Video Streams: Up to three simultaneous streams, the second stream and third stream are variable based on the setup of the primary stream
• Resolution: 5 MP 2592 x 1944 to 512 x 384;
• Maximum Frame Rate: Up to 30 fps at full resolution with WDR
• Video Encoding H.265, H.264 Main/High, MJPEG
• Bit Rate Control: Constrained variable bit rate (CVBR) and constant bit rate (CBR)
• Orientation Modes: Electronic image rotation 90, 180, and 270 degrees (Corridor Mode)
• Video Snapshot: JPEG capture at the same resolution as the highest stream configured
• Window Blanking: 16 configurable Windows
• Electronic Image Stabilization: Yes (ON / OFF selectable)
• Video Overlay: Camera name, time, date, and customizable text with multiple supported languages. Embedding of custom images and logos supported.
• Flicker Correction: Selectable Auto On/Off, 50 Hz or 60 Hz modes
