PREVIDIA centralės ir jų priedai

Prekės kodas: PSFPMCPU

Centralės/kartotuvo modulis.
Viena centralė gali talpinti daugiausia 2 šio tipo modulius.

Skaityti daugiau

Gamintojo sandėlyje
Klauskite

Prekės informacija

FPMCPU

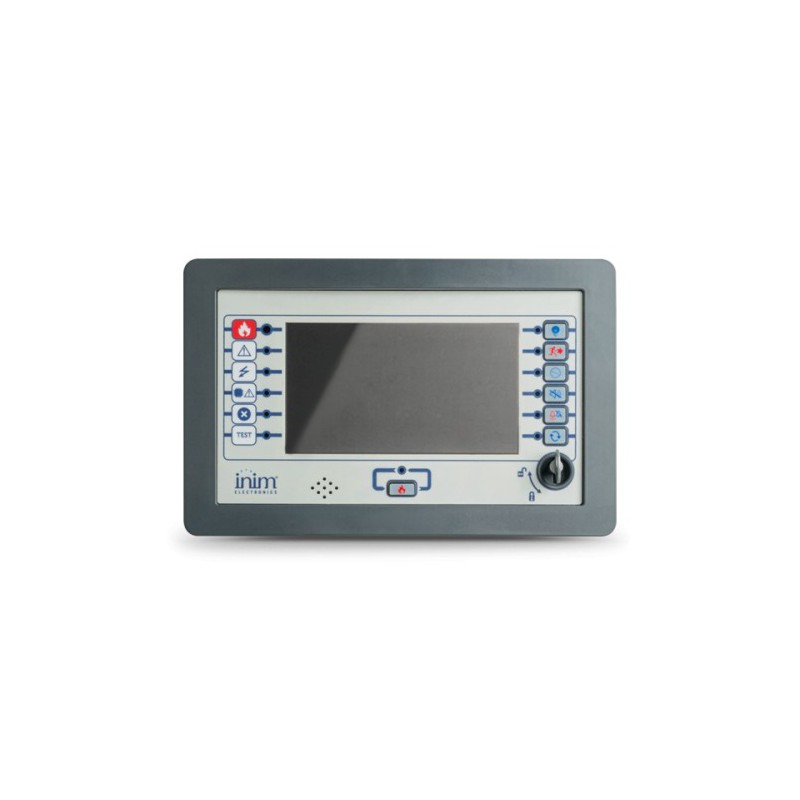

Main control unit for Previdia Max control panels

To be connected to the CAN drive bar inside the metal cabinets and equipped with a graphic colour touchscreen.

This device manages the control panel and co-ordinates the various function modules.

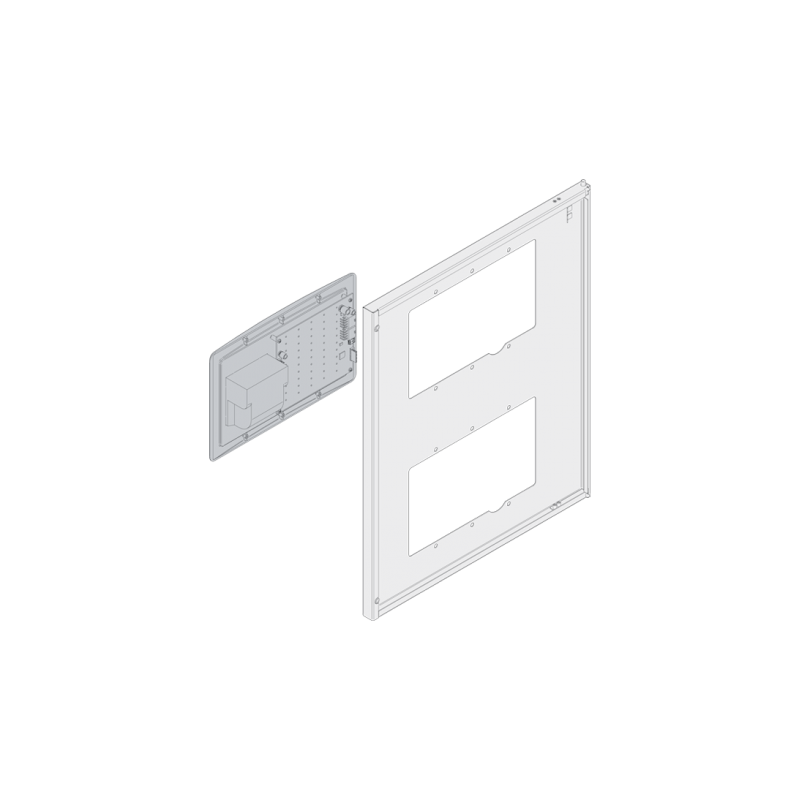

A single Previdia Max control panel can house 2 of these units (a main unit and a secondary unit as backup). Mounts to the frontplate and, if housed in the upper opening, connects to the CAN drive bar. If housed in the lower opening, it connects to the FPM module in the upper opening.

Provides the following connections

Ethernet connection for networking and remote control.
RS485 channel for repeaters (FPMCPU used as remote keypads- max. 14).
RS485 channel for interfacing with Building Management Software, supports MODBUS RTU protocol.
Mini USB Port for configuration via PC.
RS232 Port for configuration via PC.

Order codes

FPMCPU main unit module

PRREP enclosure for mounting FPMCPU module as remote repeater

HARDWARE CHARACTERISTICS

Double CPUs, a main CPU and a emergency backup that will take over in the event of fault on the main CPU.
7’’ touch screen, 65000 colours
6 status LEDs
6 LED and function buttons
LED and button for multiple alarm management
Scandinavian key to access level 2 (EN54 part 2)
Ethernet port
RS232 port
Mini USB port
RS485 port for the connection of up to 14 repeater panels
RS485 port for ModBus RTU
Connector for the connection to other frontplate module
Housing for μSD card

TECHNICAL SPECIFICATIONS

Customization of user interface, icons, buttons etc.
Connection over RS485 or TCP/IP (if set as repeater)
Possibility to operate in three different modes: main control panel unit, backup unit,
remote repeater user-interface
Event visualization filter
Customization of event priority and visualization
Power voltage: 19-30Vdc
Consumption @ 27.6V: stand-by 120mA, max. 140mA
Maximum current on RS485-REPEATER @ 27.6V 1A
Maximum current on RS485-BMS @27.6V 1A

Charakteristika

Centralės tipas

Modulinė
